IS 5000Z (5901074) - Ferris IS5000Z Series 61" Zero-Turn Mower, 31hp Caterpillar Diesel (SN: 1225 & Below) Fuel Supply Hose & Tank Replacement Parts Group - Diesel Parts Diagram

IS5000Z Series 61" Zero-Turn Mower, 31hp Caterpillar Diesel

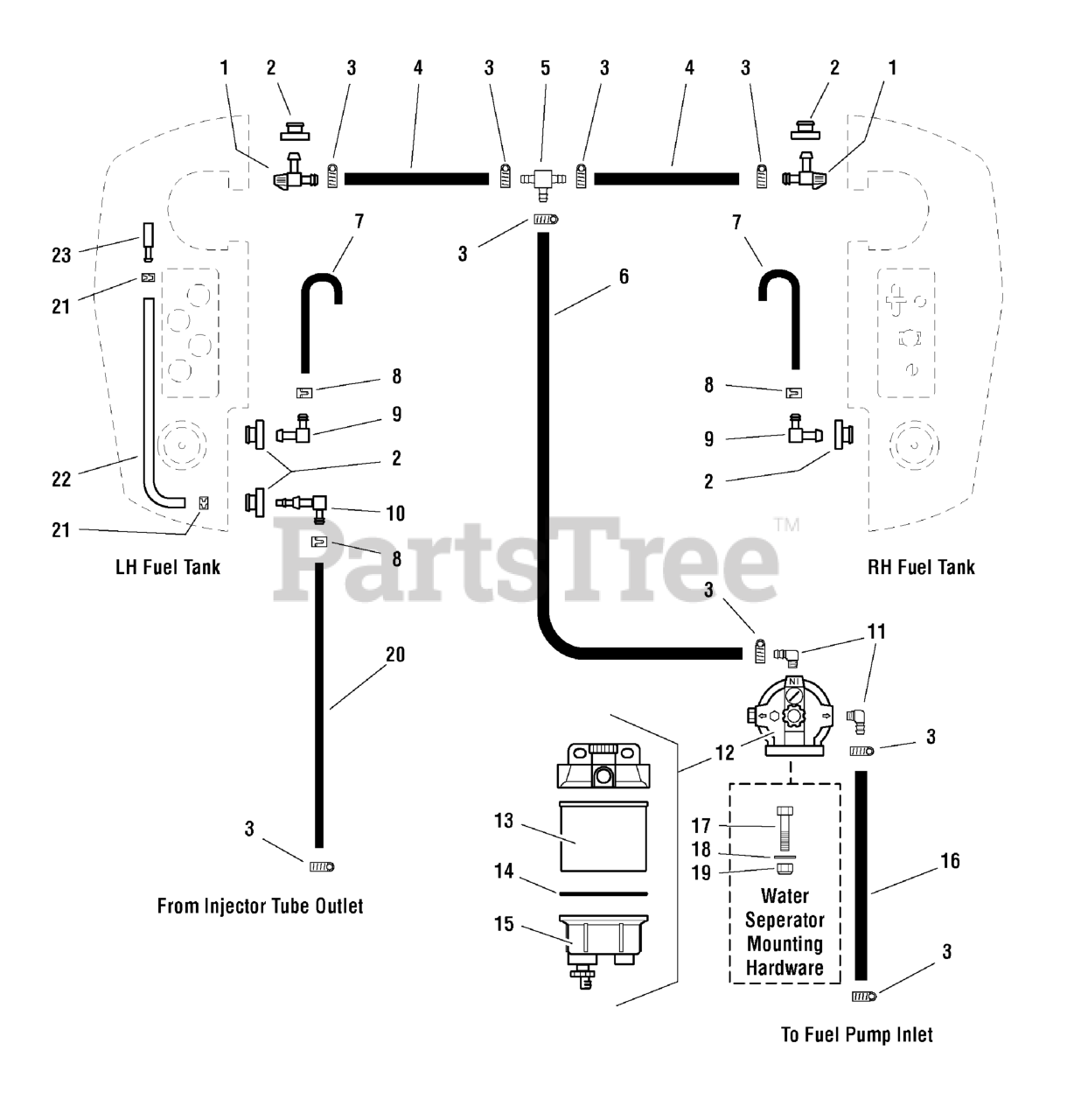

Fuel Supply Hose & Tank Replacement Parts Group - Diesel Parts Diagram

  • Title

1

Ferris 5023060

VALVE, Fuel Shut-Off

$49.99

$

Usually ships in 2-12 days

0

2

Ferris 1726400

BUSHING-FUEL TANK RED RUBBER
(Superseded to 1726400FS)

$11.99

$

In Stock, only 4 left!

0

3

Ferris 5022922

CLAMP, #4 Hose
(Superseded to 5022922SM)

$3.49

$

In Stock, only 1 left!

0

4

Ferris 5050919X36

HOSE, 36"
(Superseded to 5050919X36FS)

$16.99

$

Usually ships in 2-12 days

0

5

Ferris 5022920

FITTING, TEE, 3/8" Hose
(Superseded to 5022920SM)

$18.99

$

Usually ships in 2-12 days

0

6

Ferris 5050919X34

HOSE, 34"
(Superseded to 5050919X34FS)

$15.99

$

Usually ships in 2-12 days

0

7

Ferris 5050831X20

1/4" Fuel Line, 20" Long
(Superseded to 5050831X20YP)

$7.99

$

Usually ships in 2-12 days

0

8

Ferris 93807

CLAMP, Hose
(Superseded to 691038)

$3.99

$

In Stock, Qty 16

0

9

Ferris 1674231

ELBOW FITTING
(Superseded to 1674231SM)

$

$

Not available

10

SEE REF # 22

$

$

Not available

11

Ferris 5022708

FITTING, 1/4" NPT, 90 Deg.

$10.99

$

Usually ships in 2-12 days

0

12

Ferris 5022926

FILTER/WATER SEPARATOR ASSEMBLY, Complete

Note: (Includes Ref No. 13 - 15)

$469.99

$

Usually ships in 2-12 days

0

13

Ferris 5022926X1

FUEL FILTER

$111.99

$

In Stock, only 2 left!

0

14

Ferris 5022926X2

O-RING SEAL

$36.99

$

In Stock, only 2 left!

0

15

Ferris 5022926X3

BOWL

$257.99

$

Usually ships in 2-12 days

0

16

Ferris 5050831X48

1/4" Fuel Line, 48" Long

$16.99

$

Usually ships in 2-12 days

0

17

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

18

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

19

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

20

Ferris 5050919X63

HOSE, 63"

$

$

Currently unavailable

21

SEE REF # 22

$

$

Not available

22

Ferris 5101158

HOSE ASSEMBLY

$13.99

$

Usually ships in 2-12 days

0

23

SEE REF # 22

$

$

Not available
