IS 5000Z (5901073) - Ferris IS5000Z Series Zero-Turn Mower, 34hp Vanguard Pump Drive Group - Gas Parts Diagram

IS5000Z Series Zero-Turn Mower, 34hp Vanguard

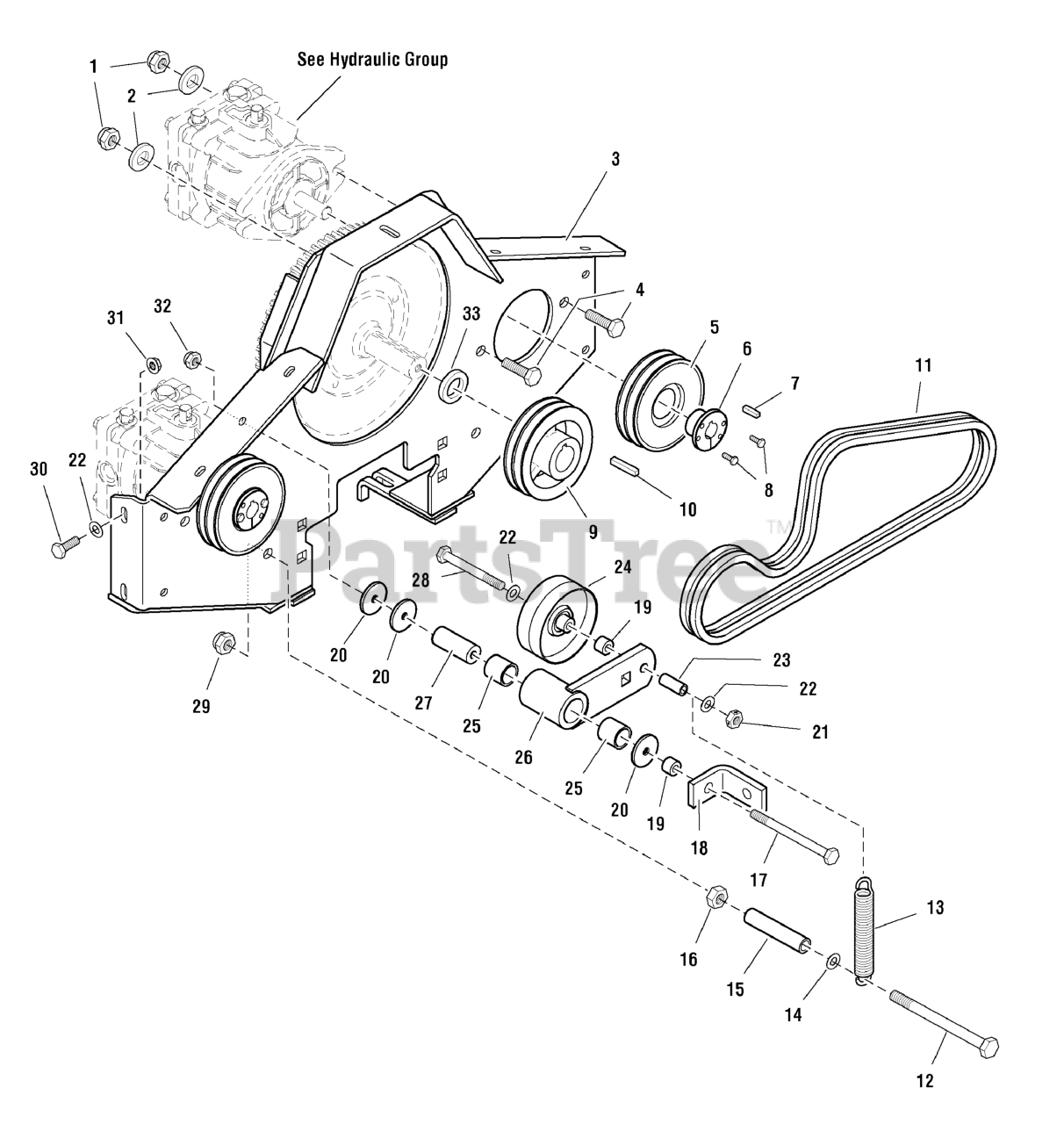

Pump Drive Group - Gas Parts Diagram

  • Title

1

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

In Stock, only 2 left!

0

2

Ferris 5044913

WASHER, Frame Retaining
(Superseded to 5044913SM)

$6.99

$

In Stock, Qty 13

0

3

Ferris 5047361B

PUMP MOUNT PLATE

$826.99

$

Usually ships in 2-12 days

0

4

Ferris 5025018X14

BOLT, 1/2-20 X 1-3/4" GD8 CZ
(Superseded to 5025018X14FS)

$2.99

$

Usually ships in 2-12 days

0

5

Ferris 5022382

PULLEY, Pump Drive
(Superseded to 5022382FS)

$136.99

$

In Stock, only 1 left!

0

6

Ferris 5022383

HUB, Taper Lock
(Superseded to 5022383YP)

$27.99

$

Usually ships in 2-12 days

0

7

Ferris 5023254

KEY, 5MM SQ. x 25MM w/ Round Ends
(Superseded to 5023254SM)

$4.49

$

In Stock, Qty 8

0

8

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

9

Ferris 5022380

PULLEY, Pump Drive

$148.99

$

In Stock, only 2 left!

0

10

Ferris 5050407X2

KEY, 1/4 SQ. X 3
(Superseded to 5050407X24YP)

$6.49

$

Usually ships in 2-12 days

0

11

Ferris 5022314

BELT, Pump Drive (set of 2)
(Superseded to 5100555SM)

$98.99

$

In Stock, Qty 14

0

12

Ferris 5025017X40

BOLT, 1/2-13 x 5
(Superseded to 5025017X40SM)

$6.49

$

In Stock, only 1 left!

0

13

Ferris 5022847

SPRING, Extension, Swivel End
(Superseded to 5022847SM)

$34.99

$

In Stock, Qty 7

0

14

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

15

Ferris 5050857X3P25

HOSE, 3-1/4

$5.49

$

Usually ships in 2-12 days

0

16

Ferris 5025301

NUT, 1/2-13 Hex Jam
(Superseded to 5025301SM)

$3.49

$

In Stock, only 1 left!

0

17

Ferris 5025013X36

BOLT, 3/8-16 X 4-1/2" GD5 CZ
(Superseded to 5025013X36YP)

$5.99

$

Usually ships in 2-12 days

0

18

Ferris 5042142B

SPRING ANCHOR
(Superseded to 5042142BFS)

$12.99

$

Usually ships in 2-12 days

0

19

Ferris 5044933

SPACER, .39 x .75 x .38
(Superseded to 5044933SM)

$4.99

$

In Stock, only 2 left!

0

20

Ferris 5025305

WASHER, 3/8 x 1-3/4
(Superseded to 5025305SM)

$3.99

$

In Stock, only 2 left!

0

21

Ferris 5025100

NUT, 3/8-16 Hex Side Lock
(Superseded to 5025100SM)

$3.49

$

In Stock, Qty 20+

0

22

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

23

Ferris 5047199

SPACER, .38 x .50 x .75
(Superseded to 5047199FS)

$7.49

$

Usually ships in 2-12 days

0

24

Ferris 5022373

PULLEY, Idler, Flat
(Superseded to 5022373YP)

$66.99

$

Usually ships in 2-12 days

0

25

Ferris 5022157

BUSHING, Brass
(Superseded to 5022157SM)

$12.99

$

In Stock, only 2 left!

0

26

Ferris 5046574B

PUMP DRIVE IDLER ARM

$87.99

$

Usually ships in 2-12 days

0

27

Ferris 5102004

SPACER, .39 X 1.00 X 2.55, SS
(Superseded to 5102004YP)

$27.99

$

In Stock, only 1 left!

0

28

Ferris 5025013X24

BOLT, 3/8-16 X 3" GD5 CZ
(Superseded to 5025013X24SM)

$3.99

$

In Stock, only 1 left!

0

29

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

30

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

31

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

32

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

33

Ferris 5046904

SPACER, 1.13 x 1.75 x .25
(Superseded to 5046904YP)

$17.99

$

In Stock, only 1 left!

0
