IS 5000Z (5901073) - Ferris IS5000Z Series Zero-Turn Mower, 34hp Vanguard PTO Clutch Drive Group Parts Diagram

IS5000Z Series Zero-Turn Mower, 34hp Vanguard

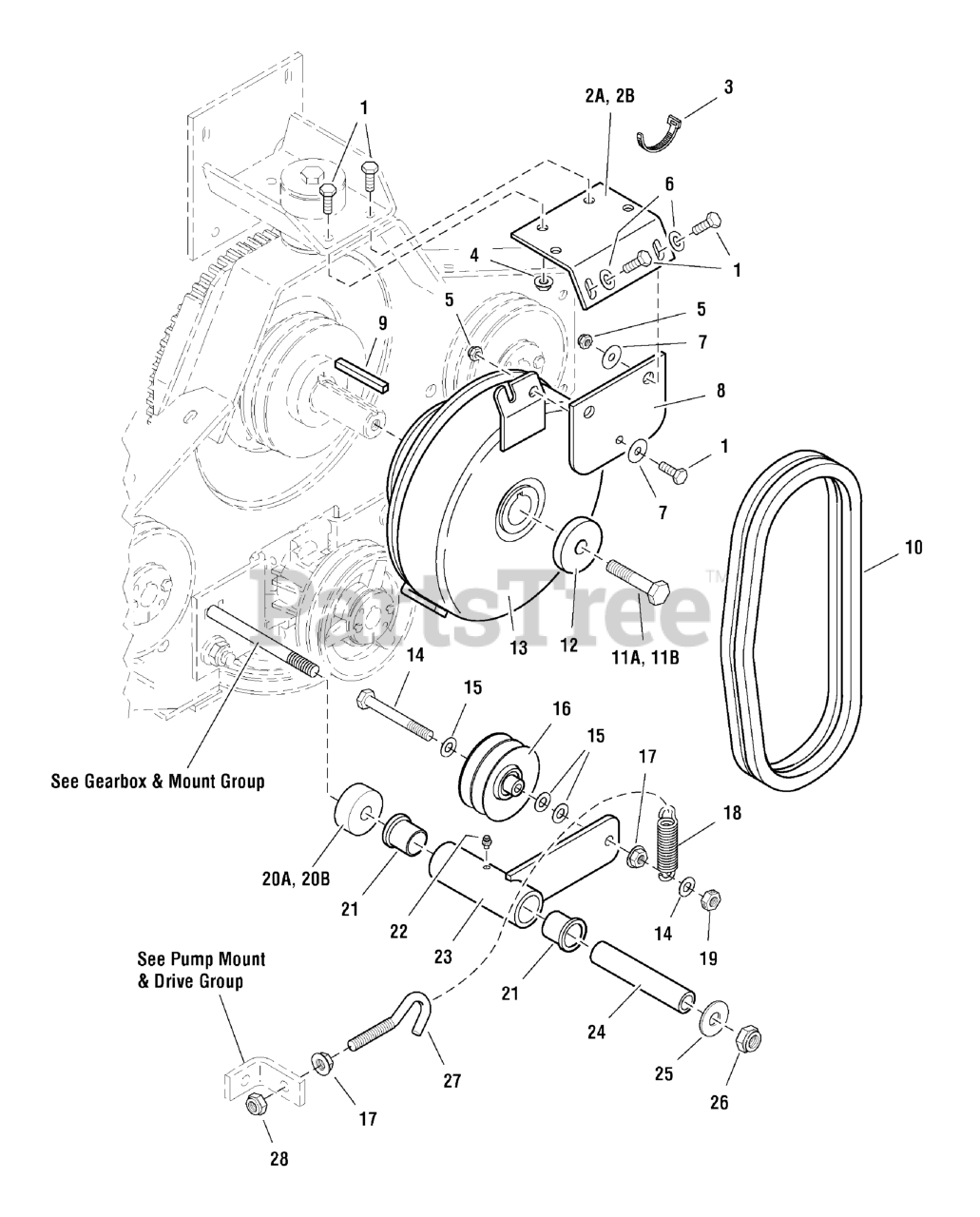

PTO Clutch Drive Group Parts Diagram

  • Title

1

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

2A

Ferris 5047563B

CLUTCH ANCHOR
(Superseded to 5047563BFS)

Note: (Diesel model)

$17.99

$

Usually ships in 2-12 days

0

2B

Ferris 5047839B

CLUTCH ANCHOR

Note: (Gas model)

$

$

Currently unavailable

3

Ferris 5021030

TIE WRAP, 5-1/2"
(Superseded to 5021030SM)

$2.99

$

In Stock, only 3 left!

0

4

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, only 4 left!

0

5

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

6

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

7

Ferris 5044617

WASHER, Clutch Anchor
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

8

Ferris 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

Usually ships in 2-12 days

0

9

Ferris 5050407X2

KEY, 1/4 SQ. X 3
(Superseded to 5050407X24YP)

$6.49

$

Usually ships in 2-12 days

0

10

Ferris 5022575

BELT, Clutch Drive (set of 2)
(Superseded to 5022575FS)

$60.99

$

In Stock, only 1 left!

0

11A

Ferris 5045473

CRANKSHAFT BOLT, 7/16 x 1-1/2

Note: (Diesel model)

$

$

Currently unavailable

11B

Ferris 5047991

CRANKSHAFT BOLT, 7/16 x 3-3/4

Note: (Gas model)

$

$

Currently unavailable

12

Ferris 5045475

SPACER, .45 x 1.88 x .38
(Superseded to 5045475SM)

$14.99

$

In Stock, only 1 left!

0

13

DIESEL MODELS: 5100040, 5100041, 5025499 & 5101524; GAS MODELS: 5101409

$

$

Not available

14

Ferris 5025013X24

BOLT, 3/8-16 X 3" GD5 CZ
(Superseded to 5025013X24SM)

$3.99

$

In Stock, only 1 left!

0

15

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

16

Ferris 5022797

PULLEY, Idler
(Superseded to 5022797YP)

$100.99

$

Usually ships in 2-12 days

0

17

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

18

Ferris 1608395

SPRING, Extension

$15.99

$

Usually ships in 2-12 days

0

19

Ferris 5025100

NUT, 3/8-16 Hex Side Lock
(Superseded to 5025100SM)

$3.49

$

In Stock, Qty 20+

0

20A

Ferris 5046916

SPACER, .51 x 1.75 x .75
(Superseded to 5046916FS)

Note: (Diesel model)

$27.99

$

Usually ships in 2-12 days

0

20B

Ferris 5047843

SPACER, .51 x 1.75 x .50

Note: (Gas model)

$

$

Currently unavailable

21

Ferris 5022250

BUSHING, Flange
(Superseded to 5022250SM)

$9.49

$

Usually ships in 2-12 days

0

22

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

23

Ferris 5046565B

CLUTCH DRIVE IDLER ARM
(Superseded to 5046565BFS)

$69.99

$

Usually ships in 2-12 days

0

24

Ferris 5045305

PIVOT SLEEVE, Long
(Superseded to 5045305SM)

$64.99

$

Usually ships in 2-12 days

0

25

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

26

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

27

Ferris 5025321

SCREW HOOK, 3/8-16 x 4-1/4
(Superseded to 5025321SM)

$16.99

$

Usually ships in 2-12 days

0

28

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0
