IS 5000Z (5901073) - Ferris IS5000Z Series Zero-Turn Mower, 34hp Vanguard Parking Brake Group - Lower Parts Diagram

IS5000Z Series Zero-Turn Mower, 34hp Vanguard

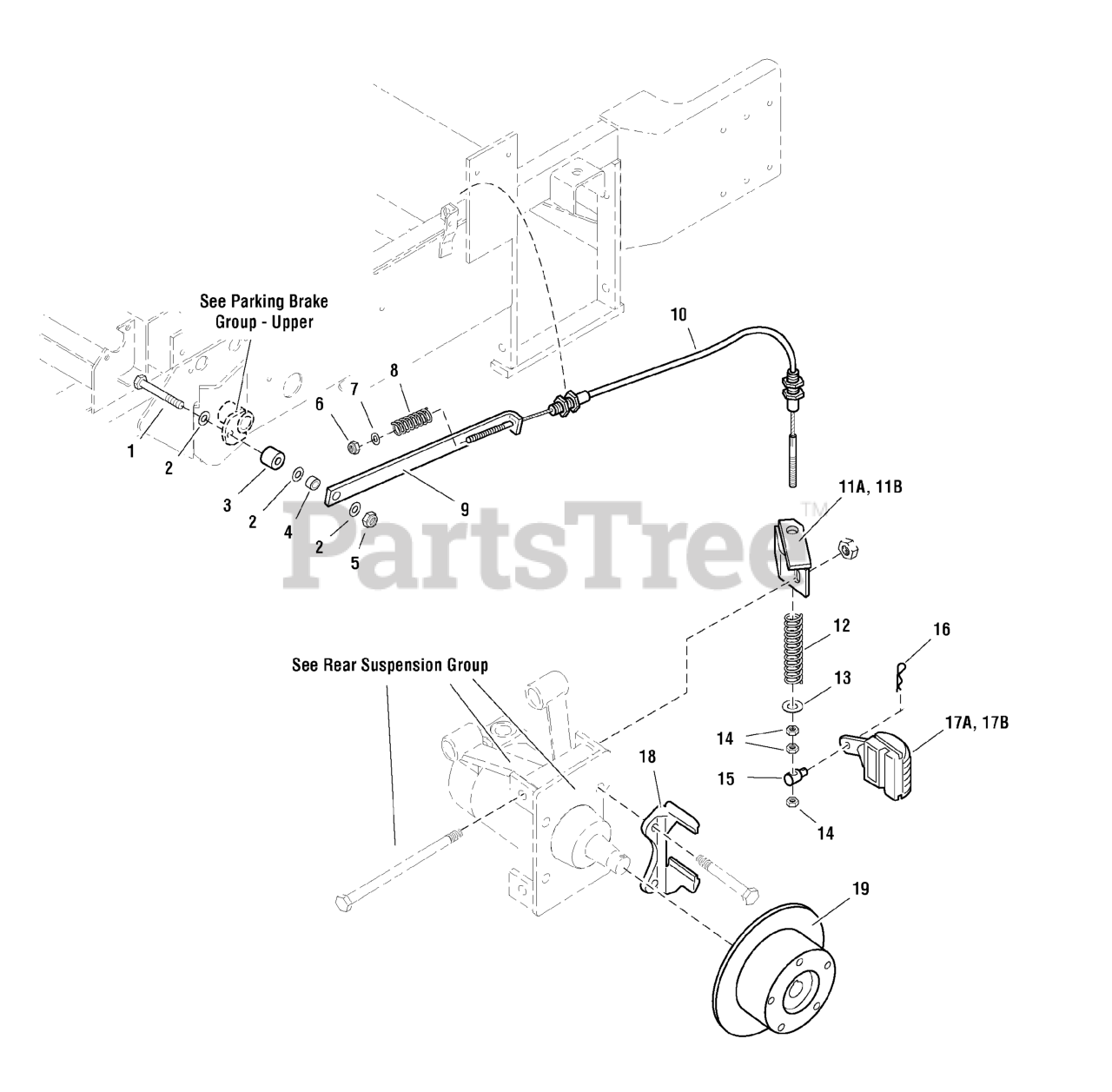

Parking Brake Group - Lower Parts Diagram

  • Title
1

Ferris 5025013X18

BOLT, 3/8-16 X 2-1/4" GD5 CZ
(Superseded to 5025013X18SM)

$3.99

$

In Stock, only 2 left!

0

2

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

3

Ferris 5047125

SPACER, .39 x 1.00 x .88
(Superseded to 5047125SM)

$7.99

$

In Stock, only 2 left!

0

4

Ferris 5041930

SPACER, .38 x .50 x .27
(Superseded to 5041930SM)

$4.99

$

Usually ships in 2-12 days

0

5

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

6

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

7

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

8

Ferris 5022361

SPRING, Compression
(Superseded to 5022361SM)

$9.99

$

Usually ships in 2-12 days

0

9

Ferris 5047382B

LINK, Brake Lock

$

$

Currently unavailable

10

Ferris 5022209

CABLE, Brake

$

$

Not available

11A

Ferris 5045604B

BRACKET, Cable Mount-LH

$26.99

$

Usually ships in 2-12 days

0

11B

Ferris 5045605B

BRACKET, Cable Mount-RH

Note: (Not Shown)

$

$

Currently unavailable

12

Ferris 5021494

SPRING, Compression
(Superseded to 5021494SM)

$13.99

$

Usually ships in 2-12 days

0

13

Ferris 5025164

WASHER, 5/16" Fender
(Superseded to 5025164SM)

$3.99

$

In Stock, only 1 left!

0

14

Ferris 5025033

NUT, 5/16-24 Hex
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

15

Ferris 5045947

ADJUSTER, Brake Linkage

$24.99

$

Usually ships in 2-12 days

0

16

Ferris 5025211

HAIRPIN CLIP
(Superseded to 5025211SM)

$3.99

$

In Stock, only 1 left!

0

17A

Ferris 5023179

BRAKE CALIPER, LH

$314.99

$

Usually ships in 2-12 days

0

17B

Ferris 5023180

BRAKE CALIPER, RH

Note: (Not Shown)

$320.99

$

Usually ships in 2-12 days

0

18

Ferris 5022340

MOUNT, Brake Caliper

$159.99

$

Usually ships in 2-12 days

0

19

Ferris 5022339

HUB, 8" Brake Disc
(Superseded to 5022339SM)

$311.99

$

Usually ships in 2-12 days

0
