IS 5000Z (5901073) - Ferris IS5000Z Series Zero-Turn Mower, 34hp Vanguard Instrument & Control Panel Group - Gas Parts Diagram

IS5000Z Series Zero-Turn Mower, 34hp Vanguard

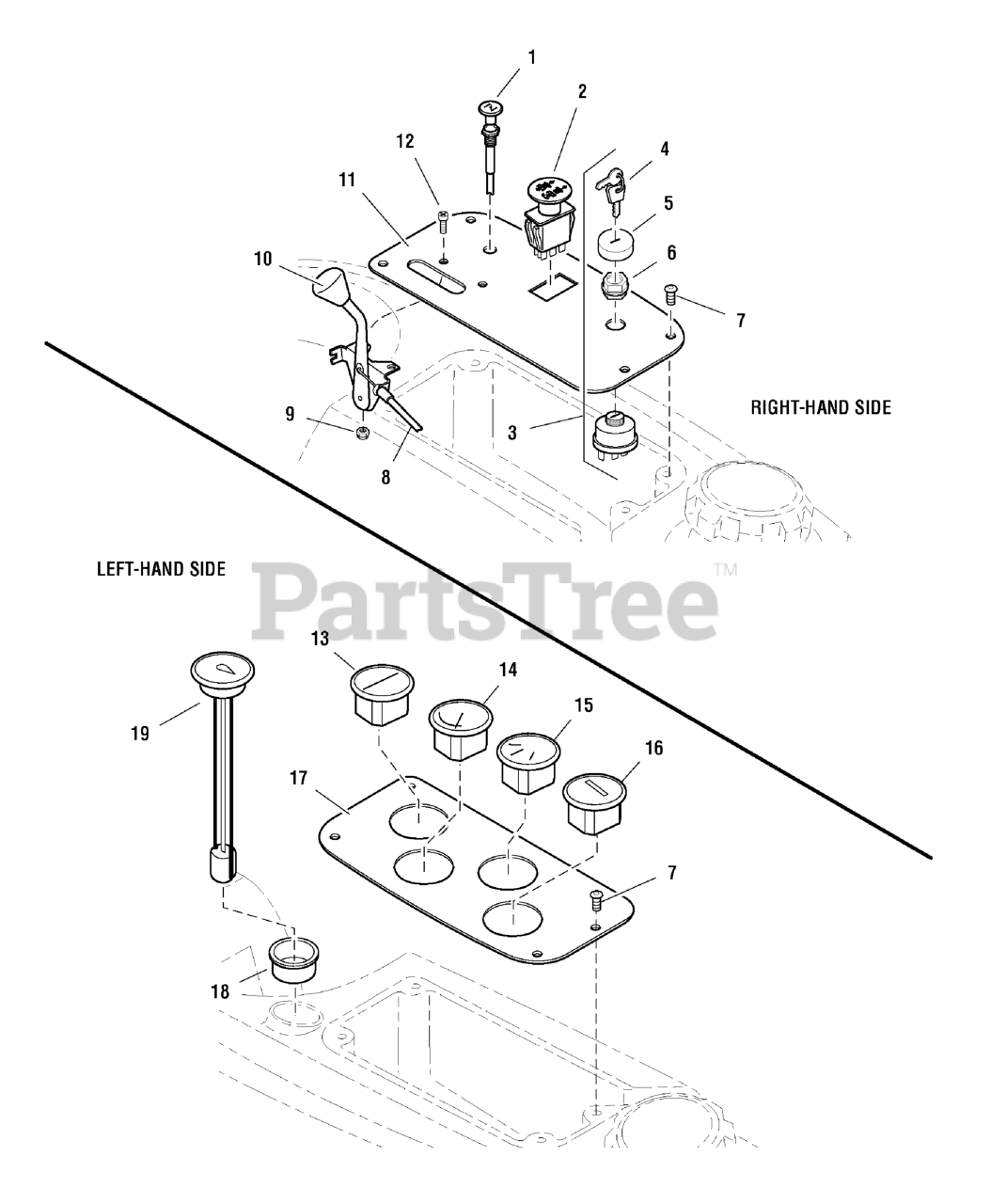

Instrument & Control Panel Group - Gas Parts Diagram

  • Title
1

Ferris 5047841

CABLE, Choke Control

$48.99

$

Usually ships in 2-12 days

0

2

Ferris 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

3

Ferris 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

Note: (Includes Ref No. 5 - 7)

$33.99

$

In Stock, only 3 left!

0

4

Ferris 5022789

KEY, IGNITION MOLDED SET

$

$

Currently unavailable

5

Ferris 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

$4.49

$

In Stock, only 1 left!

0

6

Ferris 5022791

PLASTIC NUT
(Superseded to 5022791SM)

$3.49

$

In Stock, only 1 left!

0

7

Ferris 5025299X4

SCREW, Allen Head, 1/4-20 x 1/2
(Superseded to 5106469)

$2.49

$

In Stock, Qty 15

0

8

Ferris 5047842

CABLE, Throttle Control

$69.99

$

Usually ships in 2-12 days

0

9

Ferris 5025271

NUT, #10-24 Hex Nylon Lock
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

10

Ferris 5046360

HANDLE, THROTTLE CONTROL

$55.99

$

In Stock, only 2 left!

0

10

Ferris 5046360X1

THROTTLE CONTROL HANDLE/KNOB
(Superseded to 5046360X1SM)

$10.99

$

In Stock, only 1 left!

0

11

Ferris 5046600B

CONTROL PANEL-RH

$38.99

$

Usually ships in 2-12 days

0

12

Ferris 5025179X6

SCREW, #10-24 x 3/4
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0

13

Ferris 5046473

GAUGE, Warning, Oil/Temp

$228.99

$

Usually ships in 2-12 days

0

14

Ferris 5022483

GAUGE, Water Temperature

$216.99

$

Usually ships in 2-12 days

0

15

Ferris 5022387

GAUGE, Voltmeter

$53.99

$

Usually ships in 2-12 days

0

16

Ferris 5020060

HOUR METER

$250.99

$

Usually ships in 2-12 days

0

17

Ferris 5046256B

PANEL, GAUGE CLUSTER (4)

$39.99

$

Usually ships in 2-12 days

0

18

Ferris 5022917X1

GROMMET
(Superseded to 5022917X1SM)

$6.99

$

In Stock, only 2 left!

0

19

Ferris 5022917

GAUGE, FUEL, 12
(Superseded to 5022917FS)

$48.99

$

Usually ships in 2-12 days

0
