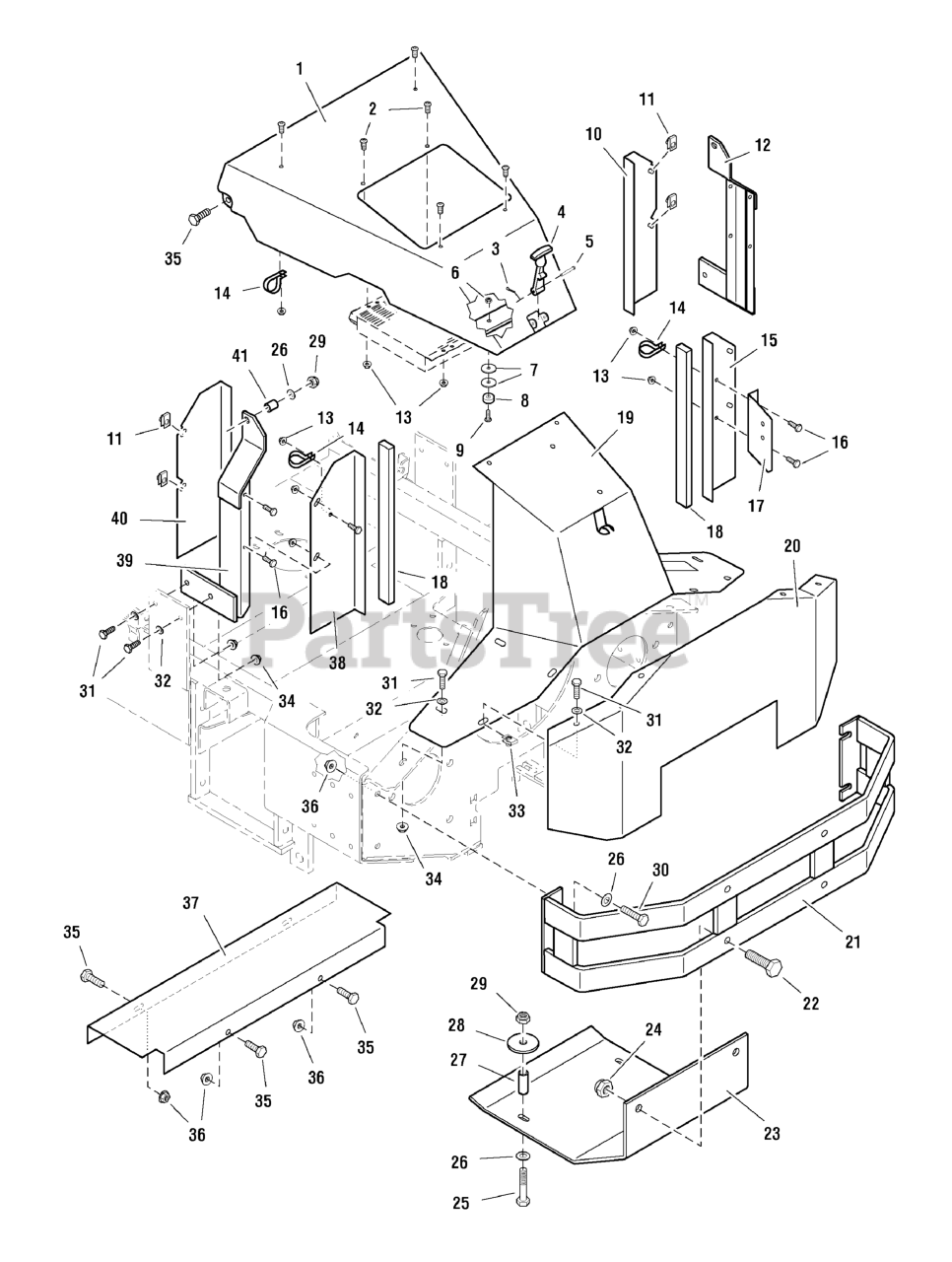

IS 5000Z (5901073) - Ferris IS5000Z Series Zero-Turn Mower, 34hp Vanguard Hood, Bumper & Shield Group - Gas Parts Diagram

IS5000Z Series Zero-Turn Mower, 34hp Vanguard

Hood, Bumper & Shield Group - Gas Parts Diagram

  • Title

1

Ferris 5047973B

HOOD

$

$

Currently unavailable

2

Ferris 5025299X6

USE 5106757 - SCREW,1/4-20X3/4, ZINC
(Superseded to 5106757)

$3.49

$

Usually ships in 2-12 days

0

3

Ferris 5020841X5

COTTER PIN
(Superseded to 5020841X5FS)

$2.99

$

Usually ships in 2-12 days

0

4

Ferris 5020841X1

RUBBER LATCH
(Superseded to 5020841X1SM)

$23.99

$

Usually ships in 2-12 days

0

5

Ferris 5020841X4

CLEVIS PIN
(Superseded to 5020841X4FS)

$2.99

$

Usually ships in 2-12 days

0

6

Ferris 5025271

NUT, #10-24 Hex Nylon Lock
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

7

Ferris 5025288

WASHER, 1/4" Fender
(Superseded to 5025288YP)

$3.99

$

In Stock, only 4 left!

0

8

Ferris 5022997

RUBBER BUMPER

$

$

Currently unavailable

9

Ferris 5025179X6

SCREW, #10-24 x 3/4
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0

10

Ferris 5047984B

SHROUD COVER-RH

$

$

Currently unavailable

11

Ferris 5022665

BODY CLIP, 1/4-20
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

12

Ferris 5047967B

HOOD MOUNT CHANNEL-RH

$

$

Currently unavailable

13

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

14

Ferris 5021500

CLAMP, Vinyl
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

15

Ferris 5047976B

AIR BAFFLE-RH

$

$

Currently unavailable

16

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

17

Ferris 5047974B

OVERFLOW BOTTLE MOUNT

$19.99

$

Usually ships in 2-12 days

0

18

Ferris 5050913X16

FOAM SEAL, 16"

$

$

Currently unavailable

19

Ferris 5047962B

REAR HOOD SUPPORT

$

$

Currently unavailable

20

Ferris 5045784B

REAR SHIELD

$

$

Not available

21

Ferris 5047578B

BUMPER

$421.99

$

Usually ships in 2-12 days

0

22

Ferris 5025018X12

BOLT, 1/2-20 X 1-1/2, GD5 CZ
(Superseded to 5025018X12FS)

$4.99

$

Usually ships in 2-12 days

0

23

Ferris 5047581B

SKID SHIELD

$110.99

$

Usually ships in 2-12 days

0

24

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

In Stock, only 2 left!

0

25

Ferris 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

In Stock, only 3 left!

0

26

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

27

Ferris 5044992

SPACER, .38 x .50 x 1.56
(Superseded to 5044992SM)

$5.99

$

In Stock, only 2 left!

0

28

Ferris 5025305

WASHER, 3/8 x 1-3/4
(Superseded to 5025305SM)

$3.99

$

In Stock, only 2 left!

0

29

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

30

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

31

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

32

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

33

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

34

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, only 4 left!

0

35

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

36

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

37

Ferris 5047545B

DEBRIS SHIELD

$83.99

$

Usually ships in 2-12 days

0

38

Ferris 5047975B

AIR BAFFLE-LH

$

$

Currently unavailable

39

Ferris 5047966B

HOOD MOUNT CHANNEL-LH

$

$

Currently unavailable

40

Ferris 5047983B

SHROUD COVER-LH

$

$

Currently unavailable

41

Ferris 5041930

SPACER, .38 x .50 x .27
(Superseded to 5041930SM)

$4.99

$

Usually ships in 2-12 days

0
