IS 5000Z (5901073) - Ferris IS5000Z Series Zero-Turn Mower, 34hp Vanguard Floor Pan & Brake Cover Group Parts Diagram

IS5000Z Series Zero-Turn Mower, 34hp Vanguard

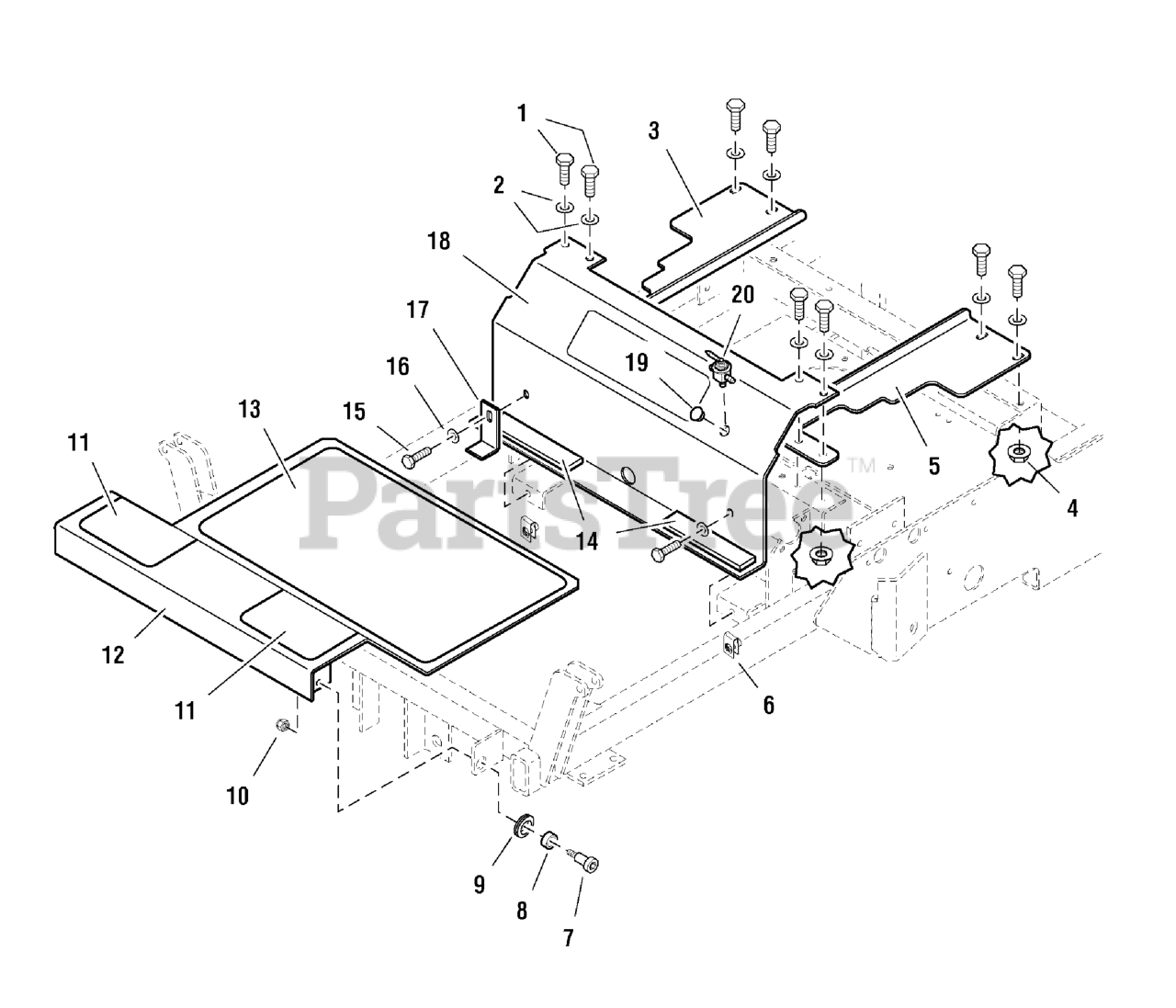

Floor Pan & Brake Cover Group Parts Diagram

  • Title
1

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

2

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

3

Ferris 5047548B

SHIELD - RH

$47.99

$

Usually ships in 2-12 days

0

4

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

5

Ferris 5047549B

SHIELD - LH

$60.99

$

Usually ships in 2-12 days

0

6

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

7

Ferris 5025340

SHOULDER BOLT, 3/8 x 5/8

$2.99

$

Usually ships in 2-12 days

0

8

Ferris 5041600

SLEEVE
(Superseded to 5041600FS)

$5.99

$

Usually ships in 2-12 days

0

9

Ferris 5022816

GROMMET
(Superseded to 5022816YP)

$3.99

$

Usually ships in 2-12 days

0

10

Ferris 5025057

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

11

Ferris 5045915

SAFETY WALK
(Superseded to 5101010YP)

$15.99

$

Usually ships in 2-12 days

0

12

Ferris 5045333B

FLOOR PAN

$284.99

$

Usually ships in 2-12 days

0

13

Ferris 5101113

SAFETY WALK, 11.50 X 19.00
(Superseded to 5101114YP)

Note: WAS 5044873

$68.99

$

Usually ships in 2-12 days

0

14

Ferris 5021877

RUBBER PAD
(Superseded to 5021877SM)

$7.49

$

Usually ships in 2-12 days

0

15

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

16

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

17

Ferris 5047285B

HOLD DOWN

Note: (Export models only)

$

$

Currently unavailable

18

Ferris 5047636B

BRAKE COVER PANEL ASSEMBLY

$

$

Currently unavailable

19

Ferris 5021003

HOLE PLUG
(Superseded to 5021003SM)

Note: (Diesel model)

$

$

Not available

20

Ferris 5022976

FUEL SHUT OFF VALVE

Note: (Gas model)

$37.99

$

Usually ships in 2-12 days

0
