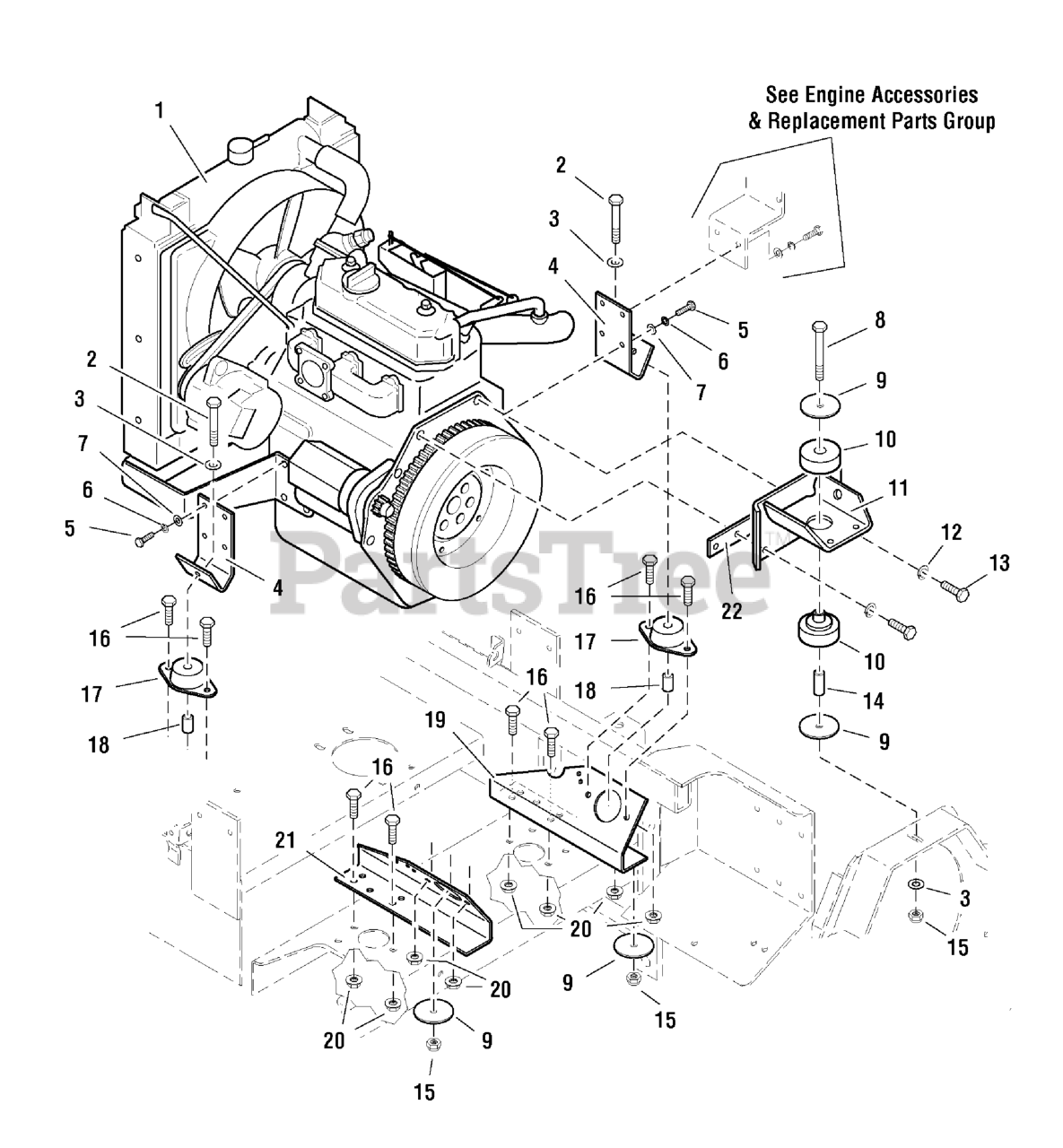

IS 5000Z (5901073) - Ferris IS5000Z Series Zero-Turn Mower, 34hp Vanguard Engine & PTO Group - Gas Parts Diagram

IS5000Z Series Zero-Turn Mower, 34hp Vanguard

Engine & PTO Group - Gas Parts Diagram

  • Title

1

ENGINE, Briggs & Stratton, Diahatsu

$

$

Not available

2

Ferris 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

In Stock, only 3 left!

0

3

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

4

Ferris 5047789B

MOTOR MOUNT - Front

$

$

Currently unavailable

5

Ferris 5025245

BOLT, M8 x 30MM

$2.49

$

Usually ships in 2-12 days

0

6

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

In Stock, only 2 left!

0

7

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

8

Ferris 5025013X24

BOLT, 3/8-16 X 3" GD5 CZ
(Superseded to 5025013X24SM)

$3.99

$

In Stock, only 1 left!

0

9

Ferris 5047381

WASHER, 3/8 x 2-1/2
(Superseded to 5047381FS)

$11.99

$

Usually ships in 2-12 days

0

10

Ferris 5022938

ISO MOUNT, Rear (2 piece)

$

$

Currently unavailable

11

Ferris 5048115B

MOTOR MOUNT - Upper

$

$

Currently unavailable

12

Ferris 5025171

WASHER, 3/8" Lock
(Superseded to 5025171SM)

$3.99

$

In Stock, only 1 left!

0

13

Ferris 5025344

BOLT, M10 x 35MM

$

$

Currently unavailable

14

Ferris 5047380

SPACER, .38 x .62 x 1.62
(Superseded to 5047380FS)

$8.49

$

Usually ships in 2-12 days

0

15

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

16

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

17

Ferris 5022937

ISO MOUNT, Front

$45.99

$

Usually ships in 2-12 days

0

18

Ferris 5044959

SPACER, .38 x .50 x 1.00
(Superseded to 5044959FS)

$3.49

$

Usually ships in 2-12 days

0

19

Ferris 5047791B

MOTOR MOUNT PLATE - RH

$

$

Currently unavailable

20

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

21

Ferris 5047792B

MOTOR MOUNT PLATE - LH

$

$

Currently unavailable

22

Ferris 5047817

PLATE, Iso Mount, Rear

$

$

Currently unavailable
