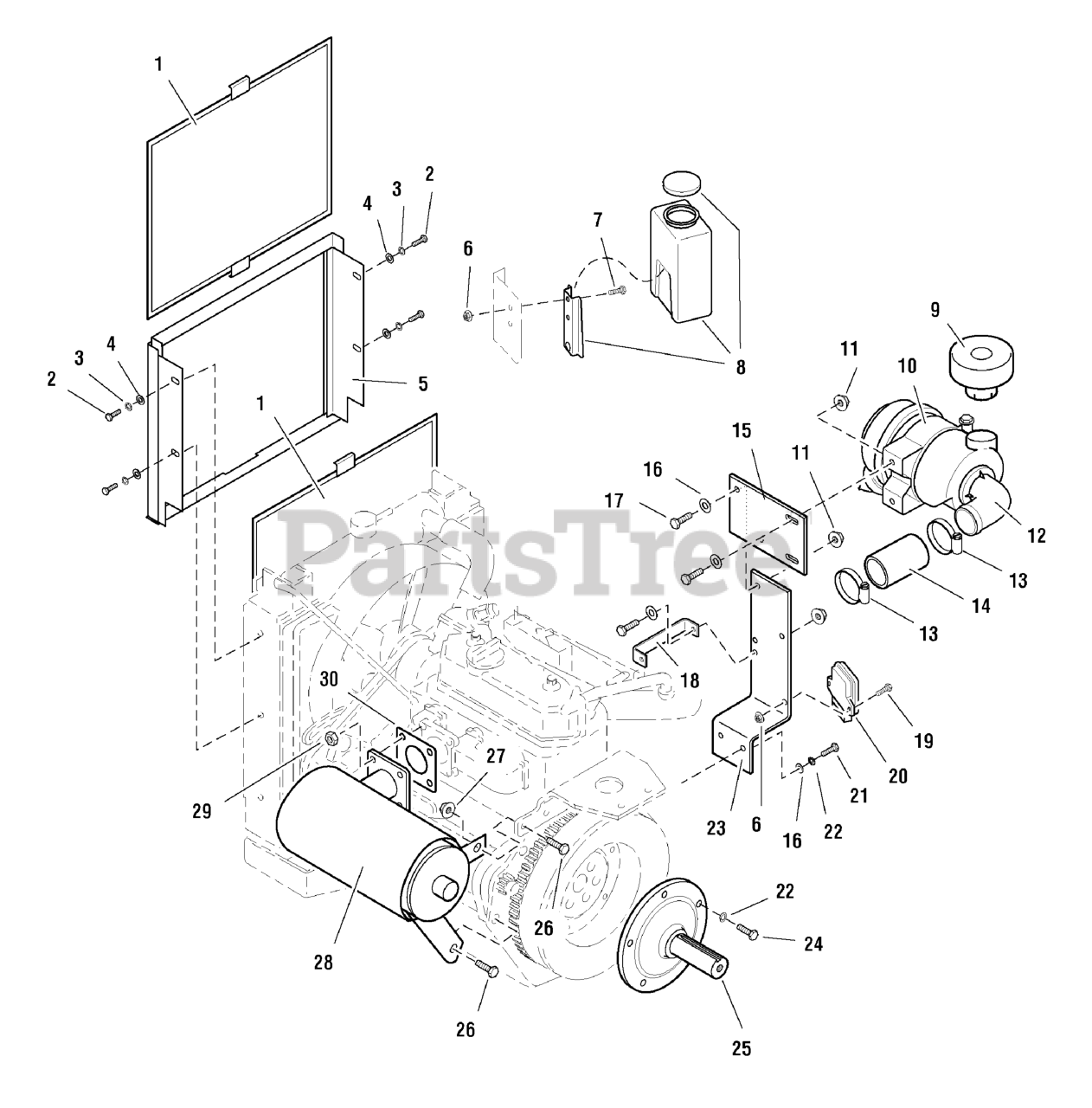

IS 5000Z (5901073) - Ferris IS5000Z Series Zero-Turn Mower, 34hp Vanguard Engine Accessories Group - Gas Parts Diagram

IS5000Z Series Zero-Turn Mower, 34hp Vanguard

Engine Accessories Group - Gas Parts Diagram

  • Title

1

SCREEN

$

$

Not available

2

BOLT, M6 X15mm

$

$

Not available

3

Ferris 5025169

WASHER, 1/4 LOCK
(Superseded to 5025169FS)

$3.99

$

In Stock, only 2 left!

0

4

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

5

Ferris 5047954B

RADIATOR SHROUD

$

$

Currently unavailable

6

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

7

Ferris 5025010X6

BOLT, 1/4-20 x 3/4
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

8

RADIATOR & OVERFLOW KIT

$

$

Not available

9

Ferris 5023062

RAIN COVER

$75.99

$

Usually ships in 2-12 days

0

10

AIR CLEANER MOUNT BRACKET (835009)

$

$

Not available

11

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, Qty 7

0

12

AIR CLEANER (835008)

$

$

Not available

13

HOSE CLAMP

$

$

Not available

14

INLET HOSE (835038)

$

$

Not available

15

Ferris 5047870B

AIR CLEANER MOUNT PLATE

$

$

Currently unavailable

16

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

17

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 20+

0

18

Ferris 5047915

AIR CLEANER BRACE

$

$

Currently unavailable

19

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

20

IGNITION MODULE

$

$

Not available

21

Ferris 5025335

BOLT, M8 x 35MM
(Superseded to 5025335SM)

$3.49

$

Usually ships in 2-12 days

0

22

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

In Stock, only 2 left!

0

23

Ferris 5047838B

AIR CLEANER BRACKET

$

$

Currently unavailable

24

Ferris 5025249

BOLT, M8 x 20MM
(Superseded to 5025249YP)

$2.99

$

Usually ships in 2-12 days

0

25

Ferris 5022370X8

STUB SHAFT

$

$

Not available

26

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

27

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

28

Ferris 5022950

MUFFLER

$

$

Currently unavailable

29

NUT, Hex, M8

$

$

Not available

30

MUFFLER GASKET

$

$

Not available
