IS 5000Z (5901073) - Ferris IS5000Z Series Zero-Turn Mower, 34hp Vanguard Deck Lift Group Parts Diagram

IS5000Z Series Zero-Turn Mower, 34hp Vanguard

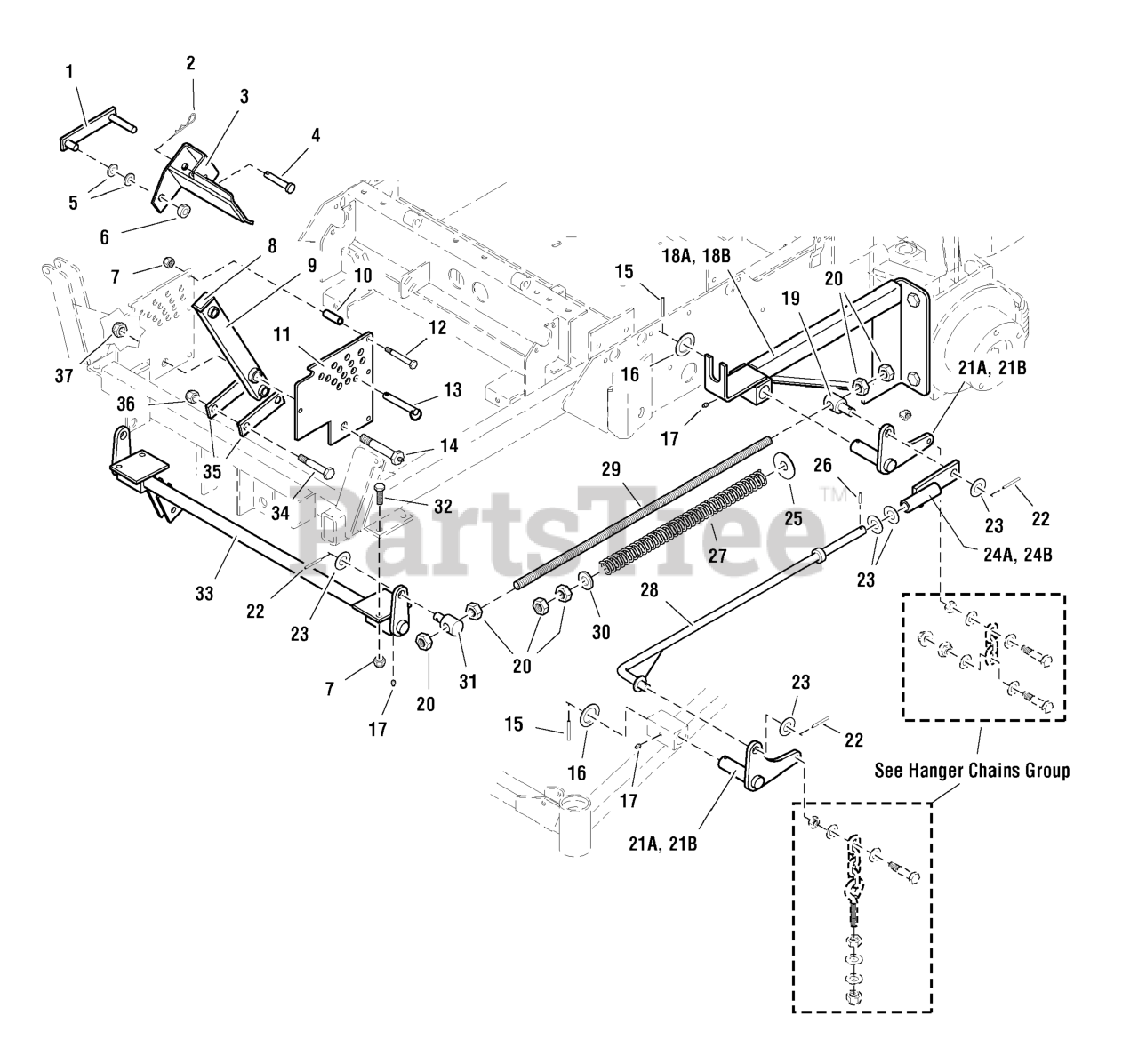

Deck Lift Group Parts Diagram

  • Title

1

Ferris 5044999B

DECK LIFT LOCK

$

$

Not available

2

Ferris 5025210

HAIRPIN CLIP
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

3

Ferris 5045058B

WELD, DECK LIFT PEDAL

$98.99

$

Usually ships in 2-12 days

0

3

Ferris 5044875

PEDAL SAFETY WALK
(Superseded to 5101008SM)

$7.49

$

Usually ships in 2-12 days

0

4

Ferris 5022044

PIN, Clevis, 1/2 x 2-1/2
(Superseded to 5022044SM)

$4.49

$

In Stock, only 1 left!

0

5

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

6

Ferris 5023241

COLLAR, Split, 1/2
(Superseded to 5023241SM)

$16.99

$

In Stock, only 1 left!

0

7

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

8

Ferris 5022097

CAP

$2.99

$

Usually ships in 2-12 days

0

9

Ferris 5044987B

ARM, Deck Lift Pivot

$46.99

$

Usually ships in 2-12 days

0

10

Ferris 5044992

SPACER, .38 x .50 x 1.56
(Superseded to 5044992SM)

$5.99

$

In Stock, only 2 left!

0

11

Ferris 5045379B

DECK HEIGHT PLATE

$

$

Currently unavailable

11

Ferris 5022063

DECAL, Deck Height
(Superseded to 5022063SM)

$49.99

$

Usually ships in 2-12 days

0

12

Ferris 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

$4.49

$

In Stock, only 3 left!

0

13

Ferris 5023082

PIN, 1/2 x 3-1/2 w/ Lanyard
(Superseded to 5023082SM)

$22.99

$

Usually ships in 2-12 days

0

14

Ferris 5044993

LIFT PIVOT BOLT

$32.99

$

Usually ships in 2-12 days

0

15

Ferris 5025516

PIN, Roll, 3/16 x 1-1/2

$

$

Not available

16

Ferris 5021253

SHIM

$10.99

$

Usually ships in 2-12 days

0

17

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

18A

Ferris 5045684

REAR DECK LIFT FRAME - LH

$275.99

$

Usually ships in 2-12 days

0

18B

Ferris 5045685

REAR DECK LIFT FRAME - RH

Note: (Not Shown)

$275.99

$

Usually ships in 2-12 days

0

19

Ferris 5047404

SPRING ROD PIVOT

$34.99

$

Usually ships in 2-12 days

0

20

Ferris 5025040

NUT, 5/8-11 Hex
(Superseded to 5025040SM)

$3.49

$

In Stock, Qty 6

0

21A

Ferris 5045449B

DECK LIFT PIVOT - LH

$88.99

$

Usually ships in 2-12 days

0

21B

Ferris 5045450B

DECK LIFT PIVOT - RH

Note: (Not Shown)

$88.99

$

Usually ships in 2-12 days

0

22

Ferris 5022366

PIN, Spring, 3/16 x 1-1/4
(Superseded to 5022366SM)

$3.49

$

Usually ships in 2-12 days

0

23

Ferris 5025281

WASHER, 5/8" SAE
(Superseded to 5025281SM)

$3.99

$

In Stock, Qty 8

0

24A

Ferris 5047522B

DECK LIFT LINK - LH

$51.99

$

Usually ships in 2-12 days

0

24B

Ferris 5047523B

DECK LIFT LINK - RH

Note: (Not Shown)

$47.99

$

Usually ships in 2-12 days

0

25

Ferris 5025159

WASHER, 5/8" USS

$

$

Currently unavailable

26

Ferris 5025316

PIN, Roll, 3/16 x 3/4

$

$

Currently unavailable

27

Ferris 5022333

SPRING, Deck Lift
(Superseded to 5022333SM)

$52.99

$

Usually ships in 2-12 days

0

28

Ferris 5047543B

DECK LIFT ROD

$

$

Currently unavailable

29

Ferris 5047413

SPRING ROD

$142.99

$

Usually ships in 2-12 days

0

30

Ferris 5041477

SPACER, .63 x 1.06 x .23
(Superseded to 5041477SM)

$5.99

$

Usually ships in 2-12 days

0

31

Ferris 5045856

SPRING ROD PIVOT

$

$

Currently unavailable

32

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

33

Ferris 5047441B

DECK LIFT SHAFT & MOUNT ASSEMBLY

$376.99

$

Usually ships in 2-12 days

0

34

Ferris 5025018X24

BOLT, 1/2-20 x 3
(Superseded to 5025018X24SM)

$4.99

$

Usually ships in 2-12 days

0

35

Ferris 5044994B

DECK LIFT LINK

$6.49

$

Usually ships in 2-12 days

0

36

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

In Stock, only 2 left!

0

37

Ferris 5025282

NUT, 5/8-11 Hex Jam Nylon Lock
(Superseded to 5025282FS)

$5.99

$

Usually ships in 2-12 days

0
