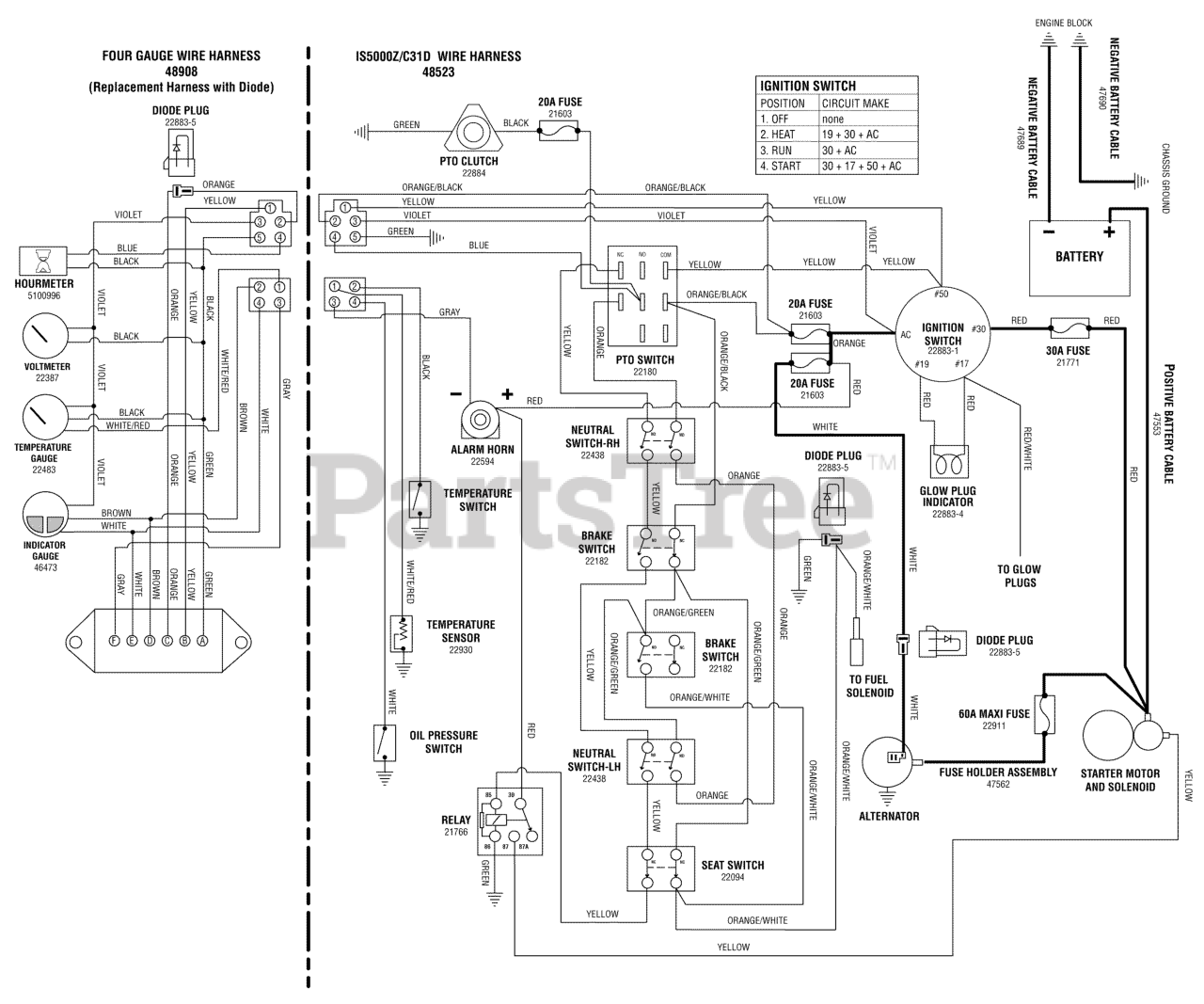

IS 5000Z (5901071) - Ferris IS5000Z Series Zero-Turn Mower, 31hp Caterpillar Diesel (SN: 1226 & Above) Electrical Schematic - Charging Circuit (S/N: 1291 & above) Parts Diagram

IS5000Z Series Zero-Turn Mower, 31hp Caterpillar Diesel

Electrical Schematic - Charging Circuit (S/N: 1291 & above) Parts Diagram
