IS 5000Z (5901070) - Ferris IS5000Z Series Zero-Turn Mower, 31hp Caterpillar Diesel (SN: 1226 & Above) Main Frame & Front Suspension Group Parts Diagram

IS5000Z Series Zero-Turn Mower, 31hp Caterpillar Diesel

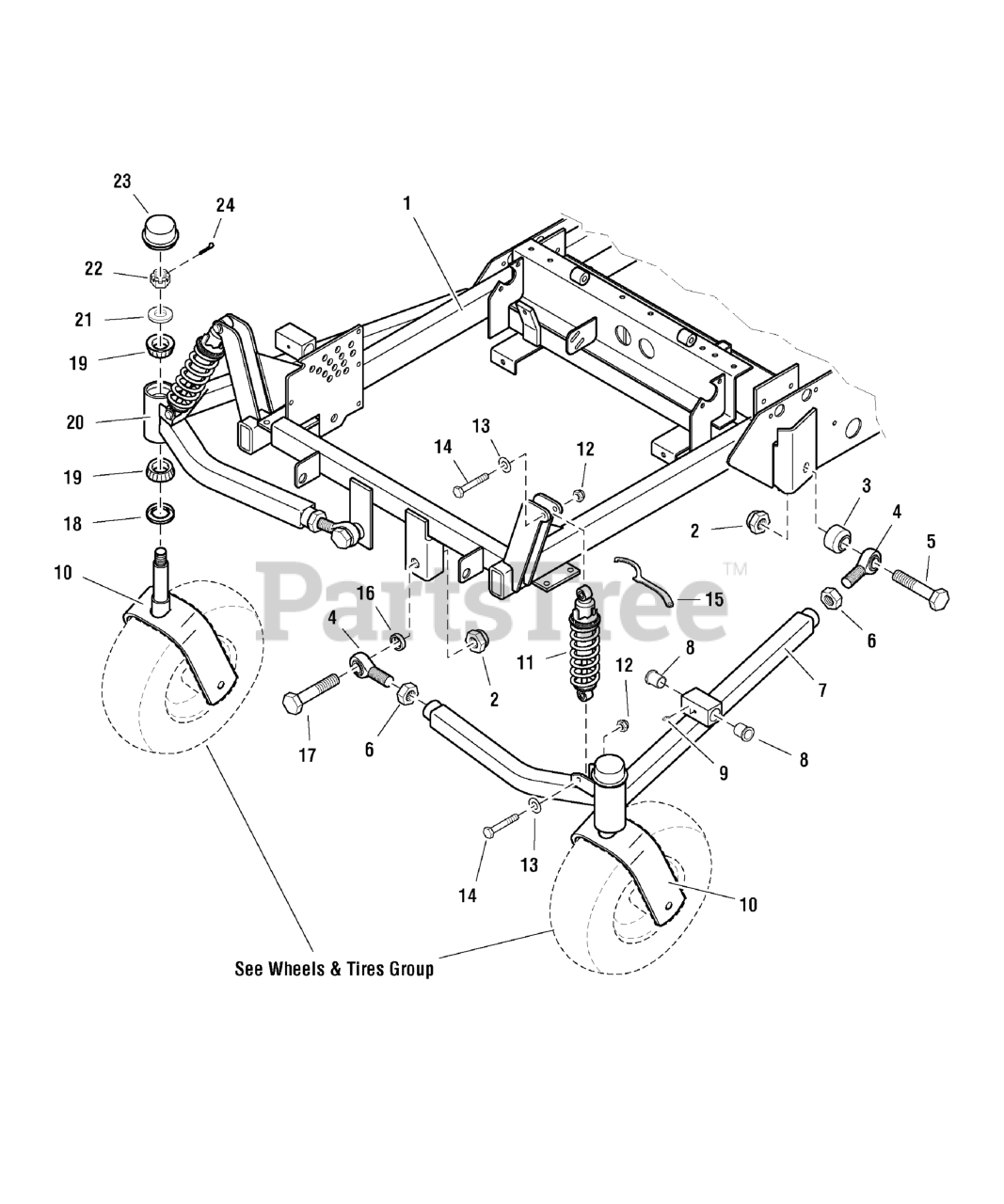

Main Frame & Front Suspension Group Parts Diagram

  • Title

1

Ferris 5061383B

MAIN FRAME

$

$

Currently unavailable

2

Ferris 5025284

NUT, 3/4-16 Hex Nylon Lock
(Superseded to 5025284SM)

$3.49

$

In Stock, only 3 left!

0

3

Ferris 5046093

SPACER, .75 x 1.50 x 1.00
(Superseded to 5046093SM)

$10.99

$

Usually ships in 2-12 days

0

4

Ferris 5022039

BALL JOINT, 3/4-16 Male
(Superseded to 5022039SM)

$37.99

$

In Stock, Qty 13

0

5

Ferris 5025265X28

BOLT, 3/4-16 x 3-1/2
(Superseded to 5025265X28SM)

$15.99

$

Usually ships in 2-12 days

0

6

Ferris 5025093

NUT, 3/4-16 Hex Jam
(Superseded to 5025093SM)

$4.49

$

In Stock, only 1 left!

0

7

Ferris 5061400

SUSPENSION ARM ASSEMBLY - LH, Complete

Note: (Includes Ref Nos. 8 and 9)

$569.99

$

Usually ships in 2-12 days

0

8

Ferris 5023343

BUSHING, Flange
(Superseded to 5023343SM)

Note: (Qty. (2) per suspension arm)

$6.49

$

Usually ships in 2-12 days

0

9

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

In Stock, only 3 left!

0

10

Ferris 5045769B

CASTER TIRE MOUNT
(Superseded to 5600096)

$127.99

$

In Stock, only 1 left!

0

11

Ferris 5022842

SHOCK & SPRING ASSEMBLY
(Superseded to 5022842SM)

$216.99

$

In Stock, only 2 left!

0

12

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

13

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

14

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

15

Ferris 5022853

WRENCH, SPANNER, CZ
(Superseded to 5022853SM)

$15.99

$

Usually ships in 2-12 days

0

16

Ferris 5047461

SPACER, .75 x 1.00 x .25
(Superseded to 5047461SM)

$4.99

$

In Stock, only 1 left!

0

17

Ferris 5025265X24

BOLT, 3/4-16 x 3
(Superseded to 5025265X24SM)

$13.99

$

In Stock, only 2 left!

0

18

Ferris 5021072

SEAL, GREASE
(Superseded to 5021072SM)

$7.49

$

In Stock, only 2 left!

0

19

Ferris 5020884

BEARING, Tapered Roller
(Superseded to 5020884SM)

$25.99

$

In Stock, Qty 20+

0

20

Ferris 5061399

SUSPENSION ARM ASSEMBLY - RH, Complete

Note: (Includes Ref Nos. 8 and 9)

$586.99

$

Usually ships in 2-12 days

0

21

Ferris 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$3.99

$

In Stock, Qty 5

0

22

Ferris 5025104

NUT, 3/4-16 Hex Slotted
(Superseded to 5025104FS)

$5.49

$

Usually ships in 2-12 days

0

23

Ferris 5021073

CAP
(Superseded to 5021073SM)

$7.49

$

In Stock, only 4 left!

0

24

Ferris 5025203X10

PIN, COTTER, 1/8 X 1-1/4
(Superseded to 5025203X10SM)

$3.99

$

In Stock, only 2 left!

0
