IS 5000Z (5901070) - Ferris IS5000Z Series Zero-Turn Mower, 31hp Caterpillar Diesel (SN: 1225 & Below) Hydraulic Group - Diesel (Early Models) Parts Diagram

IS5000Z Series Zero-Turn Mower, 31hp Caterpillar Diesel

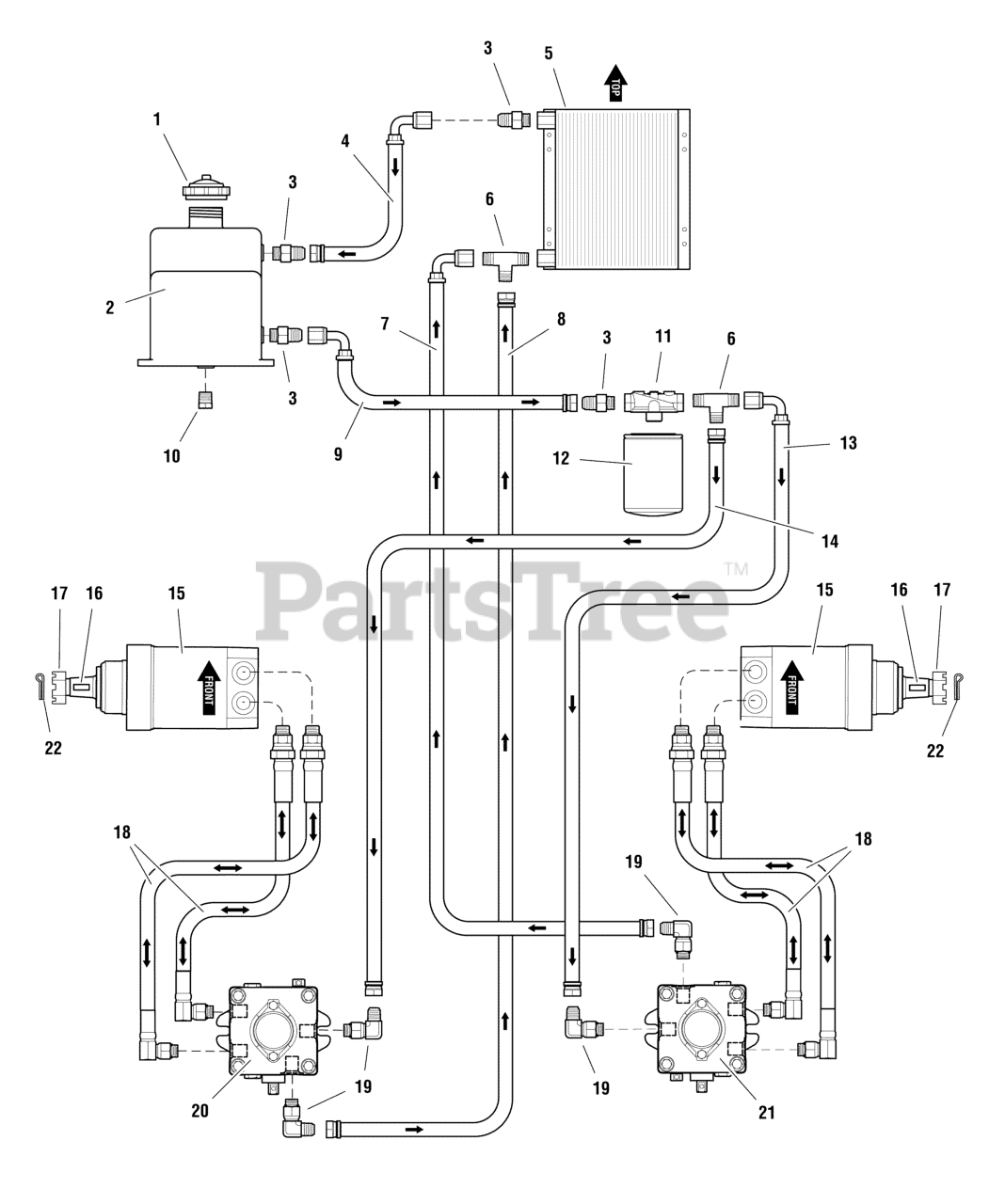

Hydraulic Group - Diesel (Early Models) Parts Diagram

  • Title
1

Ferris 5022437

CAP, Reservoir
(Superseded to 5022437FS)

$39.99

$

Usually ships in 2-12 days

0

2

Ferris 5045872

HYDRAULIC OIL RESERVOIR
(Superseded to 5045872FS)

$228.99

$

Usually ships in 2-12 days

0

3

Ferris 5022601

FITTING, NPT - JIC #8
(Superseded to 5022601FS)

$8.99

$

Usually ships in 2-12 days

0

4

Ferris 5047613

HOSE ASSEMBLY (28")

$71.99

$

Usually ships in 2-12 days

0

5

Ferris 5022377

OIL COOLER

$165.99

$

Usually ships in 2-12 days

0

6

Ferris 5022602

FITTING, TEE, JIC #8, NPT

$26.99

$

Usually ships in 2-12 days

0

7

Ferris 5047615

HOSE ASSEMBLY (31")

$51.99

$

Usually ships in 2-12 days

0

8

Ferris 5047614

HOSE ASSEMBLY (34")

$43.99

$

Usually ships in 2-12 days

0

9

Ferris 5047612

HOSE ASSEMBLY (9")

$37.99

$

Usually ships in 2-12 days

0

10

Ferris 5020986

PLUG, 1/2" NPT
(Superseded to 5020986FS)

$32.99

$

Usually ships in 2-12 days

0

11

Ferris 5021356

FILTER HEAD
(Superseded to 5021356SM)

$61.99

$

Usually ships in 2-12 days

0

12

Ferris 5021357X1

FILTER, HYDRAULIC, SERVICE PART (PKG)

$31.99

$

Usually ships in 2-12 days

0

13

Ferris 5047611

HOSE ASSEMBLY (24")

$63.99

$

Usually ships in 2-12 days

0

14

Ferris 5047610

HOSE ASSEMBLY (40")

$43.99

$

Usually ships in 2-12 days

0

15

Ferris 5022368

HYDRAULIC WHEEL MOTOR, Complete

Note: (Includes Ref No. 16 & 17)

$1481.99

$

Usually ships in 2-12 days

0

16

Ferris 5022042X2

KEY
(Superseded to 5022042X2SM)

$10.99

$

In Stock, only 1 left!

0

17

Ferris 5022042X3

NUT, CASTLE, 1-20
(Superseded to 5022042X3SM)

$34.99

$

In Stock, only 1 left!

0

18

USE 5413279 HOSE & 5022599 FITTING

$

$

Not available

19

Ferris 5022599

FITTING, O-Ring, 90 Deg.
(Superseded to 5022599SM)

$32.99

$

In Stock, only 1 left!

0

20

Ferris 5022375

HYDRAULIC PUMP - LH

$1244.99

$

Usually ships in 2-12 days

0

21

Ferris 5022376

HYDRAULIC PUMP - RH

$1244.99

$

Usually ships in 2-12 days

0

22

Ferris 5025203X16

PIN, COTTER, 1/8" X 2"
(Superseded to 5025203X16SM)

$3.99

$

Usually ships in 2-12 days

0
