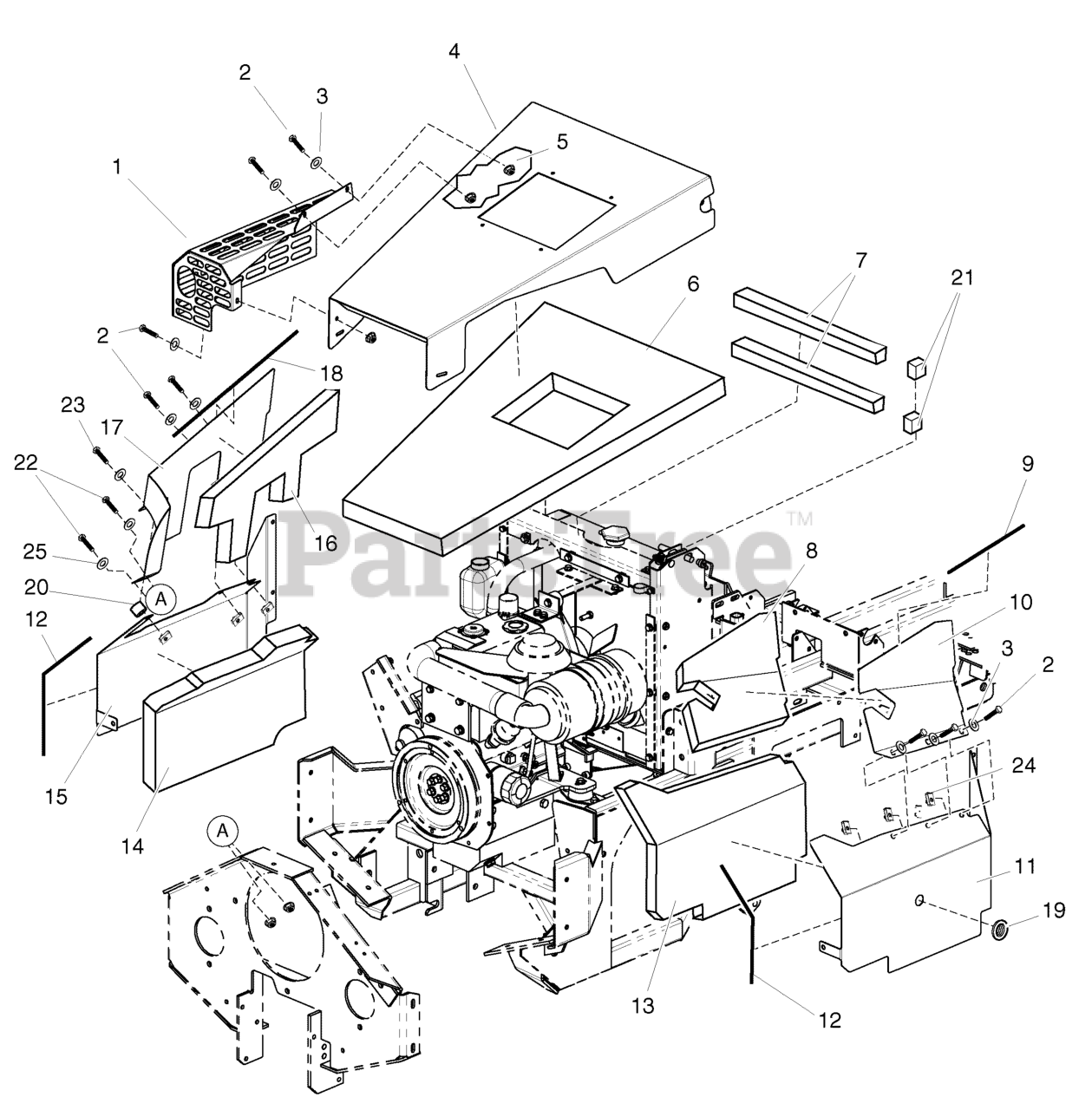

IS 4500Z (5901181) - Ferris IS4500Z Series 61" Zero-Turn Mower, 28hp Caterpillar Diesel Hood & Shield Group - (CE S/N: 2000375034 & Above; All Diesel S/N: 2000581119 & Above) Parts Diagram

IS4500Z Series 61" Zero-Turn Mower, 28hp Caterpillar Diesel

Hood & Shield Group - (CE S/N: 2000375034 & Above; All Diesel S/N: 2000581119 & Above) Parts Diagram

  • Title

1

Ferris 5401692B

WELD MUFFLER GUARD - RED

$125.99

$

Usually ships in 2-12 days

0

2

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

3

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

4

Ferris 5401701B

WELD , HOOD IS4500Z - RED

$176.99

$

Usually ships in 2-12 days

0

5

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

6

Ferris 5401707

SOUND BAFFLE, FOAM HOOD

$160.99

$

Usually ships in 2-12 days

0

7

Ferris 5050913X18

FOAM, 3/4" X 1", 18" LONG

$11.99

$

Usually ships in 2-12 days

0

8

Ferris 5401704

SOUND BAFFLE, FOAM UPPER - RH

$30.99

$

Usually ships in 2-12 days

0

9

Ferris 5050840X7

BLACK SOFTONE Q-TRIM 7" LONG

$

$

Currently unavailable

10

Ferris 5401686B

SOUND BAFFLE, UPPER - RH - RED

$19.99

$

Usually ships in 2-12 days

0

11

Ferris 5401685B

SOUND BAFFLE, LOWER - RH - RED

$39.99

$

Usually ships in 2-12 days

0

12

Ferris 5050840X11

BLACK SOFTONE Q-TRIM 11" LONG

$

$

Currently unavailable

13

Ferris 5401703

SOUND BAFFLE, FOAM LOWER - RH

$82.99

$

Usually ships in 2-12 days

0

14

Ferris 5401705

SOUND BAFFLE, FOAM LOWER - LH

$93.99

$

Usually ships in 2-12 days

0

15

Ferris 5401687B

SOUND BAFFLE, LOWER - LH - RED

$38.99

$

Usually ships in 2-12 days

0

16

Ferris 5401706

SOUND BAFFLE, FOAM UPPER - LH

$42.99

$

Usually ships in 2-12 days

0

17

Ferris 5401688B

SOUND BAFFLE, UPPER - LH - RED

$28.99

$

Usually ships in 2-12 days

0

18

Ferris 5050840X18P75

BLACK SOFTONE Q-TRIM 18.75" LONG

$

$

Currently unavailable

19

Ferris 5023236

GROMMET, 3/4"
(Superseded to 5023236SM)

$2.99

$

Usually ships in 2-12 days

0

20

Ferris 5044960

SPACER, .39 X 1.00 X .25
(Superseded to 5044960SM)

$5.49

$

In Stock, Qty 7

0

21

Ferris 5050913X1

FOAM, 3/4" X 1" X 1" LONG

$3.49

$

Usually ships in 2-12 days

0

22

Ferris 5025011X8

BOLT, 5/16-18 X 1"
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

23

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

24

Ferris 5022665

BODY CLIP, 1/4-20
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

25

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable
