IS 4500Z (5901179) - Ferris IS4500Z Series 61" Zero-Turn Mower, 35hp Briggs & Stratton Main Frame & Front Suspension Group Parts Diagram

IS4500Z Series 61" Zero-Turn Mower, 35hp Briggs & Stratton

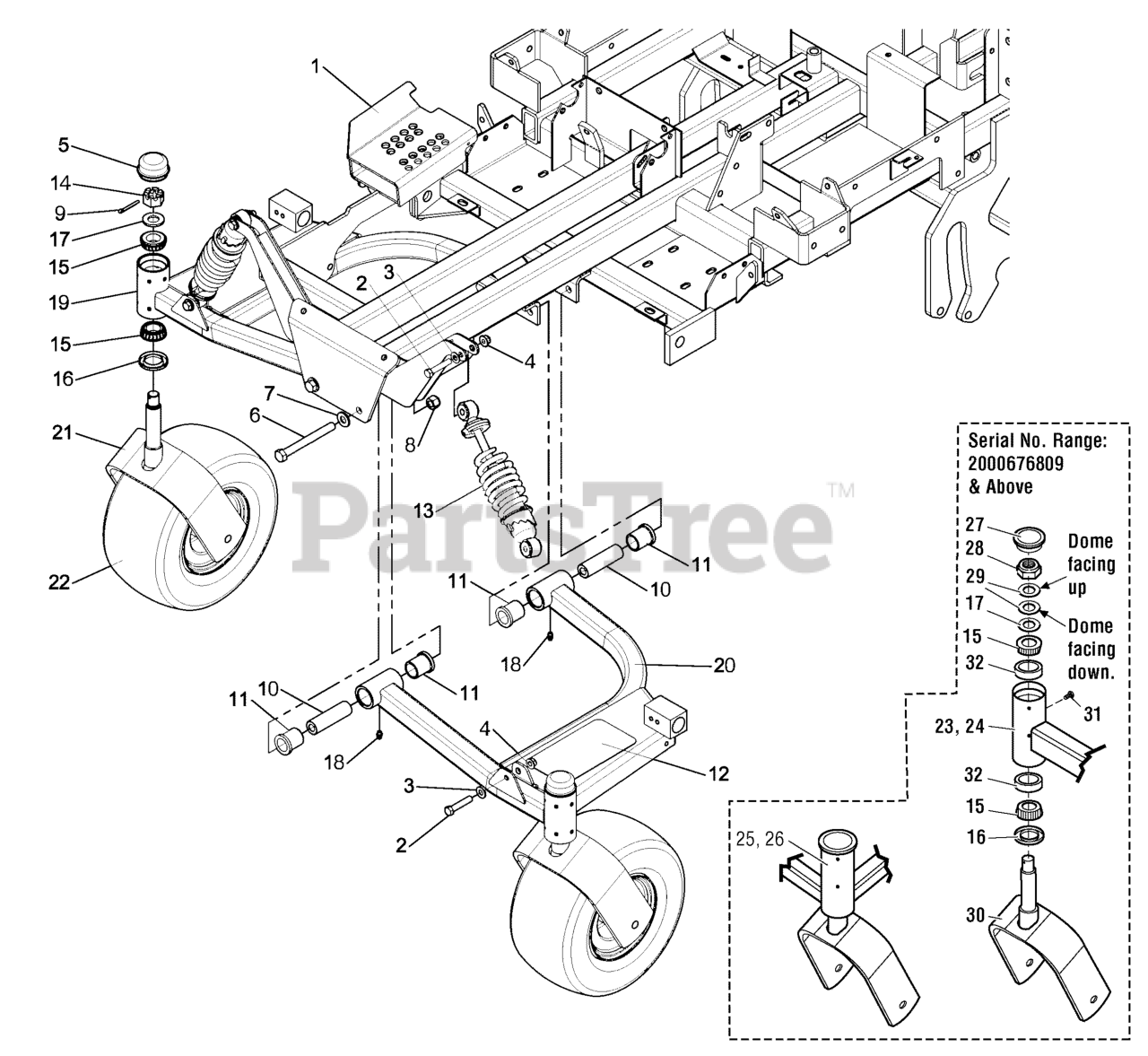

Main Frame & Front Suspension Group Parts Diagram

  • Title

1

Ferris 5049538B

WELD, MAIN FRAME IS4500

$

$

Currently unavailable

2

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

3

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

4

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

5

Ferris 5021073

CAP, DUST
(Superseded to 5021073SM)

$7.49

$

In Stock, only 4 left!

0

6

Ferris 5025017X40

BOLT, 1/2-13 X 5" GD5 YZ
(Superseded to 5025017X40SM)

$6.49

$

In Stock, only 1 left!

0

7

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 8

0

8

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

9

Ferris 5025203X10

PIN, COTTER, 1/8 X 1-1/4
(Superseded to 5025203X10SM)

$3.99

$

In Stock, only 2 left!

0

10

Ferris 5045022

SPACER, .52 X 1.00 X 3.50
(Superseded to 5045022SM)

$24.99

$

In Stock, only 2 left!

0

11

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 18

0

12

Ferris 5101004

SAFETY WALK, 4.00 X 7.50
(Superseded to 5101004SM)

$9.49

$

Usually ships in 2-12 days

0

13

Ferris 5023383

SHOCK, FRONT, IS4500
(Superseded to 5023383FS)

$195.99

$

Usually ships in 2-12 days

0

14

Ferris 5025104

NUT, 3/4-16 HEX SLOTTED
(Superseded to 5025104FS)

$5.49

$

Usually ships in 2-12 days

0

15

Ferris 5020884

BEARING, TAPERED ROLLER, 1"
(Superseded to 5020884SM)

$25.99

$

In Stock, Qty 20+

0

16

Ferris 5021072

SEAL, GREASE
(Superseded to 5021072SM)

$7.49

$

In Stock, only 2 left!

0

17

Ferris 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$3.99

$

In Stock, Qty 5

0

18

Ferris 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

In Stock, only 3 left!

0

19

Ferris 5049546B

WELD, CONTROL ARM, RH - 61" MODELS

Note: (61" models only.)

$410.99

$

Usually ships in 2-12 days

0

19

Ferris 5401001B

WELD, CONTROL ARM, RH - 72" MODELS

Note: (72" models only.)

$433.99

$

Usually ships in 2-12 days

0

20

Ferris 5049547B

WELD, CONTROL ARM, LH - 61" MODELS

Note: (61" models only.)

$410.99

$

Usually ships in 2-12 days

0

20

Ferris 5401000B

WELD, CONTROL ARM, LH - 72" MODELS

Note: (72" models only.)

$433.99

$

Usually ships in 2-12 days

0

21

Ferris 5045769B

WELD, CASTER YOKE
(Superseded to 5600096)

$127.99

$

In Stock, only 1 left!

0

22

TIRE ASSEMBLY

Note: (See Wheel & Tire Group)

$

$

Not available

23

Ferris 5402218B

WELD, CONTROL ARM - RH - RED (61" MODELS)

Note: (Serial No.: 2000676809 & Above)

$626.99

$

Usually ships in 2-12 days

0

24

Ferris 5402211B

WELD, CONTROL ARM - RH - RED (72" MODELS)

Note: (Serial No.: 2000676809 & Above)

$608.99

$

Usually ships in 2-12 days

0

25

Ferris 5402219B

WELD, CONTROL ARM - LH - RED (61" MODELS)

Note: (Serial No.: 2000676809 & Above)

$626.99

$

Usually ships in 2-12 days

0

26

Ferris 5402210B

WELD, CONTROL ARM - LH - RED (72" MODELS)

Note: (Serial No.: 2000676809 & Above)

$

$

Currently unavailable

27

Ferris 5109845

CAP, GREASE, LOW PROFILE
(Superseded to 5109845FS)

Note: (Serial No.: 2000676809 & Above)

$7.99

$

In Stock, Qty 20+

0

28

Ferris 5025448

NUT, 3/4-16 HEX JAM NYLON LOCK
(Superseded to 5025448SM)

Note: (Serial No.: 2000676809 & Above)

$3.49

$

In Stock, Qty 20+

0

29

Ferris 5025449

BELLEVILLE WASHER 1.500 X .755
(Superseded to 5025449SM)

Note: (Serial No.: 2000676809 & Above)

$4.99

$

Usually ships in 2-12 days

0

30

Ferris 5411934B

WELD, CASTER YOKE - RED
(Superseded to 5419196BFS)

Note: (Serial No.: 2000676809 & Above)

$198.99

$

In Stock, only 1 left!

0

31

Ferris 5025457

BOLT, 1/4-28 X 1/2, GD5 YZ
(Superseded to 5025457SM)

Note: (Serial No.: 2000676809 & Above)

$3.99

$

In Stock, only 3 left!

0

32

Ferris 5020883

BEARING CUP

Note: (Serial No.: 2000676809 & Above)

$8.99

$

Usually ships in 2-12 days

0
