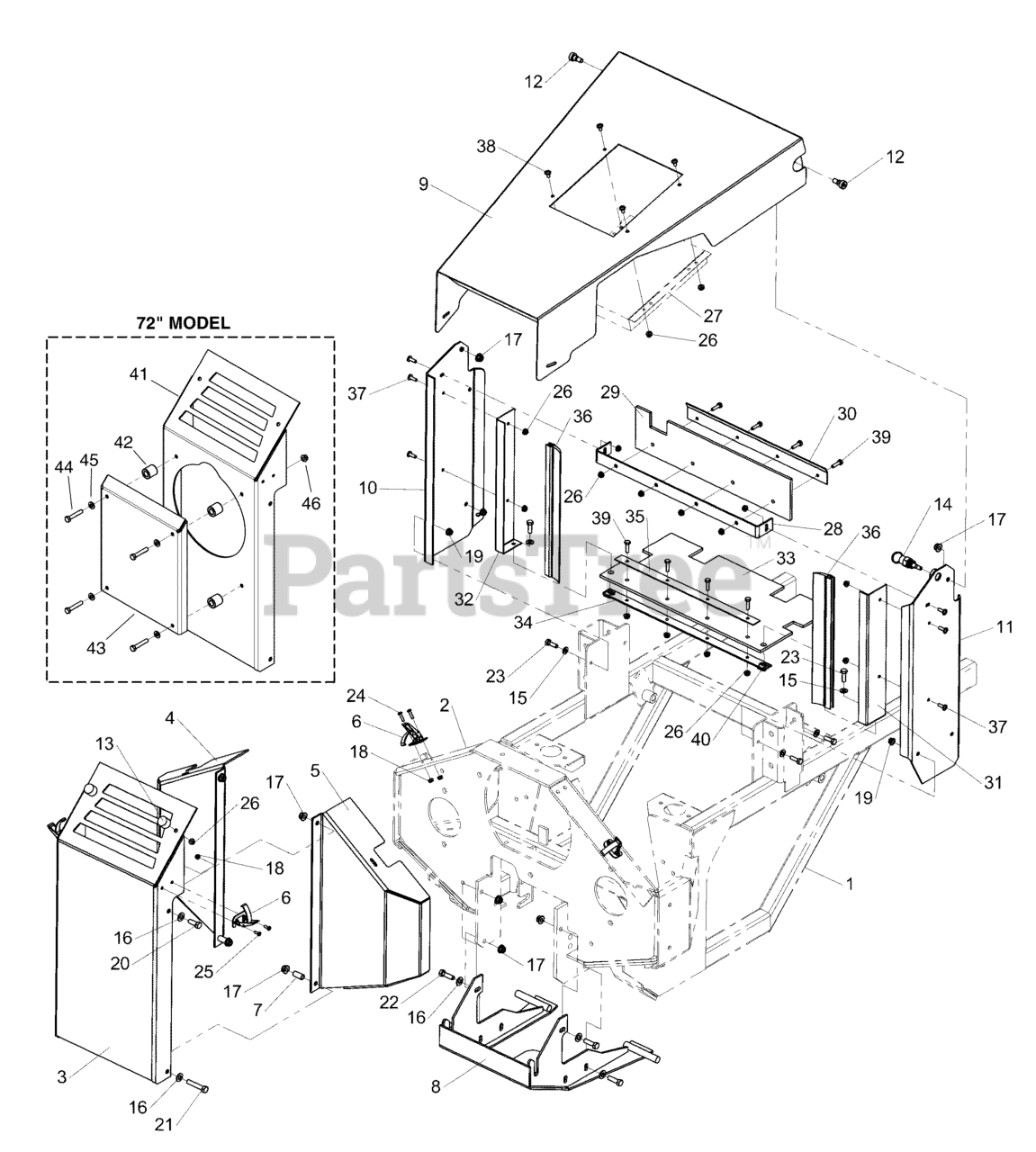

IS 4500Z (5901179) - Ferris IS4500Z Series 61" Zero-Turn Mower, 35hp Briggs & Stratton Hood, Bumper & Radiator Shroud Group - Gas Parts Diagram

IS4500Z Series 61" Zero-Turn Mower, 35hp Briggs & Stratton

Hood, Bumper & Radiator Shroud Group - Gas Parts Diagram

  • Title

1

MAIN FRAME

Note: (See Main Frame & Front Suspension Group)

$

$

Not available

2

PUMP PLATE

Note: (See Pump Mount & Drive Group)

$

$

Not available

3

Ferris 5049787B

BUMPER, CENTER

$136.99

$

Usually ships in 2-12 days

0

4

Ferris 5049785B

BUMPER SIDE, LH

$76.99

$

Usually ships in 2-12 days

0

5

Ferris 5049786B

BUMPER SIDE, RH

$76.99

$

Usually ships in 2-12 days

0

6

Ferris 5023305

HOOD LATCH

$

$

Not available

7

Ferris 5044959

SPACER, .38 X .50 X 1.00
(Superseded to 5044959FS)

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 5049620B

SKID PLATE

$

$

Currently unavailable

9

Ferris 5400045B

HOOD

$131.99

$

Usually ships in 2-12 days

0

10

Ferris 5061631B

SHROUD UPRIGHT, LH
(Superseded to 5400964B)

$94.99

$

Usually ships in 2-12 days

0

11

Ferris 5400180B

SHROUD UPRIGHT, RH

$

$

Currently unavailable

12

Ferris 5025356

SHOULDER BOLT, 1/2" X 3/8"
(Superseded to 5025356SM)

$6.99

$

In Stock, Qty 6

0

13

Ferris 5022673

RUBBER BUMPER
(Superseded to 5022673SM)

$18.99

$

In Stock, only 1 left!

0

14

Ferris 5100010

LATCH PIN

$

$

Currently unavailable

15

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

16

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

17

Ferris 5025394

NUT, 3/8-16 Hex Nylock Flange
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

18

Ferris 5025271

NUT, #10-24 Hex Nylon Lock
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

19

Ferris 5025392

NUT, 5/16-18 Hex Nylock Flange
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

20

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

21

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

22

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

23

Ferris 5025011X8

BOLT, 5/16-18 X 1"
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

24

Ferris 5025179X6

SCREW, #10-24 X 3/4"
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0

25

Ferris 5025179X4

SCREW, #10-24 x 1/2"

$

$

Currently unavailable

26

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

27

OIL COOLER

Note: (See Hydraulic Group)

$

$

Not available

28

Ferris 5400262B

BAR, HOOD SUPPORT

$

$

Currently unavailable

29

Ferris 5400263

RUBBER, RADIATOR FLAP

$

$

Currently unavailable

30

Ferris 5400264B

BAR, SUPPORT RADIATOR FLAP

$

$

Currently unavailable

31

Ferris 5400265B

SUPPORT, SCREEN RH

$

$

Currently unavailable

32

Ferris 5400266B

SUPPORT, SCREEN LH

$

$

Currently unavailable

33

Ferris 5400267

RUBBER, FLAP BOTTOM

$67.99

$

Usually ships in 2-12 days

0

34

Ferris 5400268B

BAR, RUBBER SUPPORT BOTTOM

$

$

Currently unavailable

35

Ferris 5400269B

SUPPORT, RUBBER

$

$

Currently unavailable

36

Ferris 5050926X14P38

WIPER SEAL, 14-3/8"

$

$

Currently unavailable

37

Ferris 5025299X6

USE 5106757 - SCREW,1/4-20X3/4, ZINC
(Superseded to 5106757)

$3.49

$

Usually ships in 2-12 days

0

38

Ferris 5025299X4

SCREW, Allen Head, 1/4-20 x 1/2
(Superseded to 5106469)

$2.49

$

In Stock, Qty 18

0

39

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

40

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

41

Ferris 5401362B

BUMPER, CENTER

Note: (72" model only)

$103.99

$

Usually ships in 2-12 days

0

42

Ferris 5049777

SPACER, .52 X 1.00 X 1.00
(Superseded to 5049777YP)

Note: (72" model only)

$11.99

$

Usually ships in 2-12 days

0

43

Ferris 5401363B

CLUTCH COVER PLATE

Note: (72" model only)

$39.99

$

Usually ships in 2-12 days

0

44

Ferris 5025011X14

BOLT, 5/16-18 X 1-3/4"
(Superseded to 5025011X14SM)

Note: (72" model only)

$3.99

$

In Stock, Qty 20+

0

45

Ferris 5025155

WASHER, 5/16" SAE

Note: (72" model only)

$

$

Currently unavailable

46

Ferris 5025392

NUT, 5/16-18 Hex Nylock Flange
(Superseded to 5025392FS)

Note: (72" model only)

$3.49

$

Usually ships in 2-12 days

0
