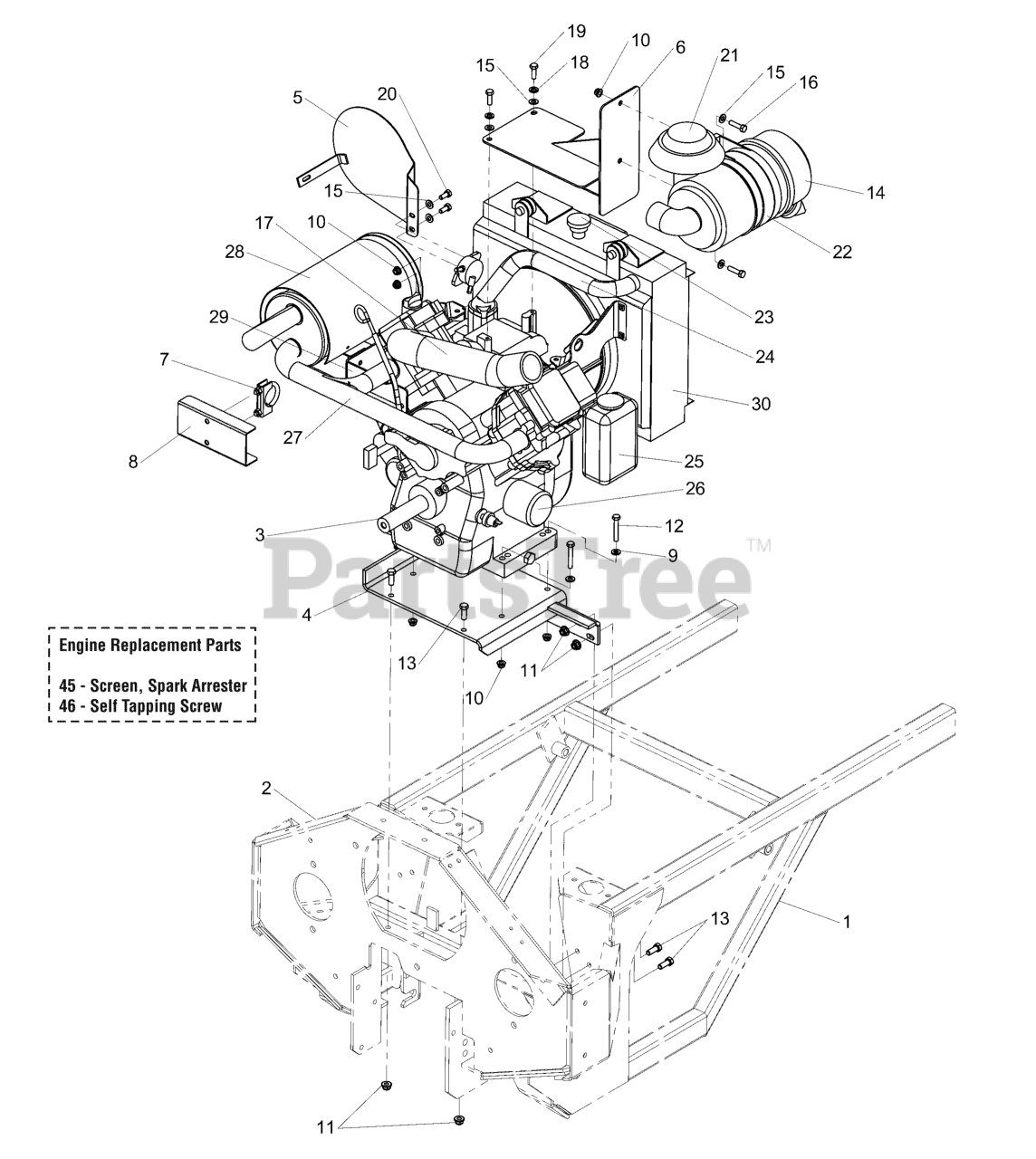

IS 4500Z (5901179) - Ferris IS4500Z Series 61" Zero-Turn Mower, 35hp Briggs & Stratton Engine, Radiator & Mount Group - Gas Parts Diagram

IS4500Z Series 61" Zero-Turn Mower, 35hp Briggs & Stratton

Engine, Radiator & Mount Group - Gas Parts Diagram

  • Title

1

MAIN FRAME

Note: (See Main Frame & Front Suspension Group)

$

$

Not available

2

PUMP PLATE

Note: (See Pump Mount & Drive Group)

$

$

Not available

3

ENGINE, Briggs & Stratton (Model 613177)

$

$

Not available

4

Ferris 5061612B

ENGINE PLATE

$

$

Currently unavailable

5

Ferris 5400208A

MUFFLER GUARD

$

$

Currently unavailable

6

Ferris 5400062B

AIR CLEANER MOUNT

$46.99

$

Usually ships in 2-12 days

0

7

Ferris 5022609X1

MUFFLER CLAMP, 1-1/2"
(Superseded to 5022609X1YP)

$9.49

$

Usually ships in 2-12 days

0

8

Ferris 5400160A

HEAT SHIELD

$7.49

$

Usually ships in 2-12 days

0

9

Ferris 5025292

WASHER, 5/16" GD. 9 Flat
(Superseded to 5025292SM)

$3.99

$

In Stock, Qty 17

0

10

Ferris 5025392

NUT, 5/16-18 Hex Nylock Flange
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5025394

NUT, 3/8-16 Hex Nylock Flange
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

12

Ferris 5025011X16

BOLT, 5/16-18 X 2"
(Superseded to 5025011X16YP)

$3.99

$

Usually ships in 2-12 days

0

13

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

14

Ferris 809218

AIR CLEANER ASSY
(Superseded to 809670)

Note: (includes filter element)

$235.99

$

In Stock, only 3 left!

0

15

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

16

Ferris 5025011X10

BOLT, 5/16-18 X 1-1/4"
(Superseded to 5025055X10YP)

$3.49

$

Usually ships in 2-12 days

0

17

Ferris 5061843

AIR INTAKE HOSE

$100.99

$

Usually ships in 2-12 days

0

18

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

19

Ferris 5025237X25

BOLT, M8-1.25 X 25MM GR 8.8
(Superseded to 5025237X25YP)

$3.99

$

Usually ships in 2-12 days

0

20

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

21

Ferris 593754

CAP, A/C RAIN
(Superseded to 593754FS)

Note: (includes clamp)

$60.99

$

Usually ships in 2-12 days

0

22

Ferris 807213

BRACKET, AIR CLEANER ASSY
(Superseded to 809878)

$65.99

$

In Stock, Qty 13

0

23

Ferris 809403

PRESSURE CAP

$45.99

$

Usually ships in 2-12 days

0

24

Ferris 841268

UPPER WATER HOSE

$

$

Currently unavailable

25

Ferris 842111

OVERFLOW BOTTLE

$76.99

$

Usually ships in 2-12 days

0

26

Ferris 842921

FILTER, OIL, BRIGGS & STRATTON

$14.99

$

In Stock, Qty 20+

0

27

Ferris 842212

EXHAUST MANIFOLD

$

$

Currently unavailable

28

Ferris 842213

MUFFLER

$586.99

$

Usually ships in 2-12 days

0

29

Ferris 842101

MUFFLER BRACKET

$111.99

$

Usually ships in 2-12 days

0

30

Ferris 841881

RADIATOR

Note: (pressure cap & screen included)

$1079.99

$

Usually ships in 2-12 days

0

31

Ferris 841497

AIR FILTER ELEMENT - Primary

Note: (not an illustrated part)

$34.99

$

In Stock, Qty 20+

0

32

Ferris 821136

AIR FILTER ELEMENT - Secondary

Note: (not an illustrated part)

$33.99

$

In Stock, Qty 8

0

33

Ferris 807190

AIR INTAKE HOSE CLAMP

Note: (not an illustrated part)

$

$

Currently unavailable

34

Ferris 809399

RADIATOR SCREEN

Note: (not an illustrated part)

$211.99

$

Usually ships in 2-12 days

0

35

Ferris 807425

LOWER WATER HOSE - Pump to Tee

Note: (not an illustrated part)

$26.99

$

Usually ships in 2-12 days

0

36

Ferris 807339

LOWER WATER HOSE TEE

Note: (not an illustrated part)

$21.99

$

Usually ships in 2-12 days

0

37

Ferris 809410

LOWER WATER HOSE - Tee to Radiator

Note: (not an illustrated part)

$9.99

$

Usually ships in 2-12 days

0

38

Ferris 841491

THERMOSTAT W/ GASKET

Note: (not an illustrated part)

$31.99

$

Usually ships in 2-12 days

0

39

Ferris 809397

THERMOSTAT GASKET ONLY

Note: (not an illustrated part)

$4.99

$

Usually ships in 2-12 days

0

40

Ferris 809895

OIL FILL CAP
(Superseded to 843464)

Note: (not an illustrated part)

$10.99

$

In Stock, only 1 left!

0

41

Ferris 841007

DIPSTICK

Note: (not an illustrated part)

$30.99

$

Usually ships in 2-12 days

0

42

Ferris 847429

FUEL PUMP

Note: (not an illustrated part)

$

$

Currently unavailable

43

Ferris 80025019

FILTER, FUEL
(Superseded to 84001895)

Note: (not an illustrated part)

$7.99

$

In Stock, Qty 20+

0

44

Ferris 5023445

SENDER, WATER TEMPERATURE

Note: (not an illustrated part)

$52.99

$

Usually ships in 2-12 days

0

45

Ferris 842859

SCREEN, ARRESTER
(Superseded to 843204)

Note: (not an illustrated part)

$136.99

$

Usually ships in 2-12 days

0

46

Ferris 5025470

SCREW,SELF-TAP,#8-32 X 3/8,WASH HEX, CZ
(Superseded to 5025470YP)

Note: (not an illustrated part)

$3.49

$

In Stock, only 2 left!

0

47

Ferris 5101492

TIE,SELF-LOCKING, 24"
(Superseded to 5101492YP)

Note: (not an illustrated part)

$3.49

$

Usually ships in 2-12 days

0
