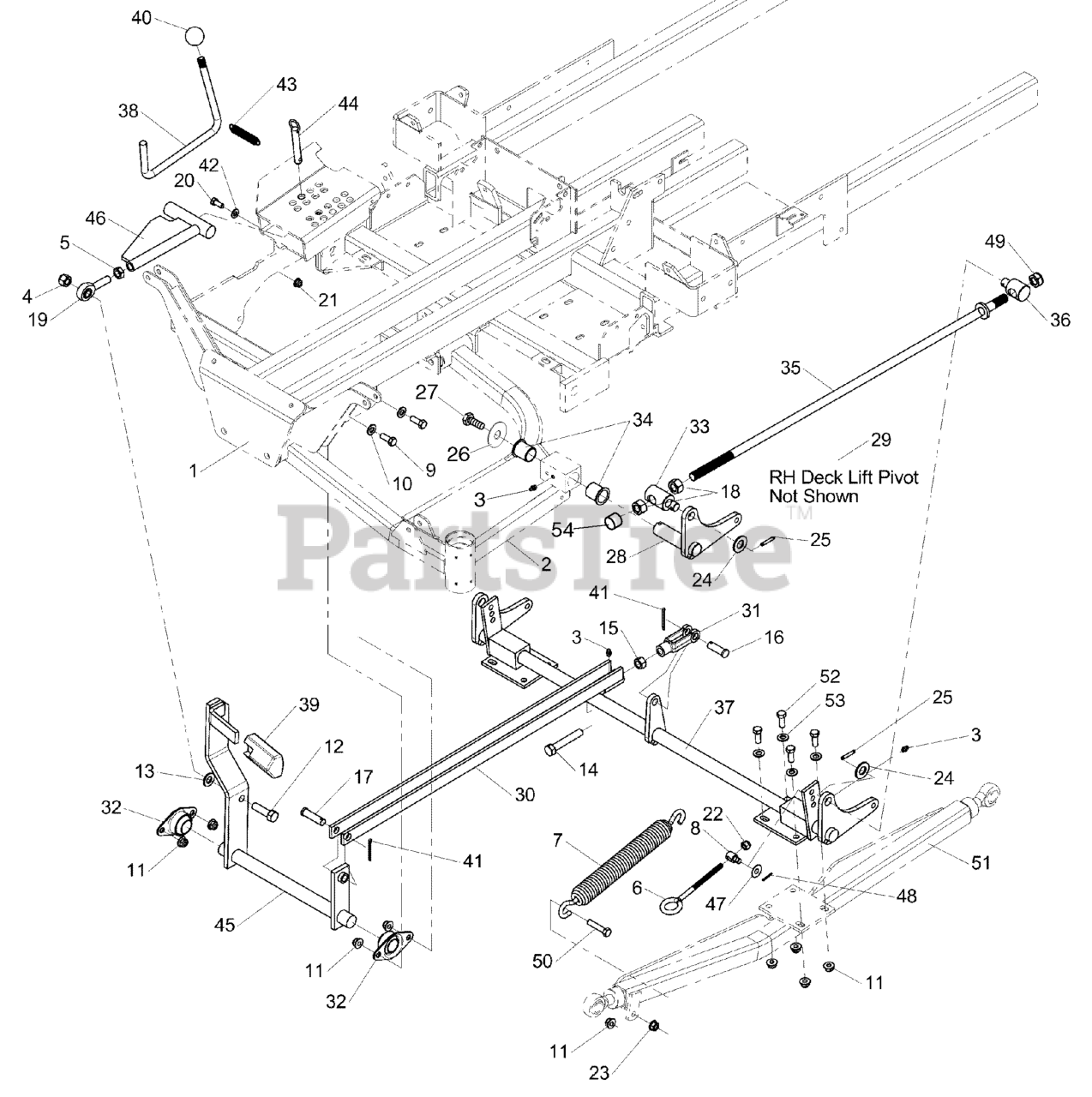

IS 4500Z (5901178) - Ferris IS4500Z Series Zero-Turn Mower, 35hp Briggs & Stratton Deck Lift Group (S/N: 2000729894 & Above) Parts Diagram

IS4500Z Series Zero-Turn Mower, 35hp Briggs & Stratton

Deck Lift Group (S/N: 2000729894 & Above) Parts Diagram

  • Title

1

MAIN FRAME

Note: (See Main Frame & Front Suspension Group)

$

$

Not available

2

CONTROL ARM

Note: (See Main Frame & Front Suspension Group)

$

$

Not available

3

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

4

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

In Stock, only 2 left!

0

5

Ferris 5025089

NUT, 1/2-20 HEX JAM
(Superseded to 5025089SM)

$3.99

$

In Stock, Qty 19

0

6

Ferris 5021812

EYE BOLT, 3/8-16 X 6", 1" EYE
(Superseded to 5021812SM)

$5.99

$

In Stock, Qty 18

0

7

Ferris 5023392

DECK LIFT SPRING
(Superseded to 5023392YP)

$74.99

$

Usually ships in 2-12 days

0

8

Ferris 5045947

ADJUSTER, BRAKE LINKAGE

$24.99

$

Usually ships in 2-12 days

0

9

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 1 left!

0

10

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5025394

NUT, 3/8-16 Hex Nylock Flange
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

12

Ferris 5025018X14

BOLT, 1/2-20 X 1-3/4" GD8 CZ
(Superseded to 5025018X14FS)

$2.99

$

Usually ships in 2-12 days

0

13

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 13

0

14

Ferris 5025018X28

BOLT, 1/2-20 X 3-1/2" GD5 YZ
(Superseded to 5025018X28SM)

$4.49

$

In Stock, Qty 5

0

15

NUT, 1/2-20 HEX

$

$

Not available

16

Ferris 5025328X12

PIN,CLEVIS, 1/2 X 1 1/2, YZP
(Superseded to 5025328X12SM)

$4.99

$

In Stock, only 2 left!

0

17

Ferris 5023450

PIN, CLEVIS, 1/2 X 1-3/4 YZP

$4.99

$

Usually ships in 2-12 days

0

18

Ferris 5025040

NUT, 5/8-11 HEX
(Superseded to 5025040SM)

$3.49

$

In Stock, Qty 6

0

19

Ferris 5022434

BALL JOINT, 1/2-20, MALE
(Superseded to 5022434SM)

$42.99

$

In Stock, only 2 left!

0

20

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

21

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

22

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

23

Ferris 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

24

Ferris 5025450

WASHER, SHIM, 5/8 X 18 GA YZ

$2.99

$

In Stock, Qty 5

0

25

Ferris 5022366

PIN, 3/16" X 1-1/4" SPRING
(Superseded to 5022366SM)

$3.49

$

Usually ships in 2-12 days

0

26

Ferris 5100548

WASHER, .390 X 1.50 X .109, YZ
(Superseded to 5100548SM)

$4.49

$

Usually ships in 2-12 days

0

27

Ferris 5025443

BOLT, 3/8-16 X 3/4, PLT W/PATCH
(Superseded to 5025443SM)

$3.49

$

Usually ships in 2-12 days

0

28

Ferris 5402814B

PIVOT,DECK LIFT WELD,LEFT
(Superseded to 5402814A)

$58.99

$

Usually ships in 2-12 days

0

29

Ferris 5402815B

USE 5402815A -PIVOT,DECK LIFT WELD,RIGHT
(Superseded to 5402815AFS)

Note: (Not Shown)

$58.99

$

Usually ships in 2-12 days

0

30

Ferris 5049665B

WELD, DECK LIFT LINK - RED

$74.99

$

Usually ships in 2-12 days

0

31

Ferris 5023174

CLEVIS , 1/2-20, STEEL
(Superseded to 5023174SM)

$16.99

$

Usually ships in 2-12 days

0

32

Ferris 5022379

TRIANGLE BEARING

$

$

Currently unavailable

33

Ferris 5045856

SPRING ROD PIVOT

$

$

Currently unavailable

34

Ferris 5023343

BUSHING, 1.00 X 1.13 X 1.38, PLASTIC
(Superseded to 5023343SM)

$6.49

$

Usually ships in 2-12 days

0

35

Ferris 5049642

ROD, DECK ADJUSTMENT

$77.99

$

Usually ships in 2-12 days

0

36

Ferris 5045447

PIVOT, SPRING ROD
(Superseded to 5045447SM)

$25.99

$

Usually ships in 2-12 days

0

37

Ferris 5049592B

WELD, DECK LIFT SHAFT - RED

$205.99

$

Usually ships in 2-12 days

0

38

Ferris 5061116B

WELD, DECK LIFT LOCK ROD - RED
(Superseded to 5061116BFS)

$40.99

$

Usually ships in 2-12 days

0

39

Ferris 5104262

PEDAL, Rubber
(Superseded to 5104262YP)

$10.99

$

In Stock, only 1 left!

0

40

Ferris 5021733

KNOB, PLASTIC, 1/2-13
(Superseded to 5021733SM)

$9.49

$

In Stock, only 2 left!

0

41

Ferris 5025203X10

PIN, COTTER, 1/8 X 1-1/4
(Superseded to 5025203X10SM)

$3.99

$

In Stock, only 1 left!

0

42

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

43

Ferris 5020639

SPRING, EXTENSION
(Superseded to 5020639SM)

$31.99

$

Usually ships in 2-12 days

0

44

Ferris 5022045

PIN, 1/2 x 3
(Superseded to 5022045SM)

$14.99

$

Usually ships in 2-12 days

0

45

Ferris 5049799B

DECK LIFT PEDAL SHAFT - RED

$72.99

$

Usually ships in 2-12 days

0

46

Ferris 5061119B

DECK ADJUST LINK - RED

$61.99

$

Usually ships in 2-12 days

0

47

Ferris 5100146

WASHER, .389 X 1.00 X .020, STAINLESS
(Superseded to 5100146FS)

$2.99

$

Usually ships in 2-12 days

0

48

Ferris 80002736

PIN, 3/32 X 0.750, COT, ZINC/CLEAR
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

49

Ferris 5025282

NUT, 5/8-11 HEX JAM NYLON LOCK
(Superseded to 5025282FS)

$5.99

$

Usually ships in 2-12 days

0

50

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 2 left!

0

51

SUSPENSION LINK

Note: (See Rear Suspension Group)

$

$

Not available

52

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

53

Ferris 5025293

WASHER, 3/8" GD.9 FLAT
(Superseded to 5025293SM)

$3.99

$

In Stock, Qty 5

0

54

Ferris 5101028

CAP, VINYL - .562 X .750 - BLK

$

$

Currently unavailable
