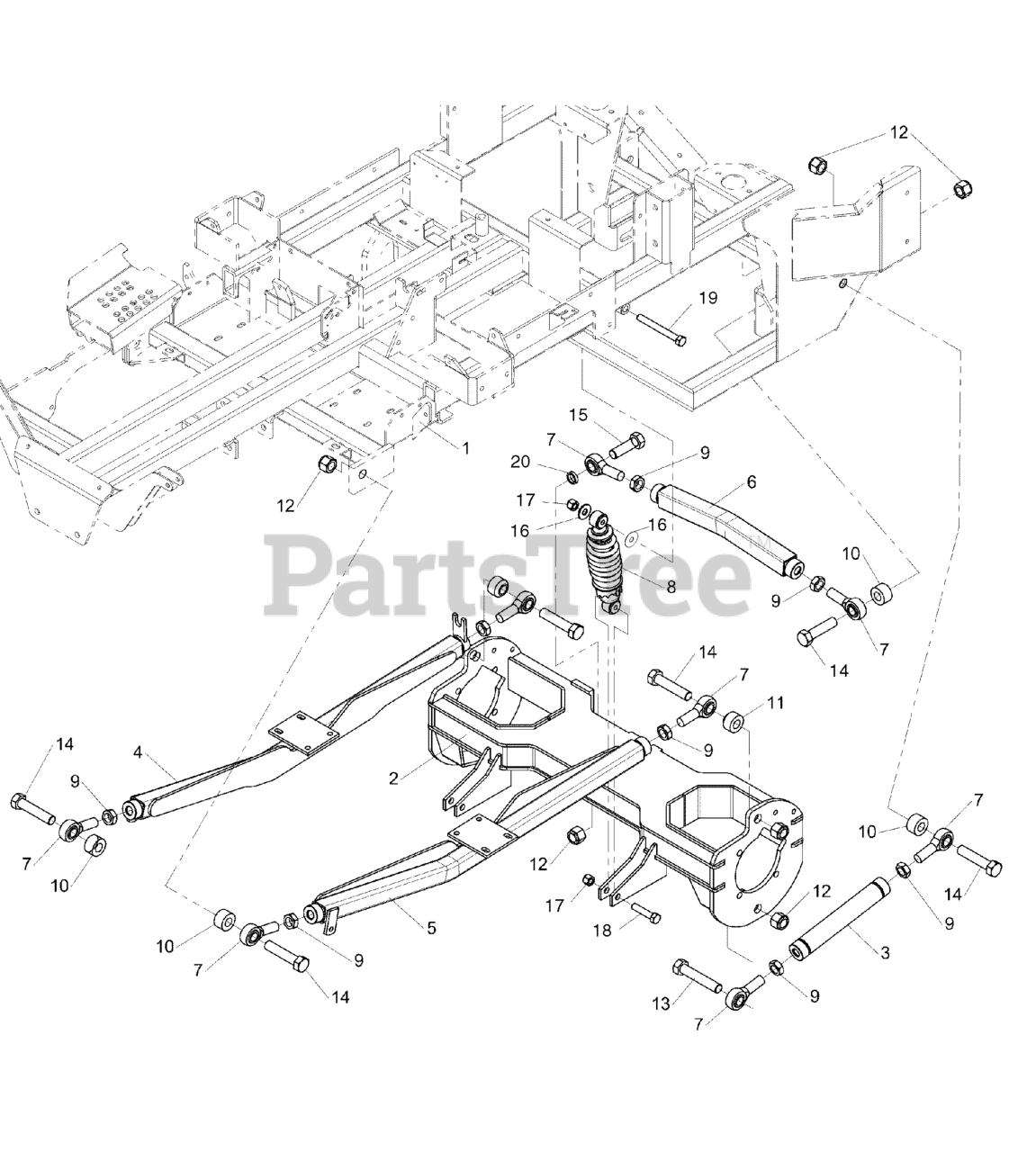

  • Title
1

MAIN FRAME

Note: (See Main Frame & Front Suspension Group)

$

$

Not available

2

Ferris 5049602B

WELD, REAR END

$706.99

$

Usually ships in 2-12 days

0

3

Ferris 5049556B

WELD, REAR LINK

$111.99

$

Usually ships in 2-12 days

0

4

Ferris 5049550B

WELD, FRONT, LINK - RH

$

$

Currently unavailable

5

Ferris 5049551B

WELD, FRONT, LINK - LH

$

$

Currently unavailable

6

Ferris 5049552B

WELD, BAR, PANHARD

$

$

Currently unavailable

7

Ferris 5022039

BALL JOINT, 3/4-16, MALE
(Superseded to 5022039SM)

$37.99

$

In Stock, Qty 13

0

8

Ferris 5023384

SHOCK, REAR, IS4500
(Superseded to 5023384FS)

$195.99

$

Usually ships in 2-12 days

0

9

Ferris 5025093

NUT, 3/4-16 HEX JAM
(Superseded to 5025093SM)

$4.49

$

In Stock, only 1 left!

0

10

Ferris 5061256

SPACER, .75 X 1.50 X .88

$15.99

$

Usually ships in 2-12 days

0

11

Ferris 5046093

SPACER, .75 X 1.50 X 1.00
(Superseded to 5046093SM)

$10.99

$

Usually ships in 2-12 days

0

12

Ferris 5025284

NUT, 3/4-16 HEX NYLON LOCK
(Superseded to 5025284SM)

$3.49

$

In Stock, only 3 left!

0

13

Ferris 5025265X32

BOLT, 3/4-16 X 4" YZ GD5
(Superseded to 5025265X32SM)

$4.99

$

Usually ships in 2-12 days

0

14

Ferris 5025265X28

BOLT, 3/4-16 X 3-1/2" YZ GD5
(Superseded to 5025265X28SM)

$15.99

$

Usually ships in 2-12 days

0

15

Ferris 5025265X20

BOLT, 3/4-16 X 2-1/2" YZ GD5
(Superseded to 5025265X20YP)

$10.99

$

Usually ships in 2-12 days

0

16

Ferris 5025150

WASHER, 1/2" USS
(Superseded to 5025150SM)

$3.99

$

In Stock, only 2 left!

0

17

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

18

Ferris 5025017X18

BOLT, 1/2-13 X 2-1/4" GD5 CZ
(Superseded to 5025017X18SM)

$5.99

$

Usually ships in 2-12 days

0

19

Ferris 5025017X36

BOLT, 1/2-13 X 4-1/2" GD5
(Superseded to 5025017X36SM)

$6.49

$

In Stock, only 2 left!

0

20

Ferris 5047461

SPACER, .76 X 1.00 X .25
(Superseded to 5047461SM)

$4.99

$

Usually ships in 2-12 days

0
