IS 4500Z (5900719) - Ferris IS4500Z Series 61" Zero-Turn Mower, 28hp Caterpillar Diesel Parking Brake Group Parts Diagram

IS4500Z Series 61" Zero-Turn Mower, 28hp Caterpillar Diesel

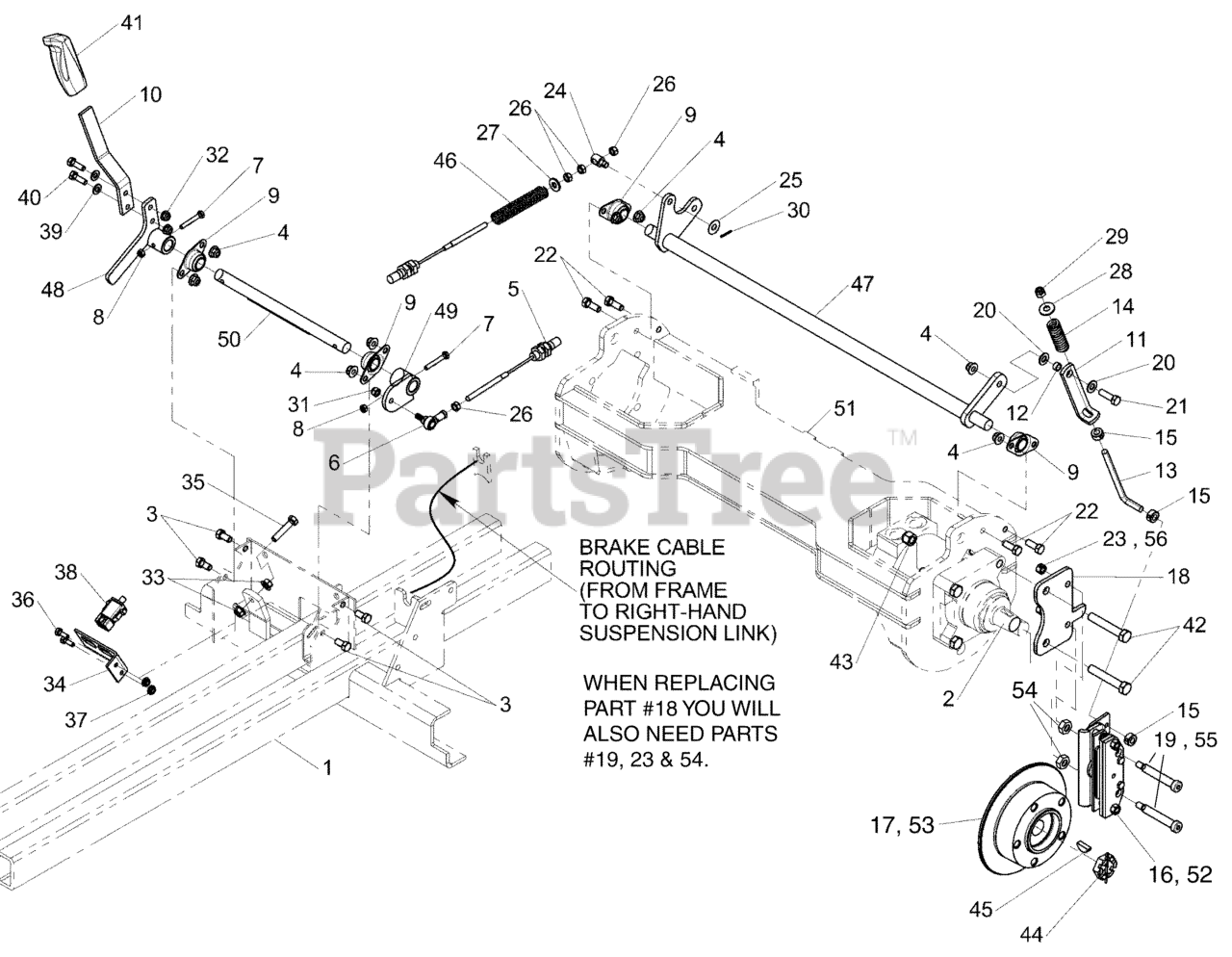

Parking Brake Group Parts Diagram

  • Title

1

MAIN FRAME

Note: (See Main Frame & Front Suspension Group)

$

$

Not available

2

WHEEL MOTOR

Note: (See Hydraulic Group)

$

$

Not available

3

Ferris 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

4

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

5

Ferris 5023362

CABLE, PARKING BRAKE - IS4500

$112.99

$

In Stock, only 1 left!

0

6

Ferris 5104833FS

JOINT, Ball

$18.99

$

Usually ships in 2-12 days

0

7

Ferris 5025010X12

BOLT, 1/4-20 X 1-1/2", GD5
(Superseded to 5025010X12SM)

$2.99

$

Usually ships in 2-12 days

0

8

Ferris 5025287

NUT, 1/4-20 HEX SIDE LOCK
(Superseded to 5025287SM)

$2.99

$

Usually ships in 2-12 days

0

9

Ferris 5021098

BEARING, BRONZE FLANGE, 3/4
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 5

0

10

Ferris 5061121B

HANDLE, BRAKE

$

$

Currently unavailable

11

Ferris 5047084A

LINK, BRAKE LOCK - BLK

$

$

Currently unavailable

12

Ferris 5041930

SPACER, .38 X .50 X .27
(Superseded to 5041930SM)

$4.99

$

Usually ships in 2-12 days

0

13

Ferris 5047091

ROD, BRAKE ADJUSTMENT

$

$

Currently unavailable

14

Ferris 5022361

SPRING, BRAKE
(Superseded to 5022361SM)

$9.99

$

Usually ships in 2-12 days

0

15

Ferris 5010546

COLLAR, 3/8" SET
(Superseded to 5010546SM)

$5.99

$

Usually ships in 2-12 days

0

16

Ferris 5023299

CALIPER, MECHANICAL, BRAKE

Note: (S/N: 2000600166 & Below)

$182.99

$

Usually ships in 2-12 days

0

17

Ferris 5100775

WHEEL HUB, COMPACT CALIPER (86720)
(Superseded to 5100775YP)

Note: (S/N: 2000600166 & Below)

$301.99

$

Usually ships in 2-12 days

0

18

Ferris 5049391B

MOUNT, BRAKE CALIPER

$31.99

$

Usually ships in 2-12 days

0

19

Ferris 5025017X32

BOLT, 1/2-13 X 4" GD5 CZ
(Superseded to 5025017X32YP)

Note: (S/N: 2012670027 & Above)

$6.49

$

In Stock, only 4 left!

0

20

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

21

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

22

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

23

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

Note: (S/N: 2012670027 & Above)

$4.49

$

In Stock, only 1 left!

0

24

Ferris 5045947

ADJUSTER, BRAKE LINKAGE

$24.99

$

Usually ships in 2-12 days

0

25

Ferris 5100146

WASHER, .389 X 1.00 X .020, SS
(Superseded to 5100146FS)

$2.99

$

Usually ships in 2-12 days

0

26

Ferris 5025033

NUT, 5/16-24 HEX
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

27

Ferris 5025164

WASHER, 5/16" FENDER
(Superseded to 5025164SM)

$3.99

$

In Stock, only 1 left!

0

28

Ferris 5025401

WASHER, 3/8" USS
(Superseded to 5025401YP)

$3.99

$

Usually ships in 2-12 days

0

29

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

30

Ferris 80002736

PIN, 3/32 X 0.750, COT, ZINC/CLEAR
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

31

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

32

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

33

Ferris 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

34

Ferris 5045621B

BRACKET, SWITCH MOUNT

$18.99

$

Usually ships in 2-12 days

0

35

Ferris 5025058X16

BOLT, 3/8-16 X 2" GD5 TFL CZ
(Superseded to 5025058X16SM)

$2.99

$

Usually ships in 2-12 days

0

36

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

37

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

38

Ferris 7022886

SWITCH, DP NO/NC SNAP-IN
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

39

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

40

Ferris 5025011X8

BOLT, 5/16-18 X 1" GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

41

Ferris 5100171

GRIP, BLACK FLEXIBLE
(Superseded to 5100171SM)

$13.99

$

In Stock, only 2 left!

0

42

Ferris 5025018X24

BOLT, 1/2-20 X 3" GD5 YZ
(Superseded to 5025018X24SM)

$4.99

$

Usually ships in 2-12 days

0

43

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

In Stock, only 2 left!

0

44

Ferris 5022042X3

NUT & COTTER PIN
(Superseded to 5022042X3SM)

$34.99

$

In Stock, only 1 left!

0

45

Ferris 5022042X2

KEY
(Superseded to 5022042X2SM)

$10.99

$

In Stock, only 1 left!

0

46

Ferris 5021494

SPRING, COMPRESSION, 5-1/2"
(Superseded to 5021494SM)

$13.99

$

Usually ships in 2-12 days

0

47

Ferris 5061249B

WELD, BRAKE SHAFT

$134.99

$

Usually ships in 2-12 days

0

48

Ferris 5061123B

WELD, BRAKE LINK

$43.99

$

Usually ships in 2-12 days

0

49

Ferris 5061332B

WELD, PIVOT LINKAGE MOUNT

$41.99

$

Usually ships in 2-12 days

0

50

Ferris 5400027B

WELD, SHAFT, BRAKE LEVER - RED

$

$

Currently unavailable

51

REAR END ASSEMBLY

Note: (See Rear Suspension Group)

$

$

Not available

52

Ferris 5100774

COMPACT CALIPER, AUSCO
(Superseded to 5100774YP)

Note: (S/N: 2000600167 & Above)

$186.99

$

Usually ships in 2-12 days

0

53

Ferris 5100775

WHEEL HUB, COMPACT CALIPER (86720)
(Superseded to 5100775YP)

Note: (S/N: 2000600167 & Above)

$301.99

$

Usually ships in 2-12 days

0

54

Ferris 5025301

NUT, 1/2-13 HEX JAM
(Superseded to 5025301SM)

Note: (S/N: 2012670027 & Above)

$3.49

$

In Stock, only 1 left!

0

55

Ferris 5025400

BOLT, 3/8-16 x 2-3/4, 1/2 SHOULDER

Note: (S/N: 2012670026 & Below)

$14.99

$

Usually ships in 2-12 days

0

56

Ferris 5025100

NUT, 3/8-16 HEX SIDE LOCK
(Superseded to 5025100SM)

Note: (S/N: 2012670026 & Below)

$3.49

$

In Stock, Qty 20+

0
