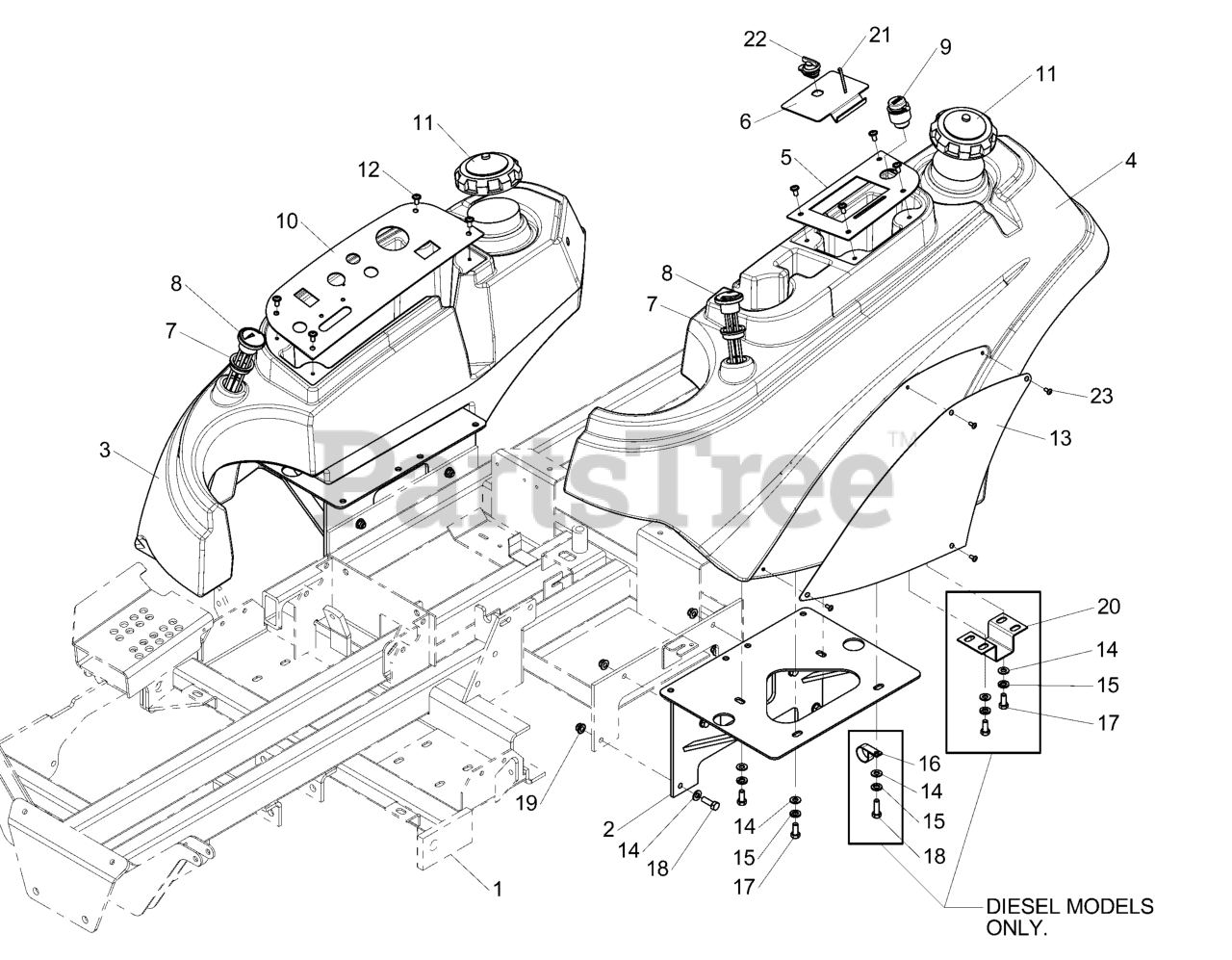

IS 4500Z (5900719) - Ferris IS4500Z Series 61" Zero-Turn Mower, 28hp Caterpillar Diesel Fuel Tank & Mount Group Parts Diagram

IS4500Z Series 61" Zero-Turn Mower, 28hp Caterpillar Diesel

Fuel Tank & Mount Group Parts Diagram

  • Title

1

MAIN FRAME

Note: (See Main Frame & Front Suspension Group)

$

$

Not available

2

Ferris 5049507B

WELD, FUEL TANK

$

$

Currently unavailable

3

Ferris 5061298

TANK, FUEL, DIESEL, RH

$586.99

$

Usually ships in 2-12 days

0

3

Ferris 5061539

FUEL TANK, GAS, RH

Note: (Includes Ref No. 7 & 8)

$509.99

$

Usually ships in 2-12 days

0

4

Ferris 5061299

TANK, FUEL, DIESEL, LH

$586.99

$

Usually ships in 2-12 days

0

4

Ferris 5061540

FUEL TANK, GAS, LH

Note: (Includes Ref No. 7 & 8)

$521.99

$

Usually ships in 2-12 days

0

5

Ferris 5061310A

PANEL, CONTROL - LH
(Superseded to 5421826AAFS)

$49.99

$

Usually ships in 2-12 days

0

6

Ferris 5061406A

COVER, CONTROL PANEL
(Superseded to 5421824AAFS)

$37.99

$

Usually ships in 2-12 days

0

7

Ferris 5022917X1

GROMMET
(Superseded to 5022917X1SM)

$6.99

$

In Stock, only 4 left!

0

8

Ferris 5022917

GAUGE, FUEL, 12
(Superseded to 5022917FS)

$48.99

$

Usually ships in 2-12 days

0

9

Ferris 5100016

POWER, OUTLET - 12 VOLT
(Superseded to 5100016FS)

$29.99

$

Usually ships in 2-12 days

0

10

CONTROL PANEL

Note: (See Instrument Panel Group)

$

$

Not available

11

Ferris 5022915

CAP, FUEL TANK (DIESEL)

Note: (Diesel Models only)

$50.99

$

In Stock, only 2 left!

0

11

Ferris 5101651

CAP, GASOLINE, VENTED
(Superseded to 5101651SM)

Note: (Gas Model only)

$30.99

$

In Stock, Qty 20+

0

12

Ferris 5025299X4

SCREW, 1/4-20 X 1/2" ALLEN BH
(Superseded to 5106469)

$2.49

$

In Stock, Qty 20+

0

13

Ferris 5061301B

PLATE, BADGE, IS4500Z
(Superseded to 5061301BFS)

$40.99

$

Usually ships in 2-12 days

0

14

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

15

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

16

Ferris 5023263

CLAMP, VINYL
(Superseded to 5023263SM)

$3.49

$

Usually ships in 2-12 days

0

17

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

18

Ferris 5025011X8

BOLT, 5/16-18 X 1" GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

19

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

20

Ferris 5047993B

GUARD, FUEL TANK SHUT-OFF

$13.99

$

Usually ships in 2-12 days

0

21

Ferris 5025203X10

PIN, COTTER, 1/8 X 1-1/4
(Superseded to 5025203X10SM)

Note: (installed with head on the bottom)

$3.99

$

In Stock, only 1 left!

0

22

Ferris 5023395

LATCH, CONTROL PANEL

$33.99

$

Usually ships in 2-12 days

0

23

Ferris 5025386

SCREW, #10-24 X 3/8" ALLEN BHBZ
(Superseded to 5025386SM)

$3.99

$

In Stock, only 2 left!

0
