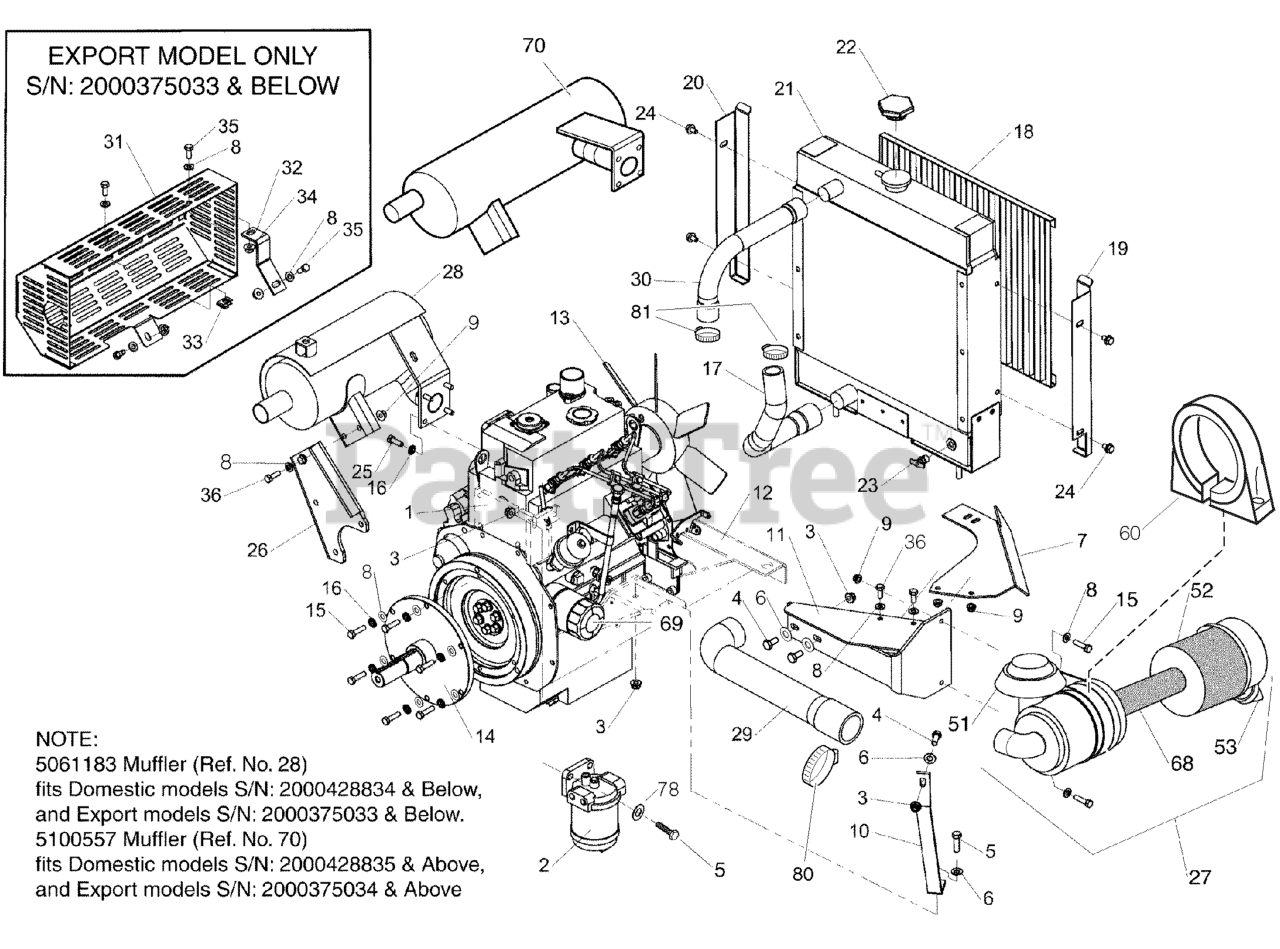

IS 4500Z (5900719) - Ferris IS4500Z Series 61" Zero-Turn Mower, 28hp Caterpillar Diesel Engine & Radiator Accessories Group - Diesel Parts Diagram

IS4500Z Series 61" Zero-Turn Mower, 28hp Caterpillar Diesel

Engine & Radiator Accessories Group - Diesel Parts Diagram

  • Title

1

FUEL FILTER MOUNT

Note: (See Engine, Radiator & Mount Group - Diesel)

$

$

Not available

2

Ferris 5022883X19B

FUEL FILTER ASSEMBLY (19B & 19C)

$263.99

$

Usually ships in 2-12 days

0

2

Ferris 5022883X19C

FUEL FILTER ELEMENT ONLY

$28.99

$

Usually ships in 2-12 days

0

3

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

4

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

5

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

6

Ferris 5025293

WASHER, 3/8" GD.9 FLAT
(Superseded to 5025293SM)

$3.99

$

In Stock, Qty 5

0

7

Ferris 5049756B

BAR, AIR FILTER MOUNT
(Superseded to 5049756BFS)

$21.99

$

Usually ships in 2-12 days

0

8

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

9

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

10

Ferris 5061597B

SUPPORT, AIR FILTER

$10.99

$

Usually ships in 2-12 days

0

11

Ferris 5049755B

WELD, AIR FILTER MOUNT

$113.99

$

Usually ships in 2-12 days

0

12

ENGINE & RADIATOR MOUNT

Note: (See Engine, Radiator & Mount Group - Diesel)

$

$

Not available

13

ENGINE, 28HP Caterpillar

Note: (See Engine, Radiator & Mount Group - Diesel)

$

$

Not available

14

Ferris 5049412

SHAFT, 3011C PTO

$420.99

$

Usually ships in 2-12 days

0

15

Ferris 5025011X10

BOLT, 5/16-18 X 1-1/4" GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

Usually ships in 2-12 days

0

16

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

17

Ferris 5023293

HOSE, LOWER RADIATOR

$78.99

$

In Stock, only 2 left!

0

18

Ferris 5023294

RADIATOR SCREEN

$120.99

$

Usually ships in 2-12 days

0

19

Ferris 5049627B

BRACKET, SCREEN MOUNT, RH

$

$

Currently unavailable

20

Ferris 5049626B

BRACKET, SCREEN MOUNT, LH

$

$

Currently unavailable

21

RADIATOR

Note: (See Engine, Radiator & Mount Group - Diesel)

$

$

Not available

22

Ferris 5023150

CAP, RADIATOR - NET

$24.99

$

Usually ships in 2-12 days

0

23

Ferris 5023151

PETCOCK VALVE

$10.99

$

Usually ships in 2-12 days

0

24

Ferris 5023158

BOLT, 5/16-18 X 1/2" FLANGE SPECIAL
(Superseded to 5023158FS)

$5.49

$

Usually ships in 2-12 days

0

25

Ferris 5025237X25

BOLT, M8-1.25 X 25MM GR 8.8
(Superseded to 5025237X25YP)

$3.99

$

Usually ships in 2-12 days

0

26

Ferris 5049774B

MOUNT, MUFFLER

$

$

Currently unavailable

27

Ferris 809218

AIR CLEANER ASSY
(Superseded to 809670)

$235.99

$

In Stock, only 4 left!

0

28

Ferris 5061183

MUFFLER
(Superseded to 5100557)

Note: (Domestic models S/N: 2000428834 & Below, Export models S/N: 2000375033 & Below

$480.99

$

Usually ships in 2-12 days

0

29

Ferris 5023311

AIR FILTER HOSE

$

$

Currently unavailable

30

Ferris 5100204

UPPER RADIATOR HOSE

$141.99

$

Usually ships in 2-12 days

0

31

Ferris 5400596

MUFFLER GUARD

Note: (Export model only. S/N: 2000375033 & Below.)

$

$

Currently unavailable

32

Ferris 5400185

MUFFLER GUARD BRACKET

Note: (Export model only. S/N: 2000375033 & Below.)

$

$

Currently unavailable

33

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 5

0

34

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

35

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

36

Ferris 5025011X8

BOLT, 5/16-18 X 1" GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

37

Ferris 5100201

OIL FILL CAP

Note: (not an illustrated part)

$18.99

$

Usually ships in 2-12 days

0

38

Ferris 5100202

FUEL SOLENOID

Note: (not an illustrated part)

$597.99

$

Usually ships in 2-12 days

0

39

Ferris 5100203

WATER PUMP

Note: (not an illustrated part)

$769.99

$

Usually ships in 2-12 days

0

40

Ferris 5100205

WATER PUMP GASKET

Note: (not an illustrated part)

$32.99

$

Usually ships in 2-12 days

0

41

Ferris 5100206

THERMOSTAT

Note: (not an illustrated part)

$68.99

$

Usually ships in 2-12 days

0

42

Ferris 5100207

THERMOSTAT GASKET

Note: (not an illustrated part)

$

$

Not available

43

Ferris 5100208

DIPSTICK

Note: (not an illustrated part)

$53.99

$

Usually ships in 2-12 days

0

44

Ferris 5100209

OIL PAN PLUG

Note: (not an illustrated part)

$41.99

$

Usually ships in 2-12 days

0

45

Ferris 5100210

STARTER MOTOR

Note: (not an illustrated part)

$1997.99

$

Usually ships in 2-12 days

0

46

Ferris 5100211

ALTERNATOR

Note: (not an illustrated part)

$1265.99

$

Usually ships in 2-12 days

0

47

Ferris 5100212

BELT

Note: (not an illustrated part)

$58.99

$

Usually ships in 2-12 days

0

48

Ferris 5100213

FUEL PUMP
(Superseded to 5022883X26)

Note: (not an illustrated part)

$158.99

$

Usually ships in 2-12 days

0

49

Ferris 5100214

FUEL PUMP GASKET

Note: (not an illustrated part)

$5.49

$

Usually ships in 2-12 days

0

50

Ferris 5100215

GLOW PLUG

Note: (not an illustrated part)

$309.99

$

Usually ships in 2-12 days

0

51

Ferris 593754

CAP, A/C RAIN
(Superseded to 593754FS)

$60.99

$

Usually ships in 2-12 days

0

52

Ferris 841237

ELEMENT ASSY

$36.99

$

Usually ships in 2-12 days

0

53

Ferris 5022883X32

AIR CLEANER DUST VALVE
(Superseded to 842473)

$17.99

$

Usually ships in 2-12 days

0

54

Ferris 5100220

EXHAUST MANIFOLD GASKET

Note: (not an illustrated part)

$35.99

$

Usually ships in 2-12 days

0

55

Ferris 5100221

OIL PRESSURE SWITCH

Note: (not an illustrated part)

$122.99

$

Usually ships in 2-12 days

0

56

Ferris 5100222

WATER TEMPERATURE SWITCH

Note: (not an illustrated part)

$200.99

$

Usually ships in 2-12 days

0

57

Ferris 5022883X8

SEAL, OIL FILL

Note: (not an illustrated part)

$23.99

$

Usually ships in 2-12 days

0

58

Ferris 5100224

REAR MAIN SEAL

Note: (not an illustrated part)

$299.99

$

Usually ships in 2-12 days

0

59

Ferris 5100225

FRONT MAIN SEAL

Note: (not an illustrated part)

$77.99

$

Usually ships in 2-12 days

0

60

Ferris 807213

BRACKET, AIR CLEANER ASSY
(Superseded to 809878)

$65.99

$

In Stock, Qty 14

0

61

Ferris 5100229

INJECTOR ASSEMBLY

Note: (not an illustrated part)

$496.99

$

Usually ships in 2-12 days

0

62

Ferris 5022883X10

WASHER, FUEL SOLENOID

Note: (not an illustrated part)

$22.99

$

Usually ships in 2-12 days

0

63

Ferris 5022883X22

WASHER, OIL DRAIN PLUG

Note: (not an illustrated part)

$21.99

$

Usually ships in 2-12 days

0

64

Ferris 5100235

PARTS MANUAL, ENGINE

Note: (not an illustrated part)

$

$

Currently unavailable

65

Ferris 5100234

VALVE COVER GASKETS

Note: (not an illustrated part)

$68.99

$

Usually ships in 2-12 days

0

66

Ferris 5022883X34

EXPANSION TANK, Complete

Note: (Includes Ref. No. 67, not an illustrated part)

$213.99

$

Usually ships in 2-12 days

0

67

Ferris 5022883X35

CAP

Note: (not an illustrated part)

$57.99

$

Usually ships in 2-12 days

0

68

Ferris 841238

AIR FILTER ELEMENT (SECONDARY)

$40.99

$

Usually ships in 2-12 days

0

69

Ferris 5022883X11

ENGINE OIL FILTER

$40.99

$

Usually ships in 2-12 days

0

70

Ferris 5100557

MUFFLER, 3011C CAT ENGINE - CE

Note: (Domestic models S/N: 2000428835 & Above, Export Models 2000375034 & Above.)

$480.99

$

Usually ships in 2-12 days

0

71

Ferris 5400249A

BRACKET, THROTTLE - BLACK

Note: (Not shown. Throttle linkage parts.)(CE Models: S/N: 2012921393 & Below)

$7.99

$

Usually ships in 2-12 days

0

72

Ferris 5022901

CLAMP, CONDUIT
(Superseded to 5022901FS)

Note: (Not shown. Throttle linkage parts.)

$2.49

$

Usually ships in 2-12 days

0

73

Ferris 5047650

CLAMP, BARREL, THROTTLE

Note: (Not shown. Throttle linkage parts.)

$8.99

$

Usually ships in 2-12 days

0

74

Ferris 5023215

CAPSCREW, HEX HEAD M6-1.0 X 14MM
(Superseded to 5023215SM)

Note: (Not shown. Throttle linkage parts.)

$3.99

$

Usually ships in 2-12 days

0

75

Ferris 5025169

WASHER, 1/4 LOCK
(Superseded to 5025169FS)

Note: (Not shown. Throttle linkage parts.)

$3.99

$

Usually ships in 2-12 days

0

76

Ferris 5025179X4

SCREW, #10-24 X 1/2" ROUND PHILLIPS

Note: (Not shown. Throttle linkage parts.)

$

$

Currently unavailable

77

Ferris 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

Note: (Not shown. Throttle linkage parts.)

$3.99

$

Usually ships in 2-12 days

0

78

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

80

Ferris 5023448

CLAMP, HOSE, 2-3/4"
(Superseded to 5023448FS)

Note: (Clamps for Air Filter)

$5.49

$

Usually ships in 2-12 days

0

81

Ferris 5023447

CLAMP, HOSE, 1-3/4"
(Superseded to 5023447FS)

Note: (Clamps for Radiator Hoses)

$4.99

$

Usually ships in 2-12 days

0

82

Ferris 5023449

SENDER, WATER TEMPERATURE

Note: (Not an illustrated part)

$40.99

$

Usually ships in 2-12 days

0

83

Ferris 5404060A

BRACKET, THROTTLE 4500 DIESEL, BLACK
(Superseded to 5404060AFS)

Note: (Not shown. Throttle linkage parts.)(CE Models: S/N: 2012921394 & Above)

$19.99

$

Usually ships in 2-12 days
