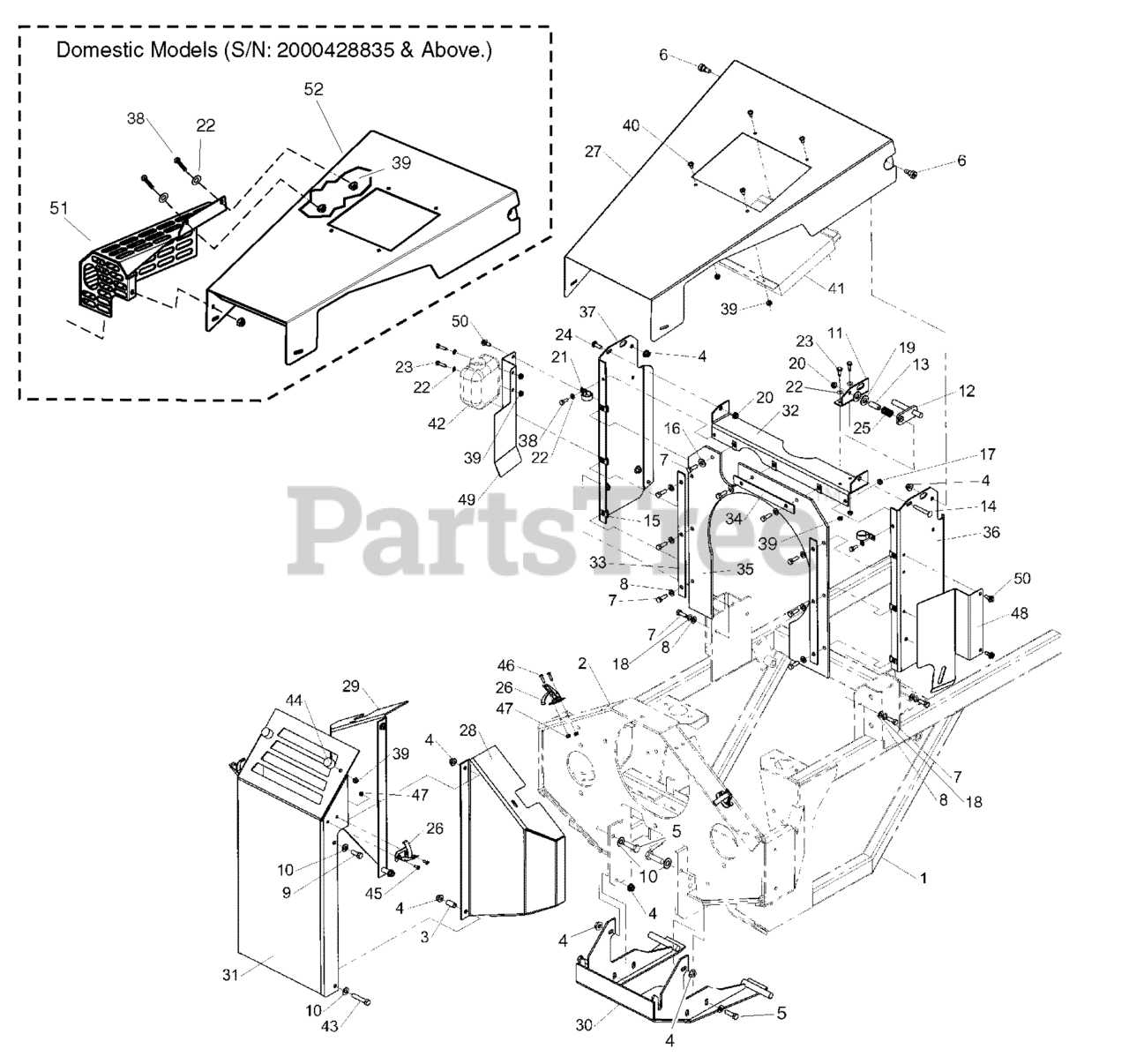

IS 4500Z (5900626) - Ferris IS4500Z Series 61" Zero-Turn Mower, 28hp Caterpillar Diesel, Side-Discharge Hood, Bumper & Radiator Shroud Group - Diesel (S/N: 2000581118 & Below) Parts Diagram

IS4500Z Series 61" Zero-Turn Mower, 28hp Caterpillar Diesel, Side-Discharge

Hood, Bumper & Radiator Shroud Group - Diesel (S/N: 2000581118 & Below) Parts Diagram

  • Title

1

MAIN FRAME

Note: (See Main Frame & Front Suspension Group)

$

$

Not available

2

PUMP PLATE

Note: (See Pump Mount & Drive Group)

$

$

Not available

3

Ferris 5044959

SPACER, .38 X .50 X 1.00
(Superseded to 5044959FS)

$3.49

$

Usually ships in 2-12 days

0

4

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

5

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

6

Ferris 5025356

BOLT, 3/8-16 X 3/8", 1/2" SHOULDER
(Superseded to 5025356SM)

$6.99

$

In Stock, Qty 6

0

7

Ferris 5025011X8

BOLT, 5/16-18 X 1" GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

8

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

9

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

10

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5061799B

PLATE, HOOD SUPPORT, HOLDER

$6.49

$

Usually ships in 2-12 days

0

12

Ferris 5061800B

WELD, HOOD LATCH

$35.99

$

Usually ships in 2-12 days

0

13

Ferris 5041931

SPACER, .38 X .50 X 1.25, CZ
(Superseded to 5041931SM)

$5.99

$

Usually ships in 2-12 days

0

14

Ferris 5025414

BOLT, 5/16-18 X 2-1/4", CARRIAGE

$

$

Currently unavailable

15

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

16

Ferris 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

17

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

18

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

19

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

20

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

21

Ferris 5025430

CLAMP, 5/16 DOUBLE, WIRE & TUBE
(Superseded to 5025430SM)

$2.99

$

Usually ships in 2-12 days

0

22

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

23

Ferris 5025010X6

BOLT, 1/4-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

24

Ferris 5025145X6

BOLT, 5/16-18 X 3/4", CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

25

Ferris 5061833

SPRING, HOOD LATCH

$9.49

$

Usually ships in 2-12 days

0

26

Ferris 5023305

LATCH, HOOD

$

$

Not available

27

Ferris 5061180B

HOOD

Note: (Fits Domestic models S/N: 2000428834 & below, and Export models S/N: 2000375033 & Below)

$

$

Currently unavailable

28

Ferris 5049786B

WELD, BUMPER SIDE RH

$76.99

$

Usually ships in 2-12 days

0

29

Ferris 5049785B

WELD, BUMPER SIDE LH

$76.99

$

Usually ships in 2-12 days

0

30

Ferris 5049620B

WELD, SKID PLATE

$

$

Currently unavailable

31

Ferris 5049787B

WELD, BUMPER CENTER

$136.99

$

Usually ships in 2-12 days

0

32

Ferris 5061184B

BRACE, SHROUD

$

$

Currently unavailable

33

Ferris 5061268B

BAR, RUBBER SUPPORT SIDE

$5.49

$

Usually ships in 2-12 days

0

34

Ferris 5061269B

BAR, RUBBER SUPPORT TOP

$

$

Currently unavailable

35

Ferris 5061267

SHROUD, RUBBER

$

$

Currently unavailable

36

Ferris 5400626B

SHROUD UPRIGHT, RH

$28.99

$

Usually ships in 2-12 days

0

37

Ferris 5400627B

SHROUD UPRIGHT, LH

$27.99

$

Usually ships in 2-12 days

0

38

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

38

Ferris 5050853X7

BLACK BODY MOLDING, 7"
(Superseded to 5050853X7FS)

Note: (not shown)

$4.49

$

Usually ships in 2-12 days

0

39

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

39

Ferris 5050853X11

BLACK BODY MOLDING, 11"

Note: (not shown)

$5.99

$

Usually ships in 2-12 days

0

40

Ferris 5025299X4

SCREW, 1/4-20 X 1/2" ALLEN BH
(Superseded to 5106469)

Note: (Domestic models)

$2.49

$

In Stock, Qty 18

0

40

Ferris 5050853X18P5

BLACK BODY MOLDING, 18.5"

Note: (not shown)

$8.99

$

Usually ships in 2-12 days

0

40

Ferris 5025299X8

SCREW, 1/4-20 X 1" ALLEN BH
(Superseded to 5025299X8YP)

Note: (Export models)

$4.49

$

Usually ships in 2-12 days

0

41

OIL COOLER

Note: (See Hydraulic Group)

$

$

Not available

42

EXPANSION TANK

Note: (See Engine & Radiator Service Parts Group)

$

$

Not available

43

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

44

Ferris 45022673

BUMPER, RUBBER 1/4-20

$

$

Currently unavailable

45

Ferris 5025179X4

SCREW, #10-24 x 1/2"

$

$

Currently unavailable

46

Ferris 5025179X6

SCREW, #10-24 X 3/4"
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0

47

Ferris 5025271

NUT, #10-24 Hex Nylon Lock
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

48

Ferris 5061836B

GUARD, FAN, RH - RED

$

$

Currently unavailable

49

Ferris 5061837B

GUARD, FAN, LH - RED

$18.99

$

Usually ships in 2-12 days

0

50

Ferris 5025059X6

BOLT, 5/16-18 X 3/4", SELF-TAPPING
(Superseded to 5025059X6FS)

$3.49

$

Usually ships in 2-12 days

0

51

Ferris 5401692B

WELD, MUFFLER GUARD, IS4500Z -RED

Note: (Domestic models S/N: 2000428835 & Above.)

$125.99

$

Usually ships in 2-12 days

0

52

Ferris 5401701B

WELD, HOOD, IS4500Z - RED

Note: (Domestic models S/N: 2000428835 & Above.)

$176.99

$

Usually ships in 2-12 days

0
