IS 4500Z (5900160) - Ferris IS4500Z Series 61" Zero-Turn Mower, 28hp Caterpillar Diesel Seat, Mount & Floor Group Parts Diagram

IS4500Z Series 61" Zero-Turn Mower, 28hp Caterpillar Diesel

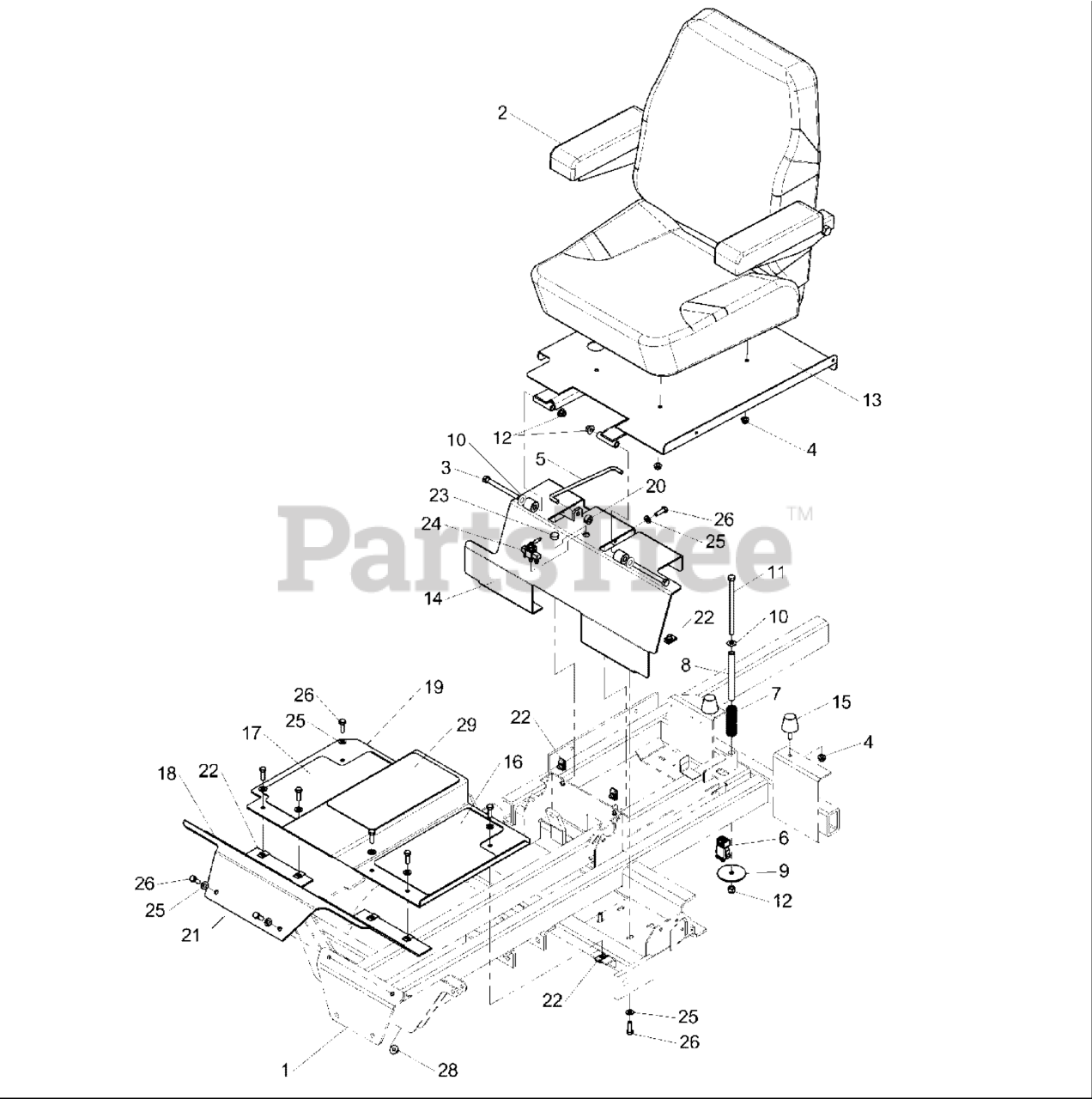

Seat, Mount & Floor Group Parts Diagram

  • Title

1

MAIN FRAME

Note: (See Main Frame & Front Suspension Group)

$

$

Not available

2

Ferris 5022955

SEAT, DELUXE, GRAY (COMPLETE)

$1138.99

$

Usually ships in 2-12 days

0

2

Ferris 5022955X1

SEAT BOTTOM COVER

$240.99

$

Usually ships in 2-12 days

0

2

Ferris 5022955X2

CUSHION, BACK COVER

$227.99

$

Usually ships in 2-12 days

0

2

Ferris 5022955X3

ARM REST SET

Note: (Includes arm rest pads)

$361.99

$

Usually ships in 2-12 days

0

2

Ferris 5022955X4

ARM REST PAD

$163.99

$

In Stock, only 1 left!

0

2

Ferris 5020930X3

SEAT ADJUSTER RAILS

Note: (Set of 2)

$

$

Currently unavailable

2

Ferris 5100636

SPRING, EXTENSION, SEAT ADJUSTMENT (YEL OR BLK)
(Superseded to 5100636SM)

Note: (SV)(Not an illustrated part.) (2" Total unstretched length)

$10.99

$

Usually ships in 2-12 days

0

3

Ferris 5025013X32

BOLT, 3/8-16 X 4" GD5 CZ
(Superseded to 5025013X32SM)

$3.99

$

In Stock, Qty 11

0

4

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

5

Ferris 5061835

ROD, SEAT STOP

$

$

Not available

6

Ferris 5023455

SWITCH, PLUNGER, NC/NC SNAP-IN

$20.99

$

In Stock, only 2 left!

0

7

Ferris 5022798

SPRING, COMP, .835 X.105 X4.26
(Superseded to 5022798SM)

$20.99

$

Usually ships in 2-12 days

0

8

Ferris 5046586

SPACER, .38 X .50 X 5.06
(Superseded to 5046586SM)

$12.99

$

In Stock, Qty 20+

0

9

Ferris 5047381

WASHER, .39 X 2.50 X .125
(Superseded to 5047381FS)

$11.99

$

Usually ships in 2-12 days

0

10

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5025013X48

BOLT, 3/8-16 X 6" GD5 CZ
(Superseded to 5025013X48SM)

$5.99

$

In Stock, Qty 20+

0

12

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

13

Ferris 5049555B

WELD, SEAT MOUNT

$142.99

$

Usually ships in 2-12 days

0

14

Ferris 5061787B

WELD, SEAT MOUNT

$

$

Currently unavailable

15

Ferris 5022612

BUMPER, RUBBER 5/16-18
(Superseded to 5022612SM)

$23.99

$

In Stock, only 2 left!

0

16

Ferris 5101001

SAFETY WALK,FLOOR - LH

$17.99

$

Usually ships in 2-12 days

0

17

Ferris 5101000

SAFETY WALK,FLOOR - RH

$17.99

$

Usually ships in 2-12 days

0

18

Ferris 5101002

SAFETY WALK,ANGLED FLOOR

$9.49

$

Usually ships in 2-12 days

0

19

Ferris 5049554B

PLATE, FLOOR

$93.99

$

Usually ships in 2-12 days

0

20

Ferris 5020047

COLLAR, 5/16" SET
(Superseded to 5020047SM)

$7.49

$

In Stock, only 1 left!

0

21

Ferris 5049596B

ANGLED, FLOOR

$

$

Currently unavailable

22

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

23

Ferris 5021003

HOLE PLUG, 5/8" SNAP-IN
(Superseded to 5021003SM)

Note: (Diesel Models only)

$

$

Not available

24

Ferris 5023358

VALVE, FUEL SHUT OFF
(Superseded to 5023358SM)

Note: (Gas Model only)

$48.99

$

In Stock, Qty 9

0

25

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

26

Ferris 5025011X8

BOLT, 5/16-18 X 1"
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

28

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

29

Ferris 5101010

SAFETY WALK, 11.25 X 6.00
(Superseded to 5101005SM)

$15.99

$

In Stock, only 1 left!

0
