IS 4500Z (5900159) - Ferris IS4500Z Series 61" Zero-Turn Mower, 35hp Briggs & Stratton Electrical Schematic - Ignition / Safety Circuit - Gas (2000237259 & 2000411512) Parts Diagram

IS4500Z Series 61" Zero-Turn Mower, 35hp Briggs & Stratton

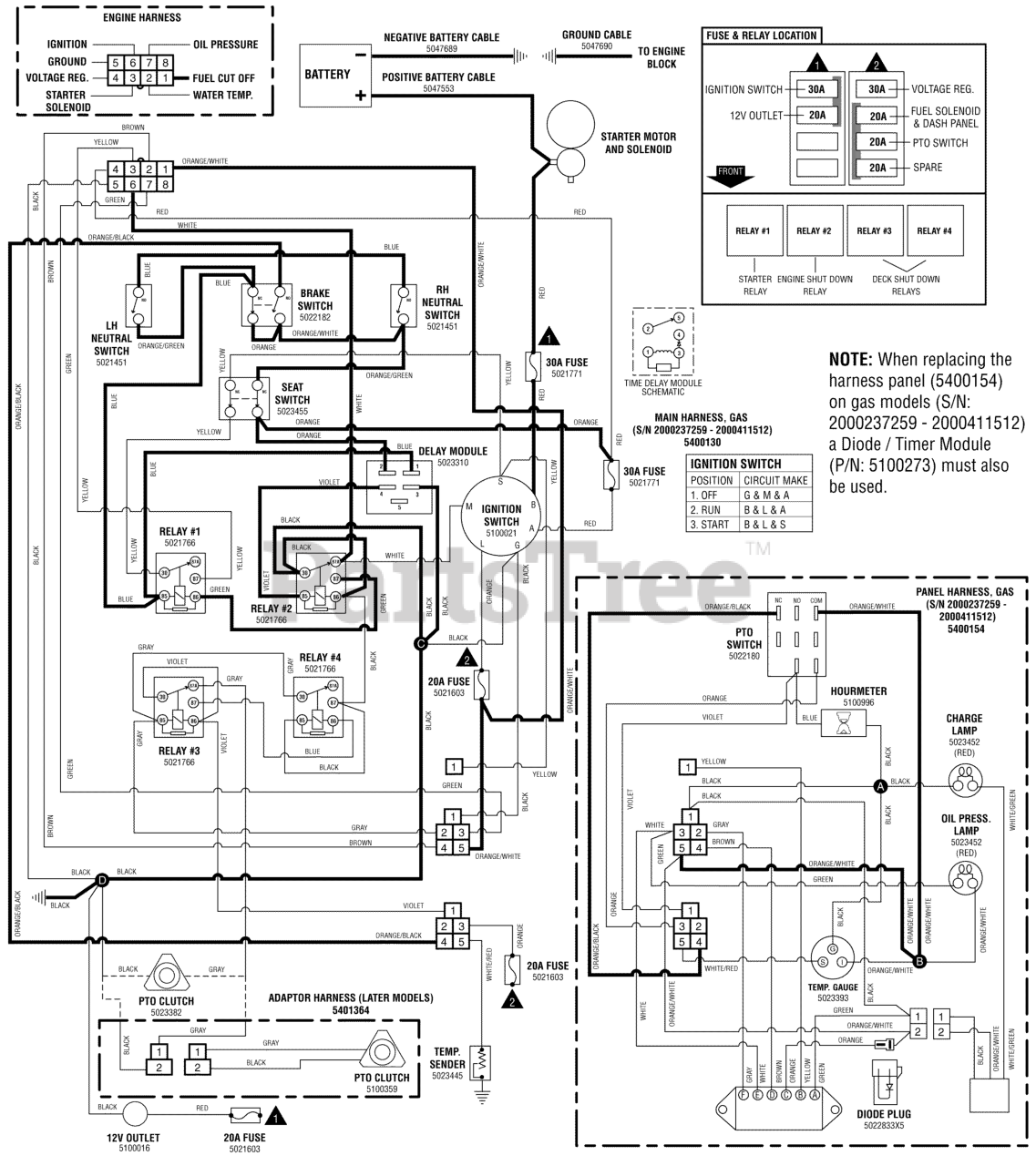

Electrical Schematic - Ignition / Safety Circuit - Gas (2000237259 & 2000411512) Parts Diagram
