IS 4500Z (5900159) - Ferris IS4500Z Series 61" Zero-Turn Mower, 35hp Briggs & Stratton Electrical Schematic - Cranking Circuit - Gas (2000237259 - 2000411512) Parts Diagram

IS4500Z Series 61" Zero-Turn Mower, 35hp Briggs & Stratton

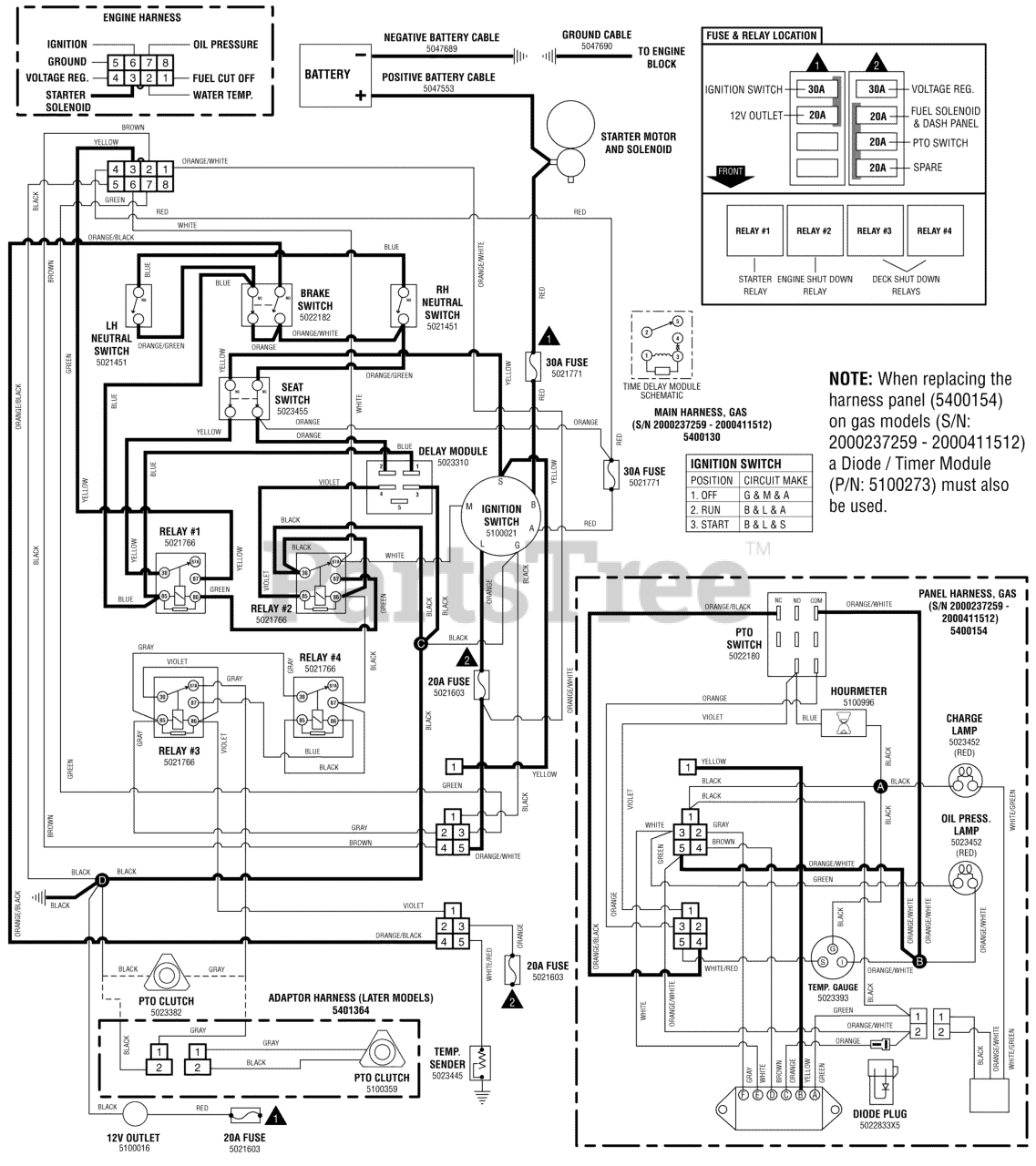

Electrical Schematic - Cranking Circuit - Gas (2000237259 - 2000411512) Parts Diagram
