IS 4000Z - Ferris IS4000Z Series Zero-Turn Mower, 25hp Kohler Wheels & Tires Group Parts Diagram

IS4000Z Series Zero-Turn Mower, 25hp Kohler

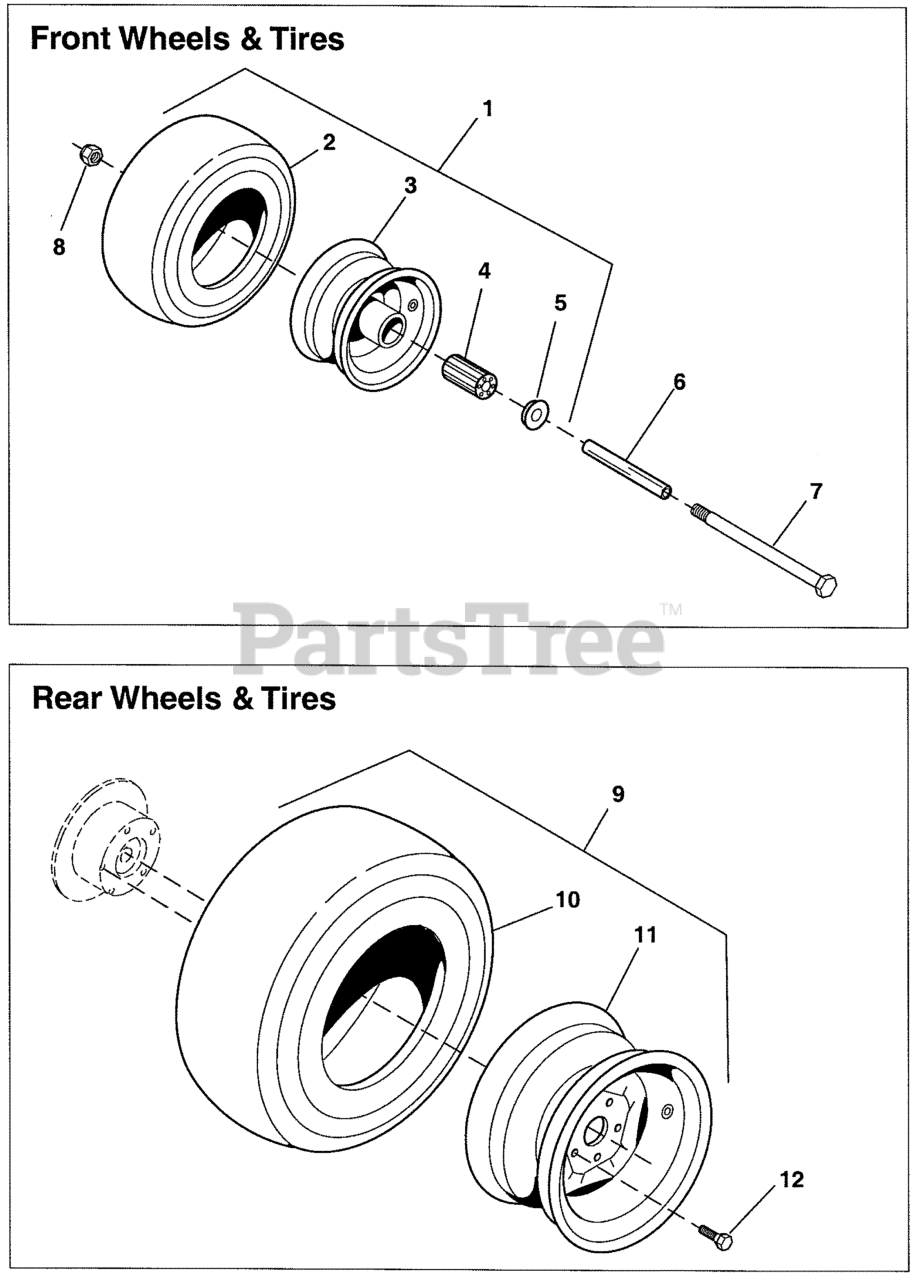

Wheels & Tires Group Parts Diagram

  • Title

1

Ferris 5022371

WHEEL & TIRE ASSEMBLY, Front, 13 x 6.5 x 6, Complete
(Superseded to 5023136)

Note: (Includes Ref 2 thru 5)

$198.99

$

Usually ships in 2-12 days

0

2

Ferris 5022577

TIRE, RUBBER ONLY

$

$

Currently unavailable

3

Ferris 5022578

WHEEL ASSEMBLY, Front, for 13 x 6.5 x 6 Tires, Complete

Note: (Includes Ref 4 & 5)

$

$

Currently unavailable

4

Ferris 5022579

BEARING, Roller

Note: (2 per tire)

$13.99

$

Usually ships in 2-12 days

0

5

Ferris 5021043

RETAINER, Bearing

Note: (2 per tire)

$6.99

$

Usually ships in 2-12 days

0

6

Ferris 5022581

AXLE, Front Caster

$12.99

$

Usually ships in 2-12 days

0

7

Ferris 5025017X68

BOLT, 1-2/13 x 8-1/2

$10.99

$

In Stock, only 2 left!

0

8

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

9

Ferris 5022372

WHEEL & TIRE ASSEMBLY, Rear, 24 x 12 x 12, Complete
(Superseded to 5023365)

Note: (Includes Ref 10 & 11)

$462.99

$

Usually ships in 2-12 days

0

10

Ferris 5021045S

TIRE, Rear, 24 x 12 x 12

$367.99

$

Usually ships in 2-12 days

0

11

Ferris 5022583

WHEEL ASSEMBLY, Rear, for 24 x 12 x 12 Tires
(Superseded to 5023364)

$225.99

$

Usually ships in 2-12 days

0

12

Ferris 5022215

WHEEL LUG, 1/2 x 1-5/8
(Superseded to 5022215SM)

$9.99

$

Usually ships in 2-12 days

0
