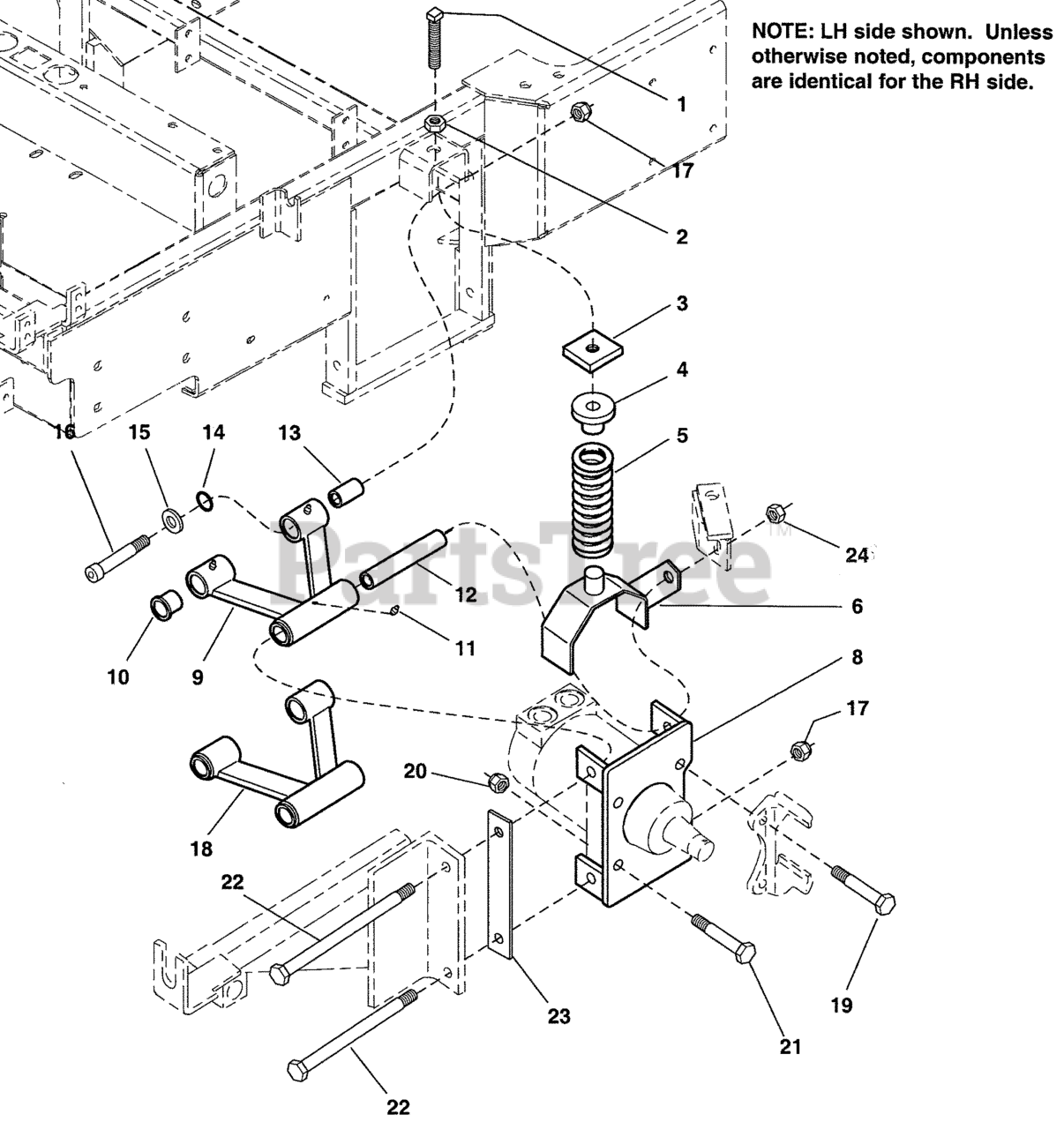

IS 4000Z - Ferris IS4000Z Series Zero-Turn Mower, 25hp Kohler Suspension Group Parts Diagram

IS4000Z Series Zero-Turn Mower, 25hp Kohler

Suspension Group Parts Diagram

  • Title
1

Ferris 5025294

SET SCREW, Square Hd, 1/2-13 x 3

$6.49

$

Usually ships in 2-12 days

0

2

Ferris 5025301

NUT, Hex, Jam, 1/2-13
(Superseded to 5025301SM)

$3.49

$

In Stock, only 1 left!

0

3

Ferris 5045904

SPRING COMPRESSION PLATE

$14.99

$

Usually ships in 2-12 days

0

4

Ferris 5045898

SPRING RETAINER

$

$

Currently unavailable

5

Ferris 5022323

SPRING, SUSPENSION

$71.99

$

Usually ships in 2-12 days

0

6

Ferris 5045601B

SPRING SADDLE-LH

$42.99

$

Usually ships in 2-12 days

0

7

Ferris 5045602B

SPRING SADDLE-RH

Note: (not shown)

$42.99

$

Usually ships in 2-12 days

0

8

Ferris 5045588B

WHEEL MOTOR MOUNT

$

$

Currently unavailable

9

Ferris 5061038B

ASSM, UPPER A-ARM - RED

$148.99

$

Usually ships in 2-12 days

0

10

Ferris 5022250

BUSHING, Flange
(Superseded to 5022250SM)

$9.49

$

Usually ships in 2-12 days

0

11

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

12

Ferris 5045305

PIVOT SLEEVE, Long
(Superseded to 5045305SM)

$64.99

$

Usually ships in 2-12 days

0

13

Ferris 5045306

PIVOT SLEEVE, Short
(Superseded to 5045306SM)

$32.99

$

Usually ships in 2-12 days

0

14

Ferris 5022269

O-RING
(Superseded to 5022269SM)

$3.49

$

Usually ships in 2-12 days

0

15

Ferris 5045307

WASHER, A-Arm
(Superseded to 5045307SM)

$5.49

$

Usually ships in 2-12 days

0

16

Ferris 5025294

CAPSCREW, Allen Head, 1/2-13 x 3

$6.49

$

Usually ships in 2-12 days

0

17

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

18

Ferris 5046857

LOWER A-ARM ASSEMBLY
(Superseded to 84008468)

$159.99

$

Usually ships in 2-12 days

0

19

Ferris 5025018X24

BOLT, 1/2-20 x 3
(Superseded to 5025018X24SM)

$4.99

$

Usually ships in 2-12 days

0

20

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

In Stock, only 2 left!

0

21

Ferris 5025018X20

BOLT, 1/2-20 X 2-1/2" GD5 CZ
(Superseded to 5025018X20SM)

$6.99

$

In Stock, only 1 left!

0

22

Ferris 5025017X52

BOLT, 1/2-13 x 6-1/2
(Superseded to 5025017X52SM)

$10.99

$

In Stock, only 2 left!

0

23

Ferris 5046059B

SPACER PLATE

$15.99

$

Usually ships in 2-12 days

0

24

Ferris 5025314

NUT, Hex, Side Locking, 1/2-13

$

$

Currently unavailable
