IS 4000Z - Ferris IS4000Z Series Zero-Turn Mower, 25hp Kohler Rear Covers & Bumper Group Parts Diagram

IS4000Z Series Zero-Turn Mower, 25hp Kohler

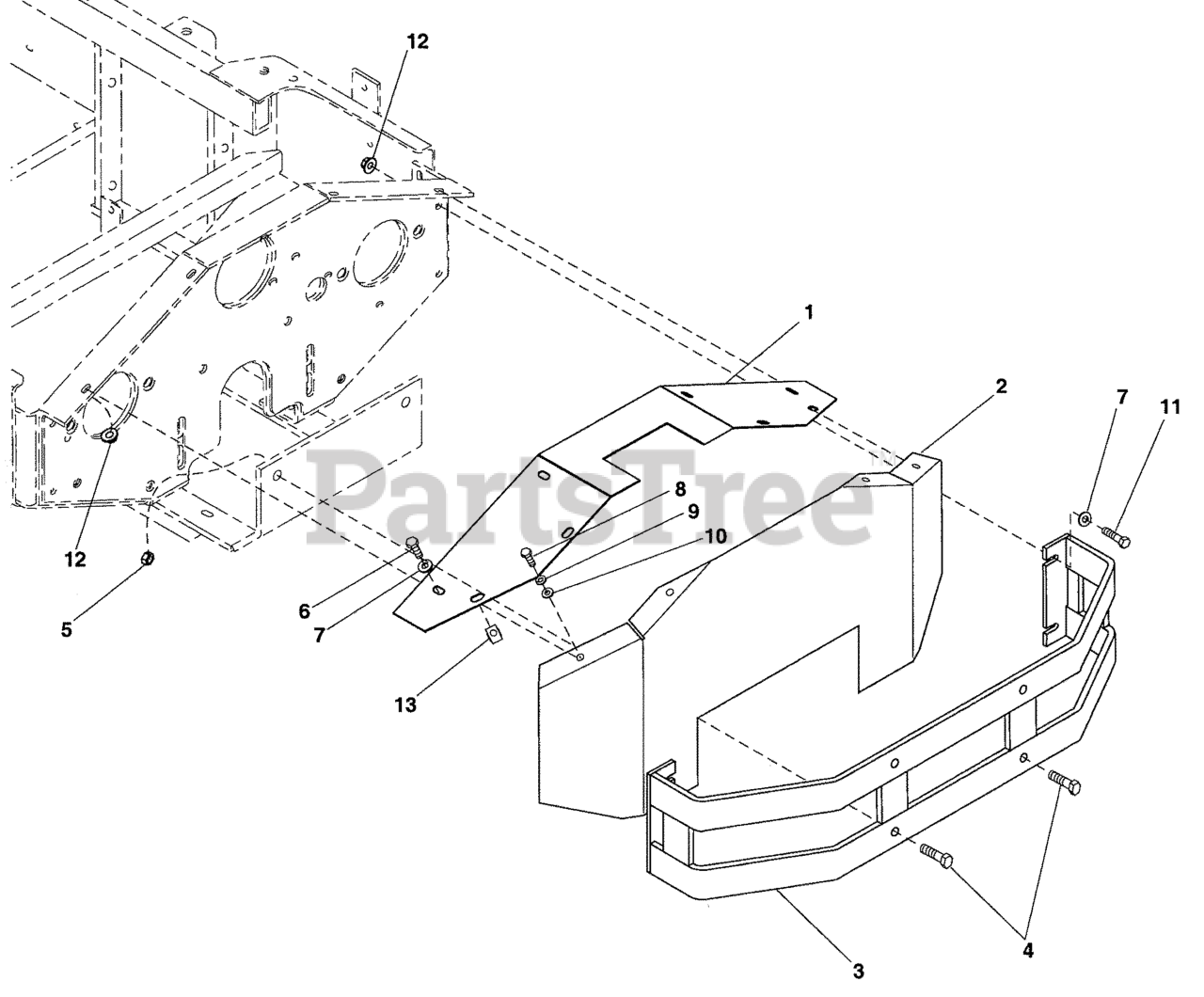

Rear Covers & Bumper Group Parts Diagram

  • Title

1

Ferris 5045793B

SUPPORT COVER, REAR

$

$

Currently unavailable

2

Ferris 5045784B

SHIELD, REAR

$

$

Not available

3

Ferris 5045778B

BUMPER

$398.99

$

Usually ships in 2-12 days

0

4

Ferris 5025018X12

BOLT, 1/2-20 X 1-1/2, GD5 CZ
(Superseded to 5025018X12FS)

$4.99

$

Usually ships in 2-12 days

0

5

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

In Stock, only 2 left!

0

6

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

7

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

9

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

In Stock, only 2 left!

0

10

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

11

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

12

Ferris 5025128

NUT, Serrated Flange, 3/8-16
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

13

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0
