IS 4000Z - Ferris IS4000Z Series Zero-Turn Mower, 25hp Kohler Kohler Engine Group Parts Diagram

IS4000Z Series Zero-Turn Mower, 25hp Kohler

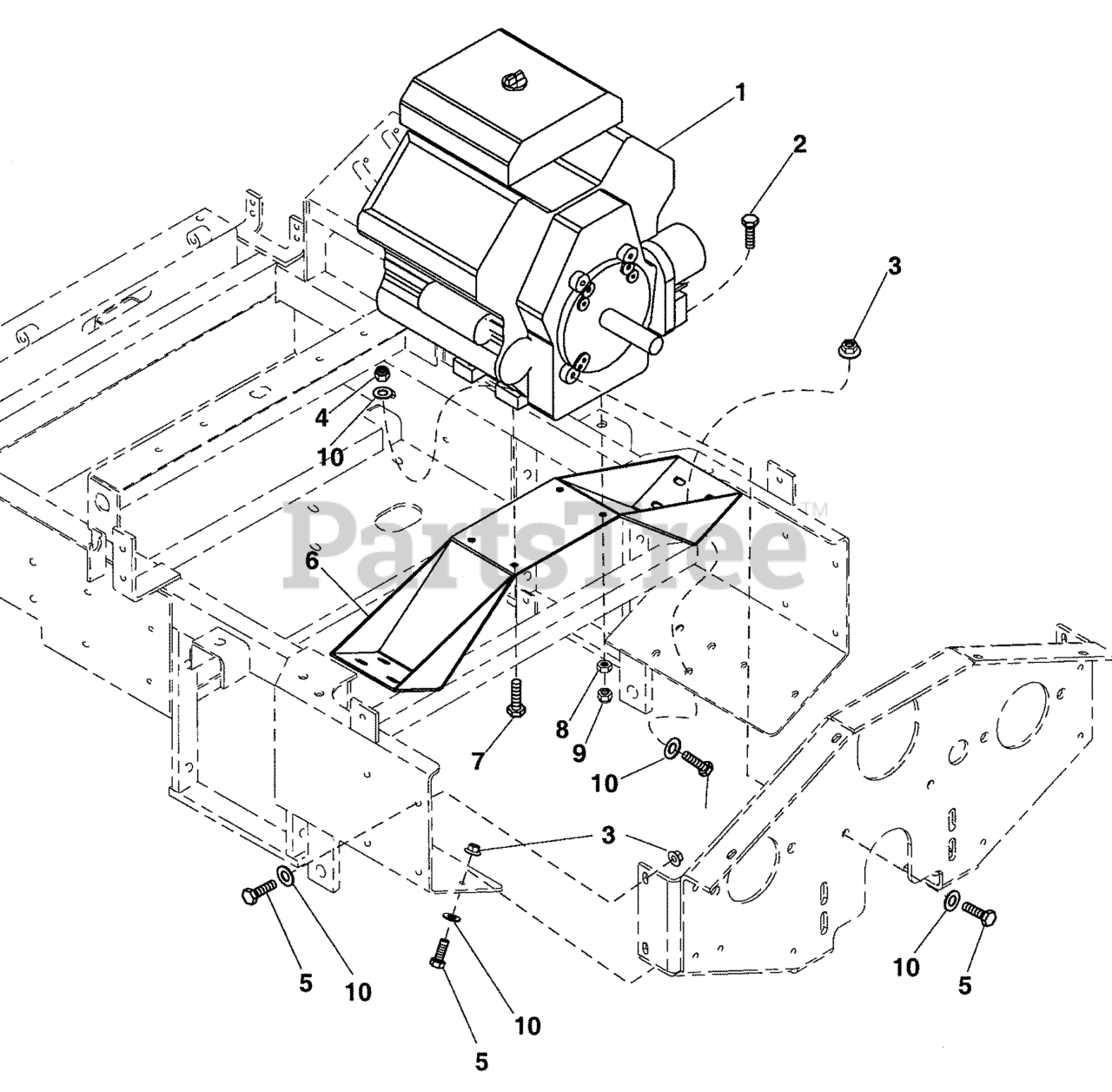

Kohler Engine Group Parts Diagram

  • Title
1

ENGINE, Kohler

$

$

Not available

2

Ferris 5025011X16

BOLT, 5/16-18 x 2
(Superseded to 5025011X16YP)

$3.99

$

Usually ships in 2-12 days

0

3

Ferris 5025128

NUT, Hex, Serrated Flange, 3/8-16
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

4

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

5

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

6

Ferris 5045748B

ENGINE MOUNT

$

$

Currently unavailable

7

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

8

Ferris 5025032

NUT, 5/16-18 HEX
(Superseded to 5025032SM)

$3.49

$

Usually ships in 2-12 days

0

9

Ferris 5025057

NUT, Hex, Nylon Locking, 5/16-18
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

10

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0
