IS 4000Z - Ferris IS4000Z Series Zero-Turn Mower, 25hp Kohler Instrument Panel Group Parts Diagram

IS4000Z Series Zero-Turn Mower, 25hp Kohler

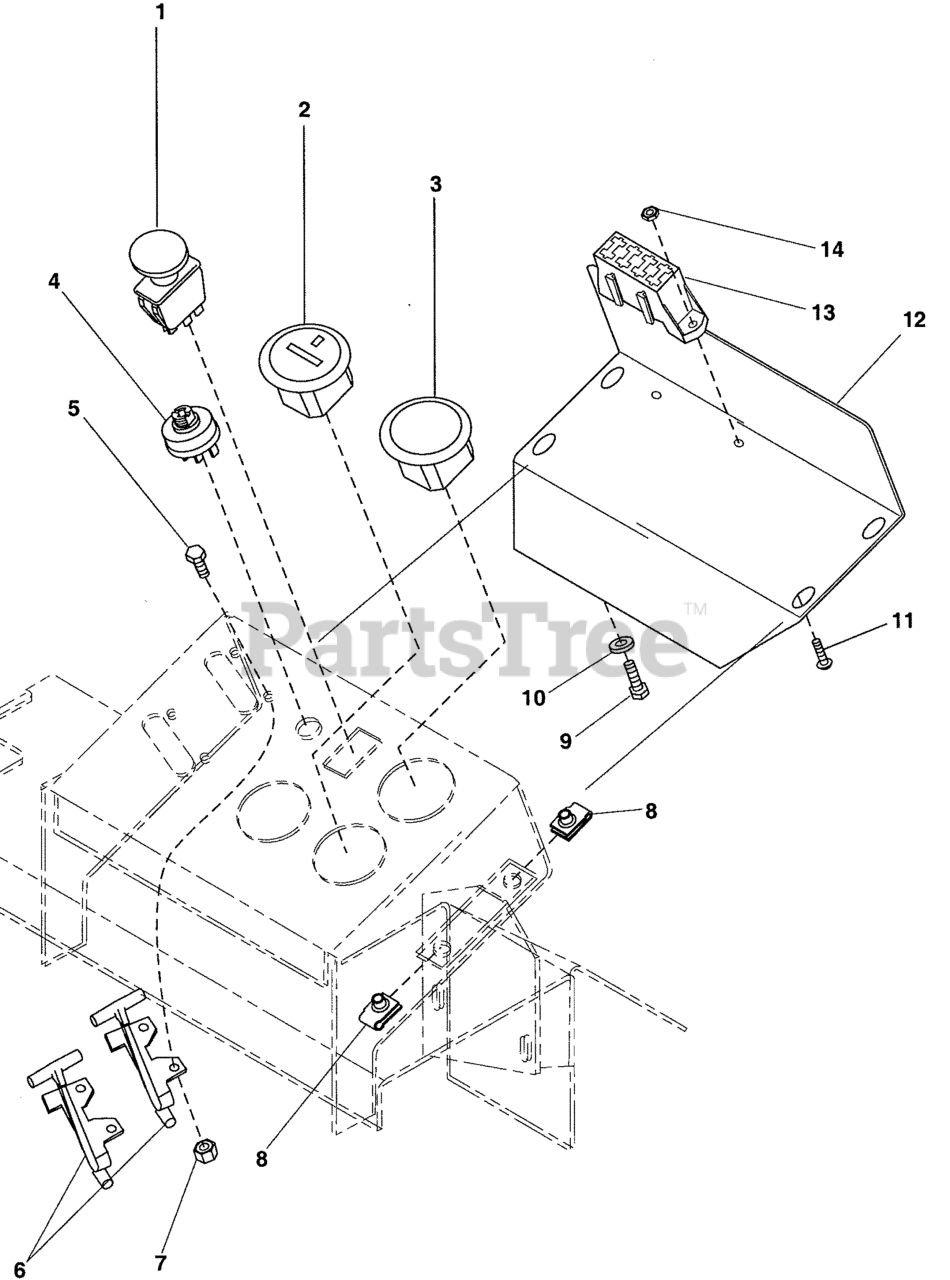

Instrument Panel Group Parts Diagram

  • Title

1

Ferris 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

2

Ferris 5020060

HOUR METER

$250.99

$

Usually ships in 2-12 days

0

3

Ferris 5022387

VOLTMETER

$53.99

$

Usually ships in 2-12 days

0

4

Ferris 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

$33.99

$

In Stock, Qty 7

0

5

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

6

Ferris 5021662

CABLE, Throttle & Choke

$80.99

$

Usually ships in 2-12 days

0

7

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, only 4 left!

0

8

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

9

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

10

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

11

Ferris 5025270

SCREW, #10-24 X 1 RS, CZ
(Superseded to 5025270SM)

$3.49

$

Usually ships in 2-12 days

0

12

Ferris 5045696B

COVER, CONTROL PANEL

$

$

Currently unavailable

13

FUSE BLOCK

$

$

Not available

14

Ferris 5025271

NUT, Hex, Nylon Lock, #10-24
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0
