IS 4000Z - Ferris IS4000Z Series Zero-Turn Mower, 25hp Kohler Gear Box Group Parts Diagram

IS4000Z Series Zero-Turn Mower, 25hp Kohler

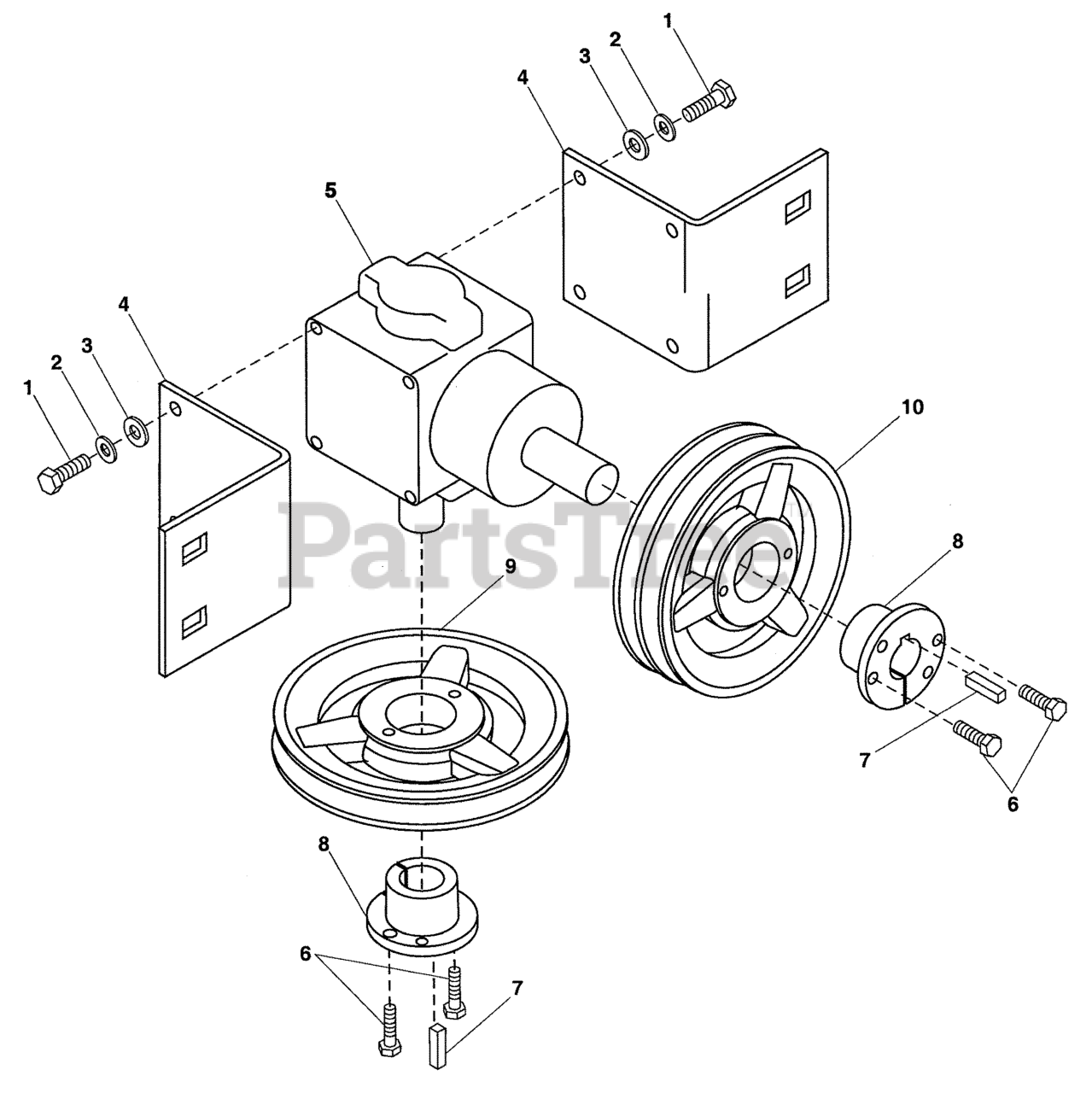

Gear Box Group Parts Diagram

  • Title

1

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

2

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

3

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

4

Ferris 5045775B

GEAR BOX BRACKET

$

$

Currently unavailable

5

Ferris 5022378

GEAR BOX
(Superseded to 5022378FS)

$984.99

$

Usually ships in 2-12 days

0

6

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

7

Ferris 5050407X1

KEY, 1/4 x 2
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 1 left!

0

8

Ferris 5020819

TAPERED LOCK HUB
(Superseded to 5020819SM)

$26.99

$

In Stock, only 4 left!

0

9

Ferris 5020815

PULLEY, Spindle
(Superseded to 5020815SM)

$111.99

$

Usually ships in 2-12 days

0

10

Ferris 5022384

PULLEY, Gear Box

$180.99

$

Usually ships in 2-12 days

0
