IS4000Z Series Zero-Turn Mower, 25hp Kohler

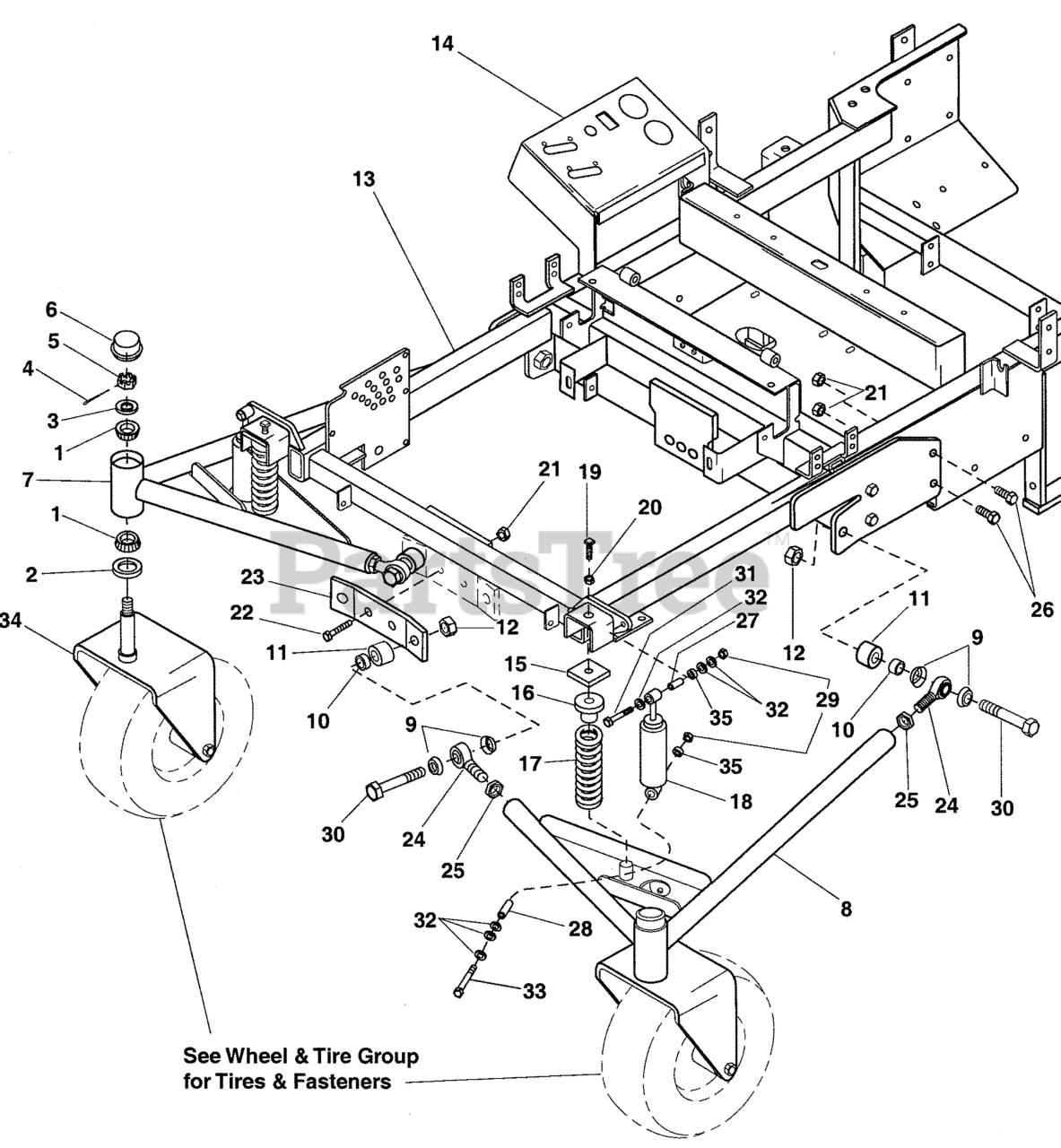

Front Suspension & Main Frame Group Parts Diagram

  • Title
1

Ferris 5020884

BEARING, Tapered Roller
(Superseded to 5020884SM)

$25.99

$

In Stock, Qty 20+

0

2

Ferris 5021072

SEAL, GREASE
(Superseded to 5021072SM)

$7.49

$

In Stock, only 3 left!

0

3

Ferris 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$3.99

$

In Stock, Qty 5

0

4

Ferris 5025203X10

PIN, COTTER, 1/8 X 1-1/4
(Superseded to 5025203X10SM)

$3.99

$

In Stock, only 2 left!

0

5

Ferris 5025104

NUT, Hex, Slotted, 3/4-16
(Superseded to 5025104FS)

$5.49

$

Usually ships in 2-12 days

0

6

Ferris 5021073

CAP
(Superseded to 5021073SM)

$7.49

$

In Stock, only 4 left!

0

7

Ferris 5046266B

SUSPENSION ARM, Right

$

$

Currently unavailable

8

Ferris 5046267B

SUSPENSION ARM, Left

$

$

Currently unavailable

9

Ferris 5022111

ROD END SEAL
(Superseded to 5022111SM)

$15.99

$

In Stock, Qty 8

0

10

Ferris 5046187

SPACER, SMALL

$

$

Currently unavailable

11

Ferris 5046186

SPACER, LARGE

$

$

Currently unavailable

12

Ferris 5025284

NUT, Hex, Nylon Lock, 3/4-16
(Superseded to 5025284SM)

$3.49

$

In Stock, only 3 left!

0

13

Ferris 5045733B

FRONT FRAME

$

$

Currently unavailable

14

Ferris 5045709B

MAIN FRAME

$

$

Currently unavailable

15

Ferris 5045904

SPRING COMPRESSION PLATE

$14.99

$

Usually ships in 2-12 days

0

16

Ferris 5045898

SPRING RETAINER

$

$

Currently unavailable

17

Ferris 5022323

SPRING, SUSPENSION

$71.99

$

Usually ships in 2-12 days

0

18

Ferris 5021687

SHOCK ABSORBER

$170.99

$

Usually ships in 2-12 days

0

19

Ferris 5025298

SET SCREW, Square Hd, 1/2-13 x 3

$

$

Currently unavailable

20

Ferris 5025301

NUT, Hex, Jam, 1/2-13
(Superseded to 5025301SM)

$3.49

$

In Stock, only 1 left!

0

21

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

In Stock, only 2 left!

0

22

Ferris 5025018X14

BOLT, 1/2-20 X 1-3/4" GD8 CZ
(Superseded to 5025018X14FS)

$2.99

$

In Stock, only 2 left!

0

23

Ferris 5046060B

SUSPENSION SUPPORT PLATE

$23.99

$

Usually ships in 2-12 days

0

24

Ferris 5022039

BALL JOINT, 3/4-16
(Superseded to 5022039SM)

$37.99

$

In Stock, Qty 13

0

25

Ferris 5025093

NUT, Hex, Jam, 3/4-16
(Superseded to 5025093SM)

$4.49

$

In Stock, only 1 left!

0

26

Ferris 5025018X10

BOLT, 1/2-20 X 1-1/4" GD5 CZ
(Superseded to 5025018X10SM)

$2.99

$

In Stock, Qty 20+

0

27

Ferris 5044959

MOUNT, SHOCK
(Superseded to 5044959FS)

$3.49

$

Usually ships in 2-12 days

0

28

Ferris 5044992

SPACER, Lift Plate
(Superseded to 5044992SM)

$5.99

$

In Stock, only 2 left!

0

29

Ferris 5025100

NUT, Hex, Side Lock, 3/8-16
(Superseded to 5025100SM)

$3.49

$

In Stock, Qty 20+

0

30

Ferris 5025265X32

BOLT, 3/4-16 x 4
(Superseded to 5025265X32SM)

$4.99

$

Usually ships in 2-12 days

0

31

Ferris 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

In Stock, only 3 left!

0

32

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

33

Ferris 5025013X28

BOLT, 3/8-16 X 3-1/2" GD5 CZ
(Superseded to 5025013X28SM)

$4.99

$

In Stock, Qty 20+

0

34

Ferris 5045769B

YOKE, Caster
(Superseded to 5600096)

$127.99

$

In Stock, only 1 left!

0

35

Ferris 5044933

SPACER, Lift Ball Joint
(Superseded to 5044933SM)

$4.99

$

In Stock, only 3 left!

0
