IS 4000Z - Ferris IS4000Z Series Zero-Turn Mower, 25hp Kohler Deck Lift Group Parts Diagram

IS4000Z Series Zero-Turn Mower, 25hp Kohler

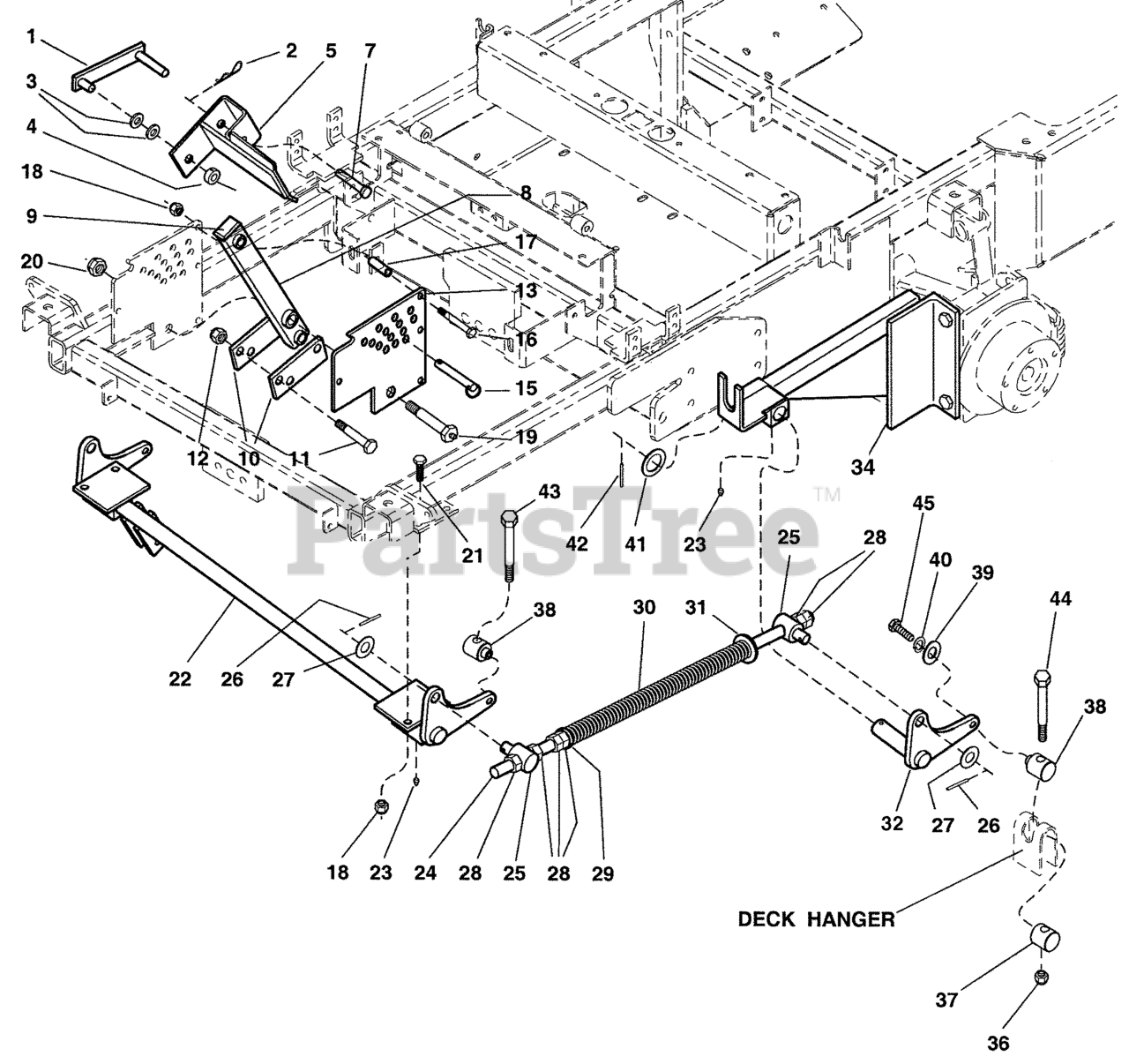

Deck Lift Group Parts Diagram

  • Title

1

Ferris 5044999B

DECK LIFT LOCK

$

$

Not available

2

Ferris 5025210

HAIRPIN CLIP
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

3

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 8

0

4

Ferris 5010580

COLLAR, 1/2 Set
(Superseded to 5010580FS)

$15.99

$

Usually ships in 2-12 days

0

5

Ferris 5045058B

WELD, DECK LIFT PEDAL

$98.99

$

Usually ships in 2-12 days

0

6

Ferris 5044875B

SAFETY WALK, Deck Lift Pedal

Note: (not shown)

$

$

Currently unavailable

7

Ferris 5022044

PIN, Clevis, 1/2 x 2-1/2
(Superseded to 5022044SM)

$4.49

$

In Stock, only 1 left!

0

8

Ferris 5044987B

ARM, Deck Lift Pivot

$46.99

$

Usually ships in 2-12 days

0

9

Ferris 5022097

CAP

$2.99

$

Usually ships in 2-12 days

0

10

Ferris 5044994B

LINK, Deck Lift

$6.49

$

Usually ships in 2-12 days

0

11

Ferris 5025018X24

BOLT, 1/2-20 x 3
(Superseded to 5025018X24SM)

$4.99

$

Usually ships in 2-12 days

0

12

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

In Stock, only 2 left!

0

13

Ferris 5045379B

DECK HEIGHT PLATE

$

$

Currently unavailable

14

Ferris 5022063

DECAL, Deck Height
(Superseded to 5022063SM)

Note: (not shown)

$49.99

$

Usually ships in 2-12 days

0

15

Ferris 5022045

PIN, 1/2 x 3
(Superseded to 5022045SM)

$14.99

$

Usually ships in 2-12 days

0

16

Ferris 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

$4.49

$

In Stock, Qty 5

0

17

Ferris 5044992

SPACER, Lift Plate
(Superseded to 5044992SM)

$5.99

$

In Stock, only 2 left!

0

18

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

19

Ferris 5044993

LIFT PIVOT BOLT

$32.99

$

Usually ships in 2-12 days

0

20

Ferris 5025282

NUT, Hex Jam, Nylon Lock, 5/8-11
(Superseded to 5025282FS)

$5.99

$

Usually ships in 2-12 days

0

21

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

22

Ferris 5045743B

DECK LIFT SHAFT & MOUNT ASSEMBLY

$410.99

$

Usually ships in 2-12 days

0

23

Ferris 5020095

CREASE FITTING
(Superseded to 5020095SM)

$3.99

$

In Stock, only 3 left!

0

24

Ferris 5022393

SPRING ROD

$18.99

$

Usually ships in 2-12 days

0

25

Ferris 5045856

SPRING ROD PIVOT

$

$

Currently unavailable

26

Ferris 5022366

PIN, Spring, 3/16 x 1-1/4
(Superseded to 5022366SM)

$3.49

$

Usually ships in 2-12 days

0

27

Ferris 5025281

WASHER, 5/8
(Superseded to 5025281SM)

$3.99

$

In Stock, Qty 6

0

28

Ferris 5025040

NUT, Hex, 5/8-11
(Superseded to 5025040SM)

$3.49

$

In Stock, Qty 6

0

29

Ferris 5041477

SPACER
(Superseded to 5041477SM)

$5.99

$

Usually ships in 2-12 days

0

30

Ferris 5022333

SPRING, Deck Lift
(Superseded to 5022333SM)

$52.99

$

Usually ships in 2-12 days

0

31

Ferris 5025159

WASHER, USS, 5/8

$

$

Currently unavailable

32

Ferris 5045767B

DECK LIFT PIVOT-LH

$92.99

$

Usually ships in 2-12 days

0

33

Ferris 5045766B

DECK LIFT PIVOT-RH

Note: (not shown)

$92.99

$

Usually ships in 2-12 days

0

34

Ferris 5045684B

REAR DECK LIFT FRAME-LH

$

$

Currently unavailable

35

Ferris 5045685B

REAR DECK LIFT FRAME-RH

Note: (not shown)

$

$

Currently unavailable

36

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

37

Ferris 5045857

BUSHING, DECK PIVOT

$13.99

$

Usually ships in 2-12 days

0

38

Ferris 5045855

LIFT, BOLT PIVOT

$36.99

$

Usually ships in 2-12 days

0

39

Ferris 5025164

WASHER, Fender, 5/16
(Superseded to 5025164SM)

$3.99

$

In Stock, only 1 left!

0

40

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

In Stock, only 2 left!

0

41

Ferris 5021253

SHIM

$10.99

$

Usually ships in 2-12 days

0

42

Ferris 5025516

PIN, Roll, 3/16 x 1-1/2

$

$

Not available

43

Ferris 5025017X68

BOLT, 1/2-20 x 8-1/2

$10.99

$

In Stock, only 2 left!

0

44

Ferris 5025017X52

BOLT, 1/2-20 x 6-1/2
(Superseded to 5025017X52SM)

$10.99

$

In Stock, only 2 left!

0

45

Ferris 5025012X6

BOLT, 5/16-24 x 3/4
(Superseded to 5025012X6SM)

$3.49

$

Usually ships in 2-12 days

0
