IS 4000Z - Ferris IS4000Z Series Zero-Turn Mower, 25hp Kohler Battery Tray & Oil Cooler Group Parts Diagram

IS4000Z Series Zero-Turn Mower, 25hp Kohler

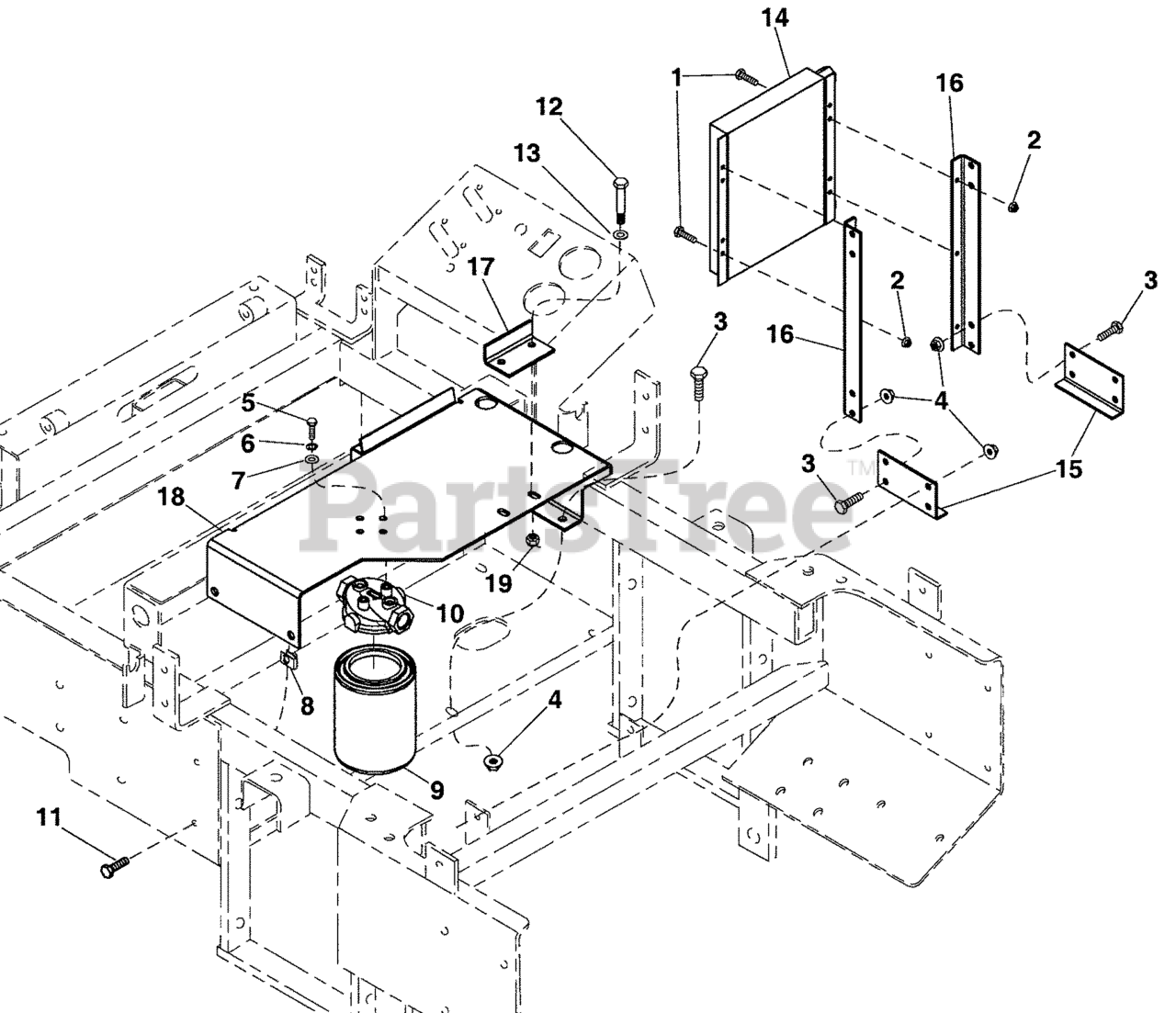

Battery Tray & Oil Cooler Group Parts Diagram

  • Title

1

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

2

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

3

Ferris 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

4

Ferris 5025128

NUT, Hex, Serrated Flange, 3/8-16
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

5

Ferris 5025010X6

BOLT, 1/4-20 x 3/4
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

6

Ferris 5025169

WASHER, 1/4 LOCK
(Superseded to 5025169FS)

$3.99

$

In Stock, only 2 left!

0

7

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

8

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

9

FILTER

$

$

Not available

10

FILTER HEAD

$

$

Not available

11

Ferris 5025011X8

BOLT, 5/16-18 x 1
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

12

Ferris 5025011X12

BOLT, 5/16-18 x 1-1/2
(Superseded to 5025011X12SM)

$3.99

$

In Stock, only 2 left!

0

13

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

14

Ferris 5022377

HYDRAULIC OIL COOLER

$165.99

$

Usually ships in 2-12 days

0

15

Ferris 5045794B

COOLER BRACKET, Short

$

$

Currently unavailable

16

Ferris 5045795B

COOLER BRACKET, Long

$

$

Currently unavailable

17

Ferris 5046275B

HOLD DOWN BRACKET

$

$

Currently unavailable

18

Ferris 5046276B

BATTERY TRAY

$

$

Currently unavailable

19

Ferris 5025057

NUT, Hex, Nylon Locking, 5/16-18
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0
