IS 4000Z - Ferris IS4000Z Series Zero-Turn Mower, 25hp Kohler 61" Mower Rear Mount Group Parts Diagram

IS4000Z Series Zero-Turn Mower, 25hp Kohler

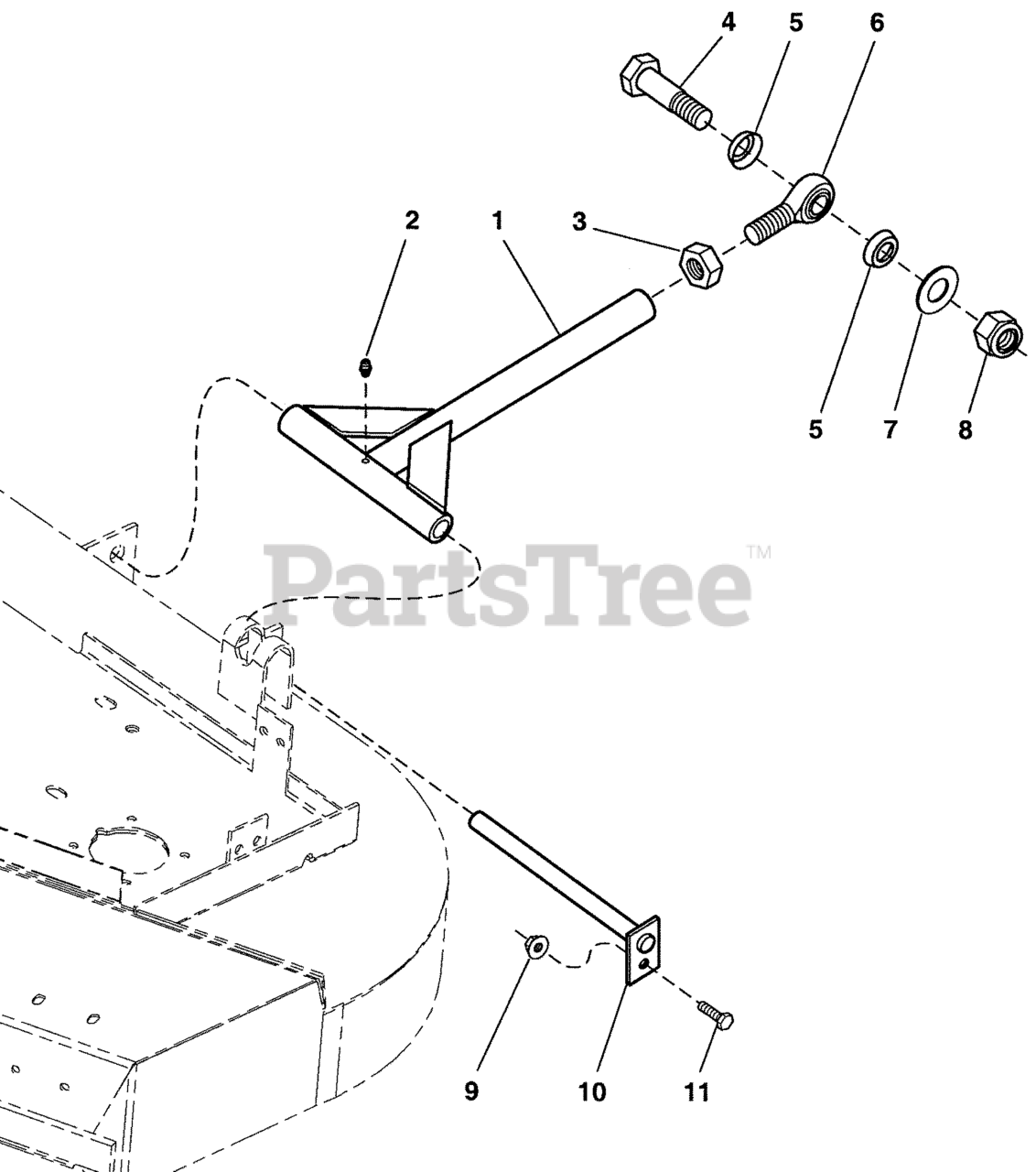

61" Mower Rear Mount Group Parts Diagram

  • Title
1

Ferris 5045103B

DECK PUSHER BAR

$104.99

$

Usually ships in 2-12 days

0

2

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

3

Ferris 5025093

NUT, Hex, Jam, 3/4-16
(Superseded to 5025093SM)

$4.49

$

In Stock, only 1 left!

0

4

Ferris 5025265X24

BOLT, 3/4-16 x 3
(Superseded to 5025265X24SM)

$13.99

$

In Stock, only 2 left!

0

5

Ferris 5022111

ROD END SEAL
(Superseded to 5022111SM)

$15.99

$

In Stock, Qty 8

0

6

Ferris 5022039

BALL JOINT, 3/4-16
(Superseded to 5022039SM)

$37.99

$

In Stock, Qty 13

0

7

Ferris 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$3.99

$

In Stock, Qty 7

0

8

Ferris 5025284

NUT, Hex, Nylon Lock, 3/4-16
(Superseded to 5025284SM)

$3.49

$

In Stock, only 3 left!

0

9

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

10

Ferris 5045037A

NLA - WELD, DECK MOUNT SHAFT - BLK
(Superseded to 5045037AA)

Note: SECURED W/ 5025013X8 & 5101414

$39.99

$

Usually ships in 2-12 days

0

11

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0
