IS 4000Z (5901066) - Ferris IS4000Z Series 61" Zero-Turn Mower, 27hp Kawasaki Hydraulic Group Parts Diagram

IS4000Z Series 61" Zero-Turn Mower, 27hp Kawasaki

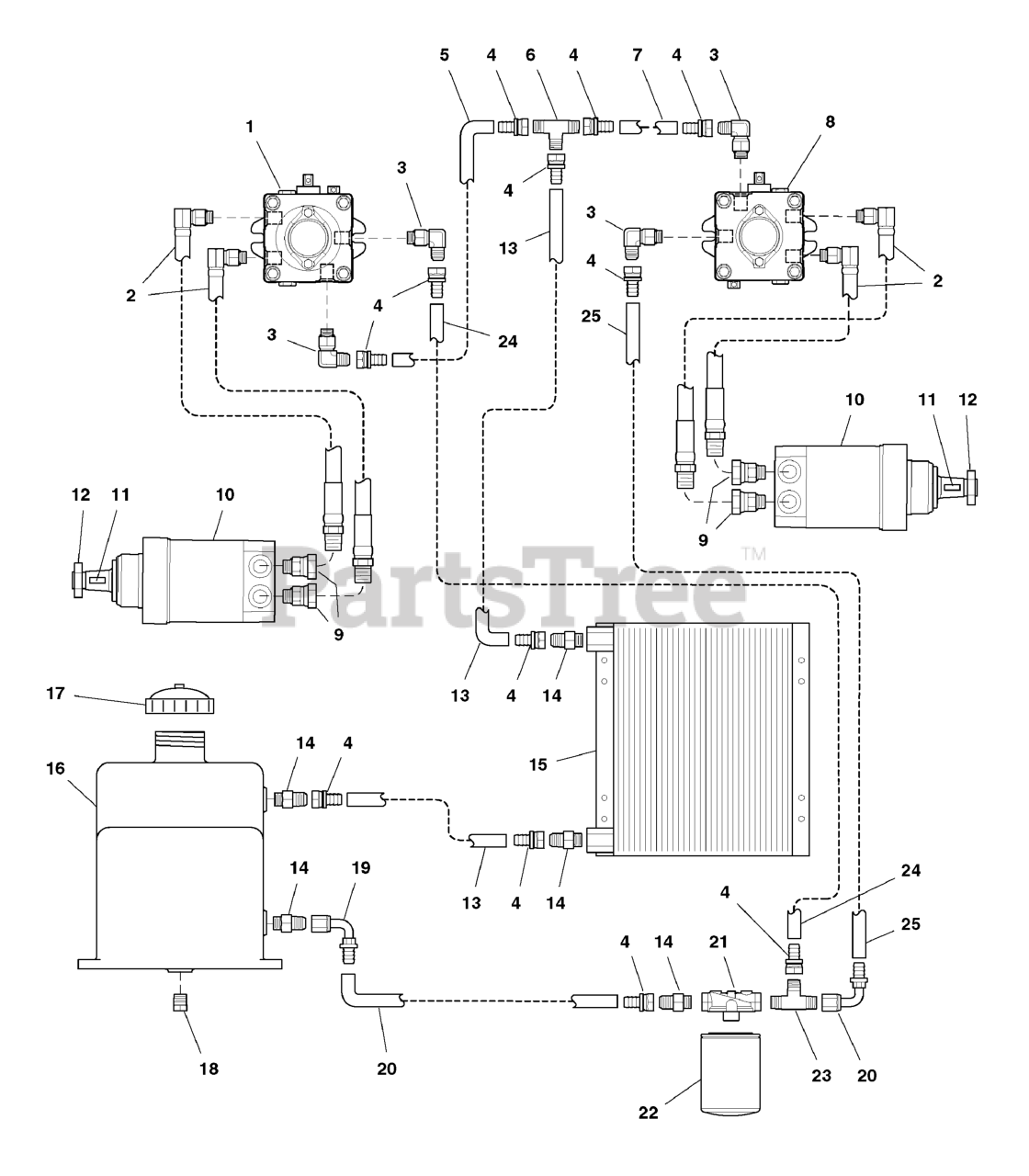

Hydraulic Group Parts Diagram

  • Title

1

Ferris 5022376

HYDRAULIC PUMP - RH

$1244.99

$

Usually ships in 2-12 days

0

2

Ferris 5022046

REPLACE WITH 5413138 + 5022599, HYDRAULIC HOSE ASSEMBLY + FITTING
(Superseded to 5022046SM)

$164.99

$

Usually ships in 2-12 days

0

3

Ferris 5022599

FITTING, O-Ring, 90 Deg.
(Superseded to 5022599SM)

$32.99

$

In Stock, only 1 left!

0

4

Ferris 5022598

FITTING, JIC #8, Straight
(Superseded to 5022598FS)

$14.99

$

Usually ships in 2-12 days

0

5

Ferris 5050857X40

HOSE, Hydraulic, 40"
(Superseded to 5050857X40FS)

$21.99

$

Usually ships in 2-12 days

0

6

Ferris 5022604

FITTING, TEE, JIC #8
(Superseded to 5022604FS)

$29.99

$

Usually ships in 2-12 days

0

7

Ferris 5050857X15

HOSE, 15" Long

$

$

Currently unavailable

8

Ferris 5022375

HYDRAULIC PUMP - LH

$1244.99

$

Usually ships in 2-12 days

0

9

Ferris 5021166

FITTING, 7/8" O-Ring Straight Swivel
(Superseded to 5021166SM)

$13.99

$

Usually ships in 2-12 days

0

10

Ferris 5022368

HYDRAULIC WHEEL MOTOR, Complete

Note: (Includes Ref No. 11 & 12)

$1481.99

$

Usually ships in 2-12 days

0

11

Ferris 5022042X2

KEY
(Superseded to 5022042X2SM)

$10.99

$

In Stock, only 1 left!

0

12

Ferris 5022042X3

NUT & COTTER PIN
(Superseded to 5022042X3SM)

$34.99

$

In Stock, only 1 left!

0

13

Ferris 5050857X34

HOSE, Hydraulic, 34"
(Superseded to 5050857X34FS)

$18.99

$

Usually ships in 2-12 days

0

14

Ferris 5022601

FITTING, NPT - JIC #8
(Superseded to 5022601FS)

$8.99

$

Usually ships in 2-12 days

0

15

Ferris 5022377

OIL COOLER

$165.99

$

Usually ships in 2-12 days

0

16

Ferris 5045872

HYDRAULIC OIL RESERVOIR
(Superseded to 5045872FS)

$228.99

$

Usually ships in 2-12 days

0

17

Ferris 5022437

CAP, Reservoir
(Superseded to 5022437FS)

$39.99

$

Usually ships in 2-12 days

0

18

Ferris 5020986

PLUG, 1/2" NPT
(Superseded to 5020986FS)

$32.99

$

Usually ships in 2-12 days

0

19

Ferris 5022603

FITTING, 90 Deg. JIC #8
(Superseded to 5022603FS)

$27.99

$

Usually ships in 2-12 days

0

20

Ferris 5050857X7

HOSE, 7"
(Superseded to 5050857X7YP)

$8.99

$

Usually ships in 2-12 days

0

21

Ferris 5021356

FILTER HEAD
(Superseded to 5021356SM)

$61.99

$

Usually ships in 2-12 days

0

22

Ferris 5021357X1

FILTER, HYDRAULIC, SERVICE PART (PKG)

$31.99

$

Usually ships in 2-12 days

0

23

Ferris 5022602

FITTING, TEE, JIC #8, NPT

$26.99

$

Usually ships in 2-12 days

0

24

Ferris 5050857X38

HOSE, Hydraulic, 38"

$30.99

$

Usually ships in 2-12 days

0

25

Ferris 5050857X24

HOSE, Hydraulic, 24"
(Superseded to 5050857X24YP)

$21.99

$

Usually ships in 2-12 days

0
