IS 4000Z (5901065) - Ferris IS4000Z Series Zero-Turn Mower, 27hp Kawasaki Instrument & Control Panel Group Parts Diagram

IS4000Z Series Zero-Turn Mower, 27hp Kawasaki

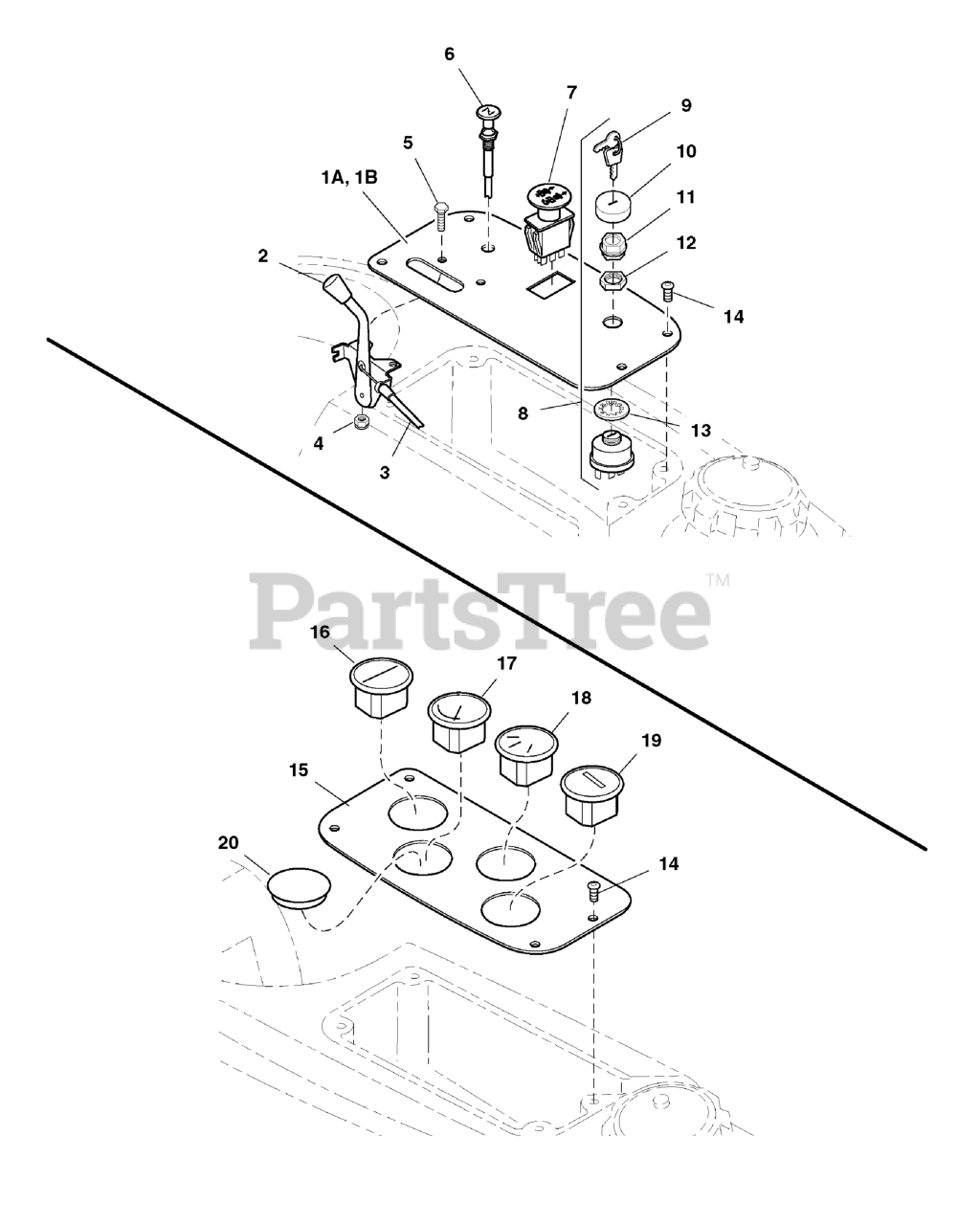

Instrument & Control Panel Group Parts Diagram

  • Title

1A

Ferris 5046600B

CONTROL PANEL-RH

$38.99

$

Usually ships in 2-12 days

0

1B

Ferris 5046254B

CONTROL PANEL-RH

Note: (IS4000Z/D31, S/N: 101 - 275 only)

$38.99

$

Usually ships in 2-12 days

0

2

Ferris 5046360

HANDLE, THROTTLE CONTROL

$55.99

$

In Stock, only 2 left!

0

3

Ferris 5046392

CABLE, Throttle Control, 47-1/2"

Note: (Briggs & Stratton Models)

$23.99

$

Usually ships in 2-12 days

0

3

Ferris 5046551

CABLE, Throttle Control
(Superseded to 5101074)

Note: (Kawasaki Models)

$33.99

$

In Stock, only 1 left!

0

4

Ferris 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 5

0

5

Ferris 5025010X6

BOLT, 1/4-20 x 3/4
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

6

Ferris 5046361

CABLE, Choke Control

Note: (Briggs & Stratton Models)

$53.99

$

In Stock, only 1 left!

0

6

Ferris 5046501

CABLE, Choke Control, 47"
(Superseded to 5046501SM)

Note: (Kawasaki Models)

$55.99

$

In Stock, only 1 left!

0

7

Ferris 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

8

Ferris 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

Note: (Includes Ref No. 9 - 13)

$33.99

$

In Stock, only 3 left!

0

9

Ferris 5022789

KEY, IGNITION MOLDED SET

$

$

Currently unavailable

10

Ferris 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

$4.49

$

In Stock, only 1 left!

0

11

Ferris 5022791

PLASTIC NUT
(Superseded to 5022791SM)

$3.49

$

In Stock, only 1 left!

0

12

Ferris 5022792

STEEL NUT

$2.49

$

Usually ships in 2-12 days

0

13

Ferris 5022793

WASHER

$

$

Not available

14

Ferris 5025299X4

SCREW, Allen Head, 1/4-20 x 1/2
(Superseded to 5106469)

$2.49

$

In Stock, Qty 15

0

15

Ferris 5046256B

PANEL, GAUGE CLUSTER (4)

$39.99

$

Usually ships in 2-12 days

0

16

Ferris 5022593

GAUGE, Warning, Oil/Temp
(Superseded to 5022593FS)

$189.99

$

Usually ships in 2-12 days

0

17

Ferris 5022483

GAUGE, Water Temperature

Note: (Briggs & Stratton Models)

$216.99

$

Usually ships in 2-12 days

0

18

Ferris 5022387

GAUGE, Voltmeter

$53.99

$

Usually ships in 2-12 days

0

19

Ferris 5020060

HOUR METER

$250.99

$

Usually ships in 2-12 days

0

20

Ferris 5022800

HOLE PLUG

Note: (Kawasaki Models)

$3.49

$

In Stock, only 4 left!

0
