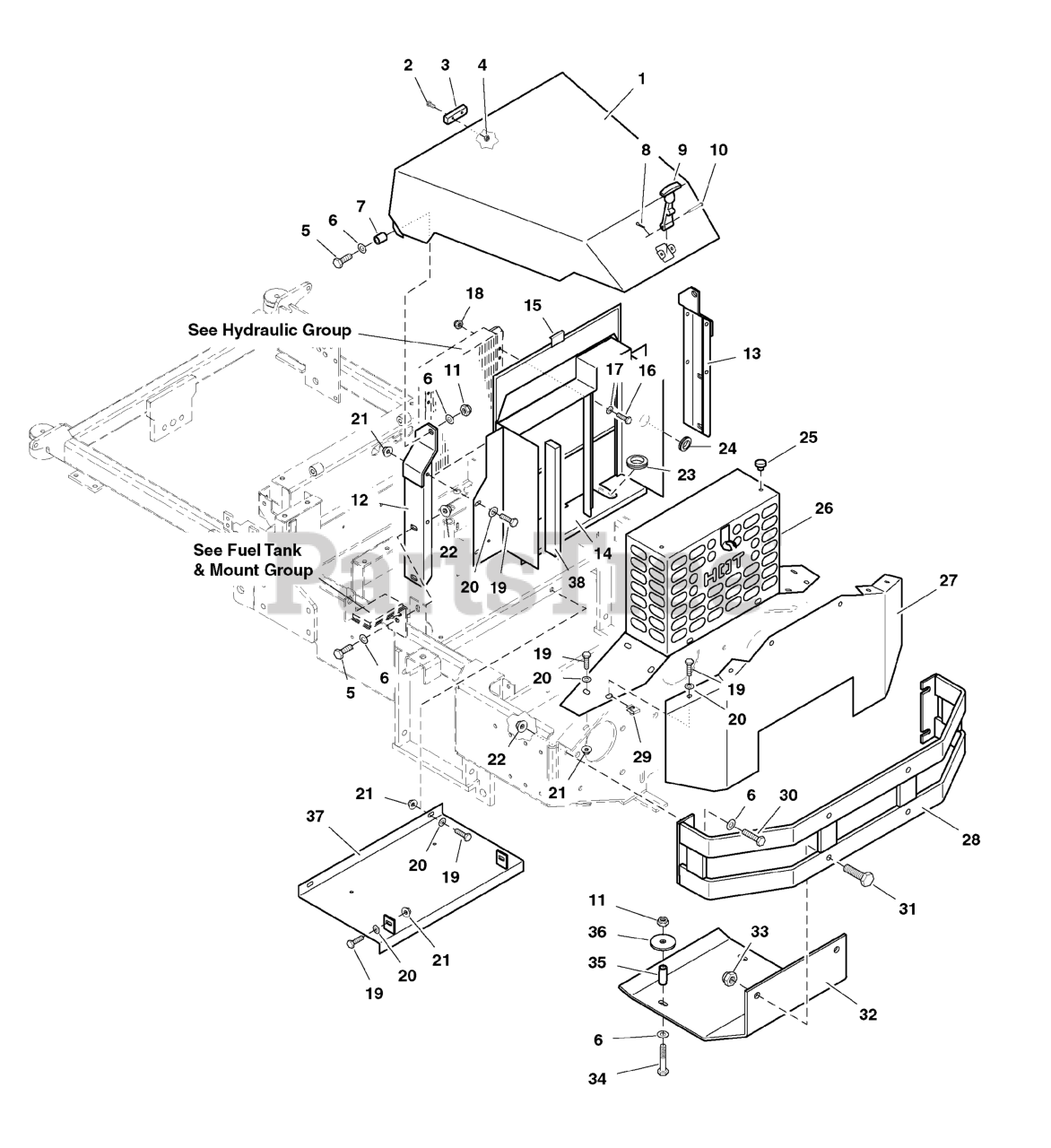

IS 4000Z (5901065) - Ferris IS4000Z Series Zero-Turn Mower, 27hp Kawasaki Hood, Bumper, & Shield Group Parts Diagram

IS4000Z Series Zero-Turn Mower, 27hp Kawasaki

Hood, Bumper, & Shield Group Parts Diagram

  • Title

1

Ferris 5046538B

ENGINE HOOD

$

$

Currently unavailable

2

Ferris 5025338X5

SCREW, #8-32 x 5/8
(Superseded to 5025338X5YP)

$3.49

$

Usually ships in 2-12 days

0

3

Ferris 5022809

RUBBER PAD

$

$

Currently unavailable

4

Ferris 5025339

NUT, #8-32 Hex Nylon Lock
(Superseded to 5025339YP)

$2.99

$

Usually ships in 2-12 days

0

5

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

6

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

7

Ferris 5041930

SPACER, .38 x .50 x .27
(Superseded to 5041930SM)

$4.99

$

Usually ships in 2-12 days

0

8

Ferris 5020841X5

COTTER PIN
(Superseded to 5020841X5FS)

$2.99

$

Usually ships in 2-12 days

0

9

Ferris 5020841X1

RUBBER LATCH
(Superseded to 5020841X1SM)

$23.99

$

Usually ships in 2-12 days

0

10

Ferris 5050841X4

PIN, Clevis

$

$

Currently unavailable

11

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

12

Ferris 5046244B

HOOD MOUNT-LH

$

$

Currently unavailable

13

Ferris 5046247B

HOOD MOUNT-RH

$100.99

$

Usually ships in 2-12 days

0

14

Ferris 5046522B

RADIATOR SHROUD

$

$

Currently unavailable

15

Ferris 5022370X6

RADIATOR SCREEN

$

$

Currently unavailable

16

Ferris 5025010X6

BOLT, 1/4-20 x 3/4
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

17

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

18

Ferris 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 5

0

19

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

20

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

21

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, only 4 left!

0

22

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

23

Ferris 5021397

GROMMET, 1-1/4"
(Superseded to 5021397SM)

$6.49

$

Usually ships in 2-12 days

0

24

Ferris 5021379

GROMMET, 7/8"
(Superseded to 5021379SM)

$6.99

$

Usually ships in 2-12 days

0

25

Ferris 5022807

RUBBER BUMPER
(Superseded to 5022807FS)

$8.49

$

Usually ships in 2-12 days

0

26

Ferris 5046537B

MUFFLER GUARD

$

$

Currently unavailable

27

Ferris 5046536B

REAR SHIELD

$

$

Currently unavailable

28

Ferris 5045778B

BUMPER

$398.99

$

Usually ships in 2-12 days

0

29

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

30

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

31

Ferris 5025018X12

BOLT, 1/2-20 X 1-1/2, GD5 CZ
(Superseded to 5025018X12FS)

$4.99

$

Usually ships in 2-12 days

0

32

Ferris 5046259B

SKID SHIELD

$60.99

$

Usually ships in 2-12 days

0

33

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

In Stock, only 2 left!

0

34

Ferris 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

In Stock, only 3 left!

0

35

Ferris 5044992

SPACER, .38 x .50 x 1.56
(Superseded to 5044992SM)

$5.99

$

In Stock, only 2 left!

0

36

Ferris 5025305

WASHER, 3/8 x 1-3/4
(Superseded to 5025305SM)

$3.99

$

In Stock, only 2 left!

0

37

Ferris 5046295B

DEBRIS SHIELD

$

$

Currently unavailable

38

Ferris 5050913X14

FOAM SEAL, 14"

$6.49

$

Usually ships in 2-12 days

0
