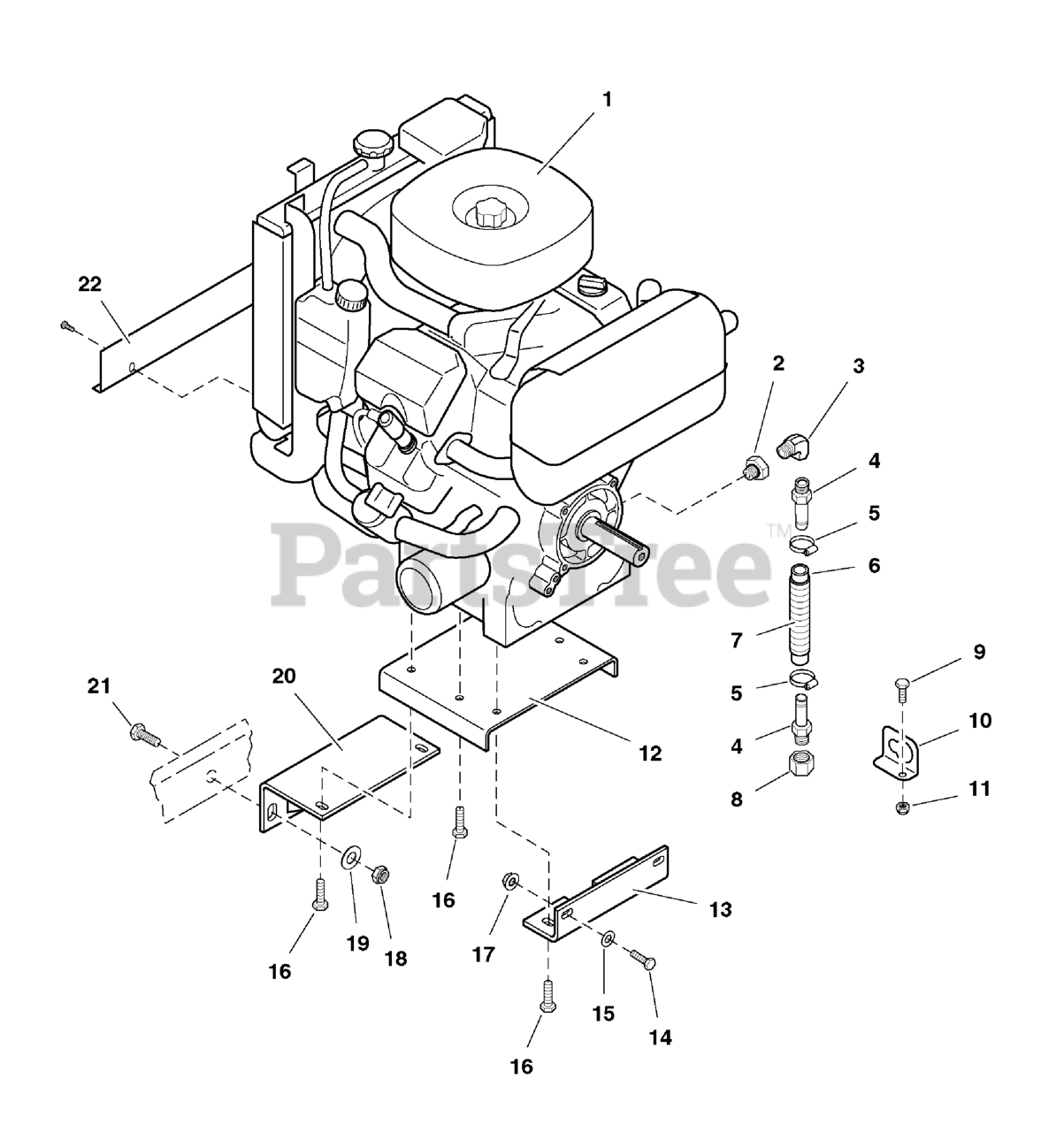

IS 4000Z (5901065) - Ferris IS4000Z Series Zero-Turn Mower, 27hp Kawasaki Engine & Mount Group - Kawasaki Parts Diagram

IS4000Z Series Zero-Turn Mower, 27hp Kawasaki

Engine & Mount Group - Kawasaki Parts Diagram

  • Title

1

ENGINE, Kawasaki (Model FD750V)

$

$

Not available

2

Ferris 5022801

FITTING, Oil Drain Adapter

$45.99

$

Usually ships in 2-12 days

0

3

Ferris 5022802

FITTING, 3/8NPT Elbow

$26.99

$

Usually ships in 2-12 days

0

4

Ferris 5021372

FITTING, 3/8NPT-1/2" Hose, Straight
(Superseded to 5021372SM)

$15.99

$

Usually ships in 2-12 days

0

5

Ferris 5021392

CLAMP, #6 Hose
(Superseded to 5021392SM)

$4.99

$

Usually ships in 2-12 days

0

6

Ferris 5050857X7

HOSE, 7"
(Superseded to 5050857X7YP)

$8.99

$

Usually ships in 2-12 days

0

7

Ferris 5050862X6

WIRE LOOM, 6"

$

$

Currently unavailable

8

Ferris 5021466

CAP, 3/8 NPT
(Superseded to 5021466SM)

$6.49

$

Usually ships in 2-12 days

0

9

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 20+

0

10

Ferris 5046166B

ANCHOR, Oil Drain

$

$

Currently unavailable

11

Ferris 5025057

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

12

Ferris 5046506B

PLATE, Engine Mount

$

$

Currently unavailable

13

Ferris 5046507B

SUPPORT, Engine Plate

$80.99

$

Usually ships in 2-12 days

0

14

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

15

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

16

Ferris 5025329

BOLT, M10 x 25MM

$

$

Currently unavailable

17

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

18

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

In Stock, only 2 left!

0

19

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 8

0

20

Ferris 5046630B

MOUNT, Engine Plate

$

$

Currently unavailable

21

Ferris 5025018X12

BOLT, 1/2-20 X 1-1/2, GD5 CZ
(Superseded to 5025018X12FS)

$4.99

$

Usually ships in 2-12 days

0

22

Ferris 5046529B

BAFFLE, Radiator

$53.99

$

Usually ships in 2-12 days

0
