IS 4000Z (5901063) - Ferris IS4000Z Series Zero-Turn Mower, 31hp Vanguard PTO Clutch & Anchor Group - 31HP - Later Models Parts Diagram

IS4000Z Series Zero-Turn Mower, 31hp Vanguard

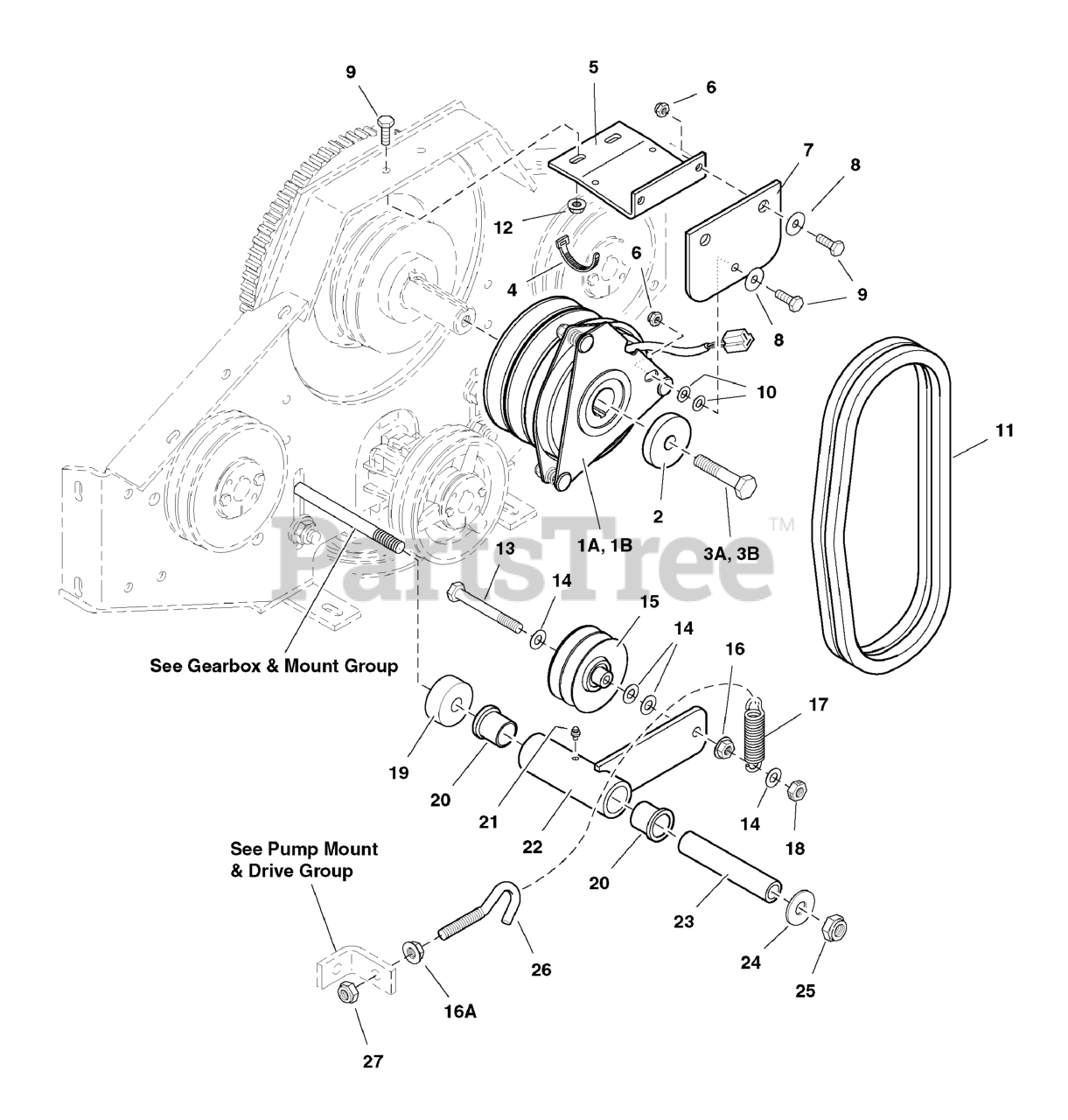

PTO Clutch & Anchor Group - 31HP - Later Models Parts Diagram

  • Title

1A

Ferris 5600213

KIT, CLUTCH & BOLT

Note: (S/N: 376 - 600)

$829.99

$

Usually ships in 2-12 days

0

1B

Ferris 5022873

ELECTRIC CLUTCH
(Superseded to 5600213)

Note: (S/N: 601 & above)

$829.99

$

Usually ships in 2-12 days

0

2

Ferris 5045475

SPACER, .45 x 1.88 x .38
(Superseded to 5045475SM)

$14.99

$

In Stock, only 1 left!

0

3A

Ferris 5043626

CRANKSHAFT BOLT, 7/16 x 3
(Superseded to 5102866)

Note: (S/N: 376 - 600)

$5.49

$

In Stock, only 1 left!

0

3B

Ferris 5047342

CRANKSHAFT BOLT, 7/16 x 3-1/2
(Superseded to 1960649SM)

Note: (S/N: 601 & above)

$7.49

$

In Stock, only 1 left!

0

4

Ferris 5021030

TIE WRAP
(Superseded to 5021030SM)

$2.99

$

In Stock, only 3 left!

0

5

Ferris 5046917B

CLUTCH ANCHOR

$

$

Currently unavailable

6

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

7

Ferris 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

In Stock, only 1 left!

0

8

Ferris 5025164

WASHER, 5/16" Fender
(Superseded to 5025164SM)

$3.99

$

In Stock, only 1 left!

0

9

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

10

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

11

Ferris 5022575

BELT, Clutch Drive (set of 2)
(Superseded to 5022575FS)

$60.99

$

In Stock, only 1 left!

0

12

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, only 4 left!

0

13

Ferris 5025013X24

BOLT, 3/8-16 X 3" GD5 CZ
(Superseded to 5025013X24SM)

$3.99

$

In Stock, only 1 left!

0

14

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

15

Ferris 5022797

PULLEY, Idler
(Superseded to 5022797YP)

$100.99

$

Usually ships in 2-12 days

0

16

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

16A

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

Note: (S/N: 436 & above)

$3.49

$

In Stock, only 2 left!

0

17

Ferris 1608395

SPRING, Extension

$15.99

$

Usually ships in 2-12 days

0

18

Ferris 5025100

NUT, 3/8-16 Hex Side Lock
(Superseded to 5025100SM)

$3.49

$

In Stock, Qty 20+

0

19

Ferris 5046916

SPACER, Clutch Idler
(Superseded to 5046916FS)

$27.99

$

Usually ships in 2-12 days

0

20

Ferris 5022250

BUSHING, Flange
(Superseded to 5022250SM)

$9.49

$

Usually ships in 2-12 days

0

21

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

22

Ferris 5046565B

CLUTCH DRIVE IDLER ARM
(Superseded to 5046565BFS)

$69.99

$

Usually ships in 2-12 days

0

23

Ferris 5045305

PIVOT SLEEVE, Long
(Superseded to 5045305SM)

$64.99

$

Usually ships in 2-12 days

0

24

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

25

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

26

Ferris 5025321

SCREW HOOK, 3/8-16 x 4-1/4
(Superseded to 5025321SM)

Note: (S/N: 436 & above)

$16.99

$

Usually ships in 2-12 days

0

27

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

Note: (S/N: 436 & above)

$3.49

$

In Stock, Qty 20+

0
