IS 4000Z (5901063) - Ferris IS4000Z Series Zero-Turn Mower, 31hp Vanguard Main Frame & Front Suspension Group Parts Diagram

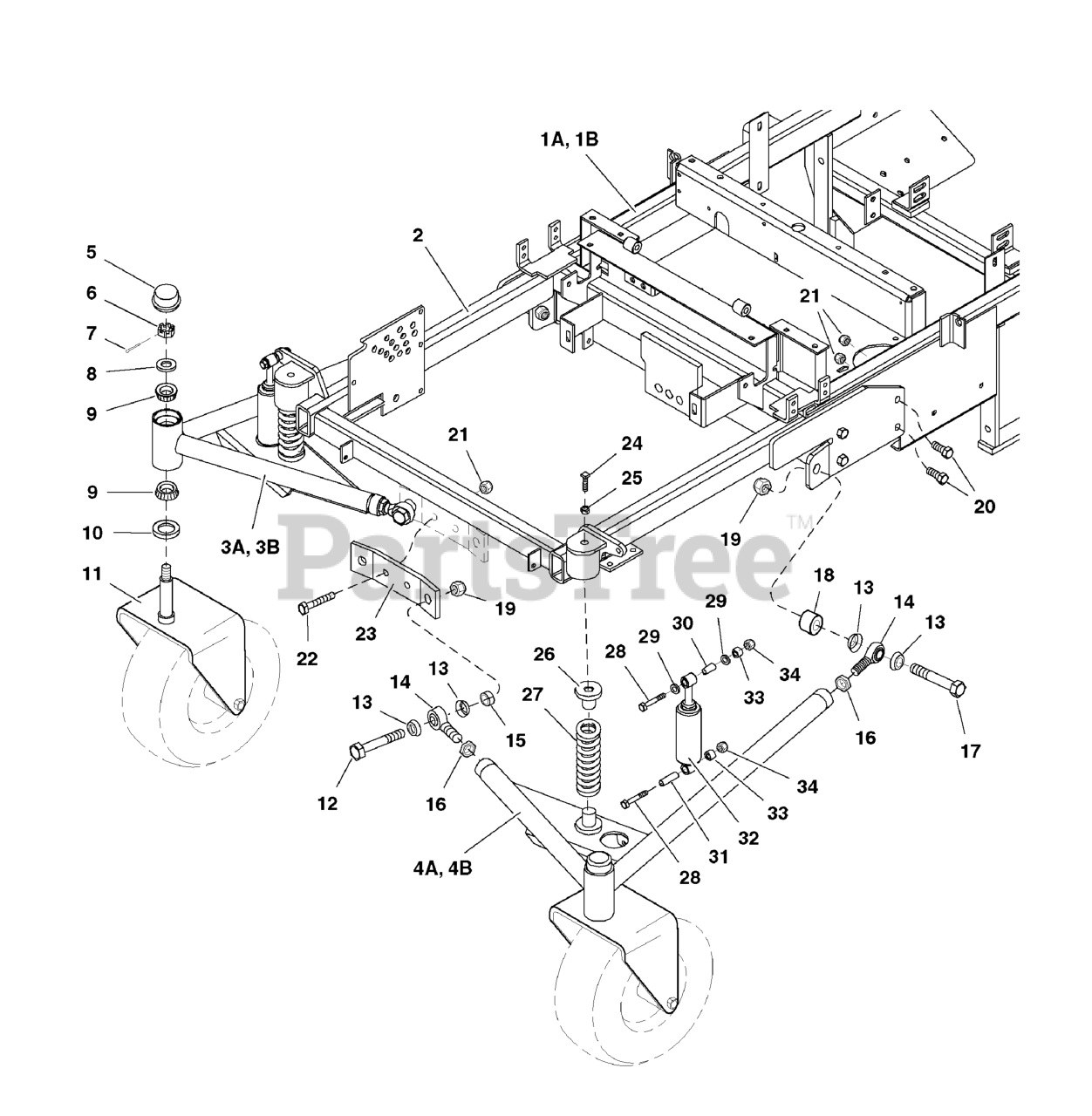

IS4000Z Series Zero-Turn Mower, 31hp Vanguard

Main Frame & Front Suspension Group Parts Diagram

  • Title

1A

Ferris 5046280B

MAIN FRAME

Note: (Briggs & Stratton Models, S/N: 101 - 275)

$

$

Currently unavailable

1B

Ferris 5046531B

MAIN FRAME

Note: (Briggs & Stratton Models - All / Kawasaki Models S/N: 321 & above)

$

$

Currently unavailable

2

Ferris 5046366B

FRONT FRAME

$

$

Currently unavailable

3A

Ferris 5046368B

SUSPENSION ARM-RH

Note: (Briggs & Stratton Models - All / Kawasaki Models S/N: 321 & above)

$507.99

$

Usually ships in 2-12 days

0

3B

Ferris 5046521B

SUSPENSION ARM-RH

Note: (Kawasaki Models, S/N: 101-320)

$484.99

$

Usually ships in 2-12 days

0

3C

Ferris 5020883

CUP, BEARING (SV)

Note: (Not illustrated)

$8.99

$

Usually ships in 2-12 days

0

4A

Ferris 5046367B

SUSPENSION ARM-LH

Note: (Briggs & Stratton Models - All / Kawasaki Models S/N: 321 & above)

$484.99

$

Usually ships in 2-12 days

0

4B

Ferris 5046520B

SUSPENSION ARM-LH

Note: (Kawasaki Models, S/N: 101-320)

$467.99

$

Usually ships in 2-12 days

0

4C

Ferris 5020883

CUP, BEARING (SV)

Note: (Not illustrated)

$8.99

$

Usually ships in 2-12 days

0

5

Ferris 5021073

CAP, DUST
(Superseded to 5021073SM)

$7.49

$

In Stock, Qty 6

0

6

Ferris 5025104

NUT, Hex, Slotted, 3/4-16
(Superseded to 5025104FS)

$5.49

$

In Stock, only 2 left!

0

7

Ferris 5025203X10

PIN, COTTER, 1/8 X 1-1/4
(Superseded to 5025203X10SM)

$3.99

$

In Stock, only 1 left!

0

8

Ferris 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$3.99

$

In Stock, Qty 7

0

9

Ferris 5020884

BEARING, TAPERED ROLLER, 1"
(Superseded to 5020884SM)

$25.99

$

In Stock, Qty 20+

0

10

Ferris 5021072

SEAL, GREASE
(Superseded to 5021072SM)

$7.49

$

In Stock, Qty 5

0

11

Ferris 5045769B

CASTER TIRE MOUNT
(Superseded to 5600096)

$127.99

$

In Stock, only 1 left!

0

12

Ferris 5025265X24

BOLT, 3/4-16 X 3" YZ GD5
(Superseded to 5025265X24SM)

$13.99

$

In Stock, only 2 left!

0

13

Ferris 5022111

SEAL, 3/4" ROD END
(Superseded to 5022111SM)

$15.99

$

In Stock, Qty 8

0

14

Ferris 5022039

BALL JOINT, 3/4-16, MALE
(Superseded to 5022039SM)

$37.99

$

In Stock, Qty 13

0

15

Ferris 5046092

SPACER, .76 X 1.00 X .50, CZ
(Superseded to 5046092SM)

$5.99

$

In Stock, only 1 left!

0

16

Ferris 5025093

NUT, Hex, Jam, 3/4-16
(Superseded to 5025093SM)

$4.49

$

In Stock, only 1 left!

0

17

Ferris 5025265X32

BOLT, 3/4-16 X 4" YZ GD5
(Superseded to 5025265X32SM)

$4.99

$

Usually ships in 2-12 days

0

18

Ferris 5046093

SPACER, .75 X 1.50 X 1.00, CZ
(Superseded to 5046093SM)

$10.99

$

Usually ships in 2-12 days

0

19

Ferris 5025284

NUT, Hex, Nylon Lock, 3/4-16
(Superseded to 5025284SM)

$3.49

$

In Stock, only 3 left!

0

20

Ferris 5025017X10

BOLT, 1/2-13 X 1-1/4 GD5 CZ
(Superseded to 5025017X10YP)

$3.99

$

Usually ships in 2-12 days

0

21

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

In Stock, only 2 left!

0

22

Ferris 5025018X14

BOLT, 1/2-20 X 1-3/4" GD8 CZ
(Superseded to 5025018X14FS)

$2.99

$

Usually ships in 2-12 days

0

23

Ferris 5046060B

PLATE, Suspension Arm Support

$23.99

$

Usually ships in 2-12 days

0

24

Ferris 5025315

SET SCREW, Square Head, 1/2-13 x 2-1/2

$

$

Currently unavailable

25

Ferris 5025301

NUT, Hex, Jam, 1/2-13
(Superseded to 5025301SM)

$3.49

$

In Stock, only 1 left!

0

26

Ferris 5045898

SPRING RETAINER

$

$

Currently unavailable

27

Ferris 5022323

SPRING, SUSPENSION

$71.99

$

Usually ships in 2-12 days

0

28

Ferris 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

In Stock, only 3 left!

0

29

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

30

Ferris 5044959

SPACER, .38 x .50 x 1.00
(Superseded to 5044959FS)

$3.49

$

Usually ships in 2-12 days

0

31

Ferris 5044992

SPACER, .38 x .50 x 1.56
(Superseded to 5044992SM)

$5.99

$

In Stock, only 2 left!

0

32

Ferris 5021687

SHOCK ABSORBER

$170.99

$

Usually ships in 2-12 days

0

33

Ferris 5044933

SPACER, .39 X .75 X .38, PM, CZ
(Superseded to 5044933SM)

$4.99

$

In Stock, only 2 left!

0

34

Ferris 5025100

NUT, Hex, Side Lock, 3/8-16
(Superseded to 5025100SM)

$3.49

$

In Stock, Qty 20+

0
