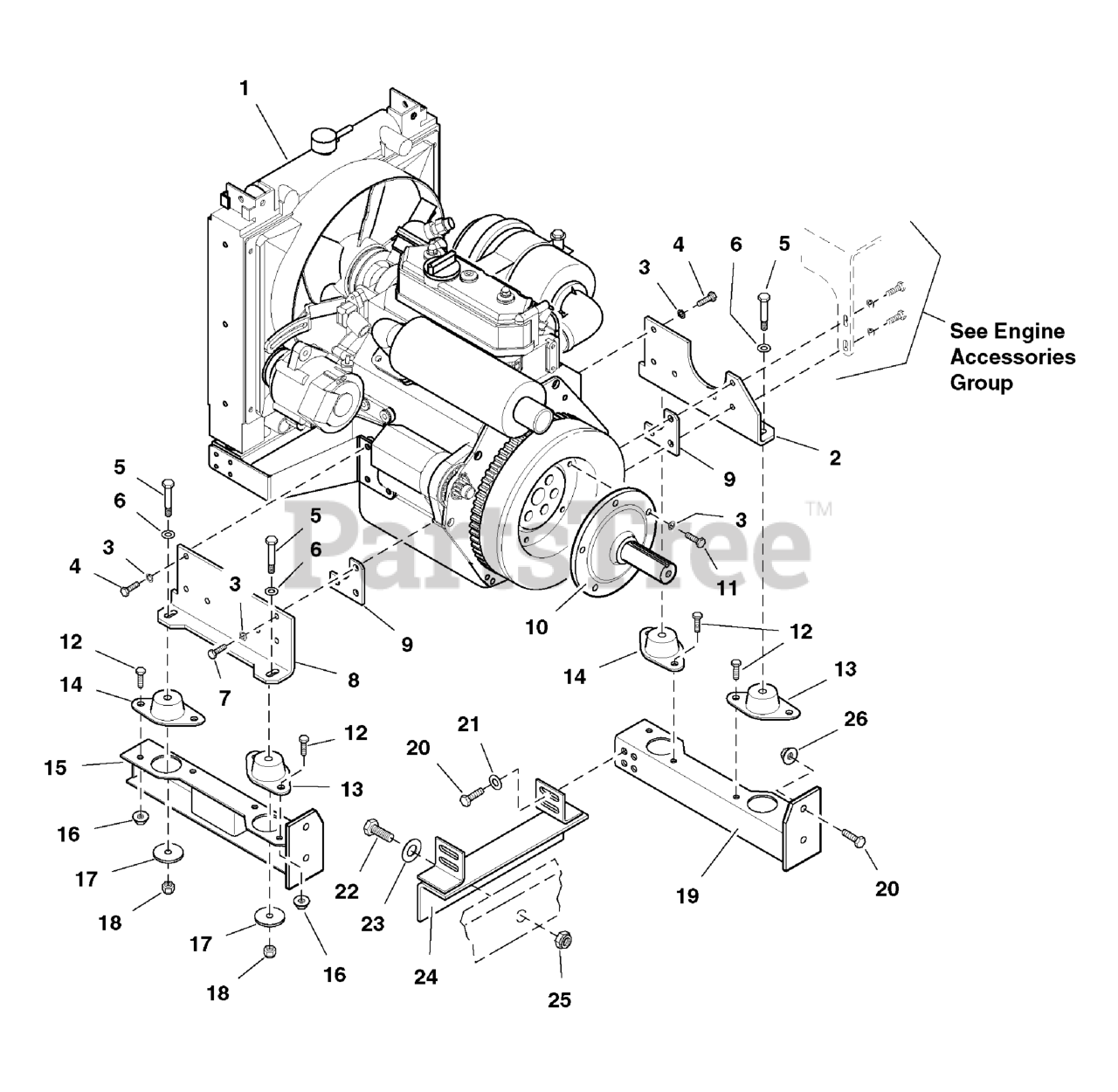

IS 4000Z (5901063) - Ferris IS4000Z Series Zero-Turn Mower, 31hp Vanguard Engine & Mount Group - Briggs & Stratton (Later Models) Parts Diagram

IS4000Z Series Zero-Turn Mower, 31hp Vanguard

Engine & Mount Group - Briggs & Stratton (Later Models) Parts Diagram

  • Title

1

ENGINE, Briggs & Stratton, Gas (Model 950 G)

$

$

Not available

2

Ferris 5046908

ENGINE MOUNT-RH

$

$

Currently unavailable

3

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

In Stock, only 2 left!

0

4

Ferris 5025245

BOLT, M8 x 30MM

$2.49

$

Usually ships in 2-12 days

0

5

Ferris 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

In Stock, only 3 left!

0

6

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

7

Ferris 5025237X25

BOLT, M8-1.25 X 25MM GR 8.8
(Superseded to 5025237X25YP)

$3.99

$

Usually ships in 2-12 days

0

8

Ferris 5046907

ENGINE MOUNT-LH

$

$

Currently unavailable

9

Ferris 5046252B

SPACER, Engine Mount

$3.49

$

Usually ships in 2-12 days

0

10

Ferris 5022370X8

STUB SHAFT

$

$

Not available

11

Ferris 5025249

BOLT, M8 x 20MM
(Superseded to 5025249YP)

$2.99

$

Usually ships in 2-12 days

0

12

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

13

Ferris 5022804

ENGINE MOUNT, Rubber, #215

$

$

Currently unavailable

14

Ferris 5022573

ENGINE MOUNT, Rubber, #150

$111.99

$

Usually ships in 2-12 days

0

15

Ferris 5046913B

ENGINE MOUNT RAIL-LH

$

$

Currently unavailable

16

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, Qty 7

0

17

Ferris 5022574

WASHER, Iso Mount

$11.99

$

Usually ships in 2-12 days

0

18

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

19

Ferris 5046914B

ENGINE MOUNT RAIL-RH

$

$

Currently unavailable

20

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 5

0

21

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

22

Ferris 5025018X12

BOLT, 1/2-20 X 1-1/2, GD5 CZ
(Superseded to 5025018X12FS)

$4.99

$

Usually ships in 2-12 days

0

23

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 8

0

24

Ferris 5046619B

MOUNT, Engine

$29.99

$

Usually ships in 2-12 days

0

25

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

In Stock, only 2 left!

0

26

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0
