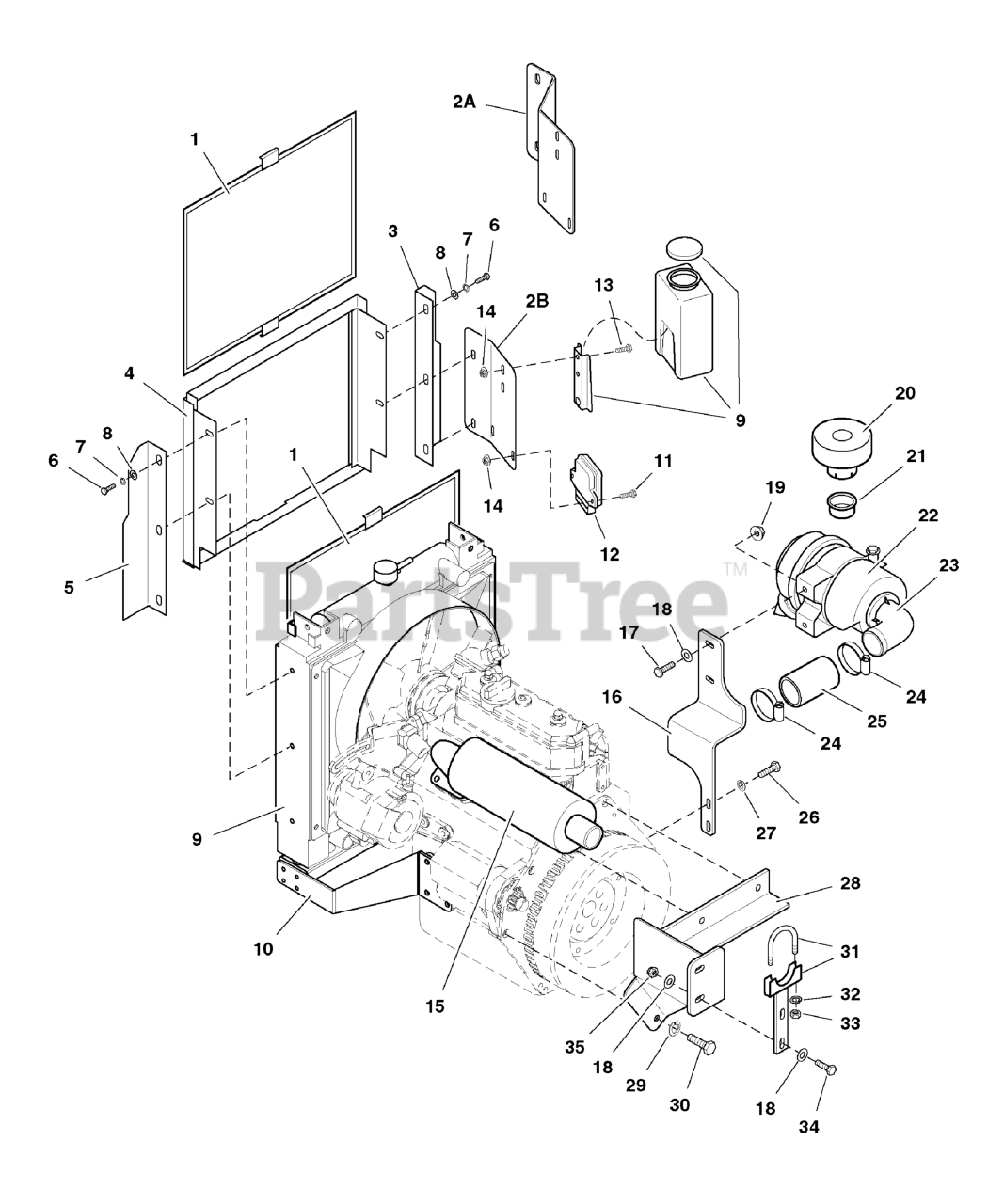

IS 4000Z (5901063) - Ferris IS4000Z Series Zero-Turn Mower, 31hp Vanguard Engine Accessories Group Parts Diagram

IS4000Z Series Zero-Turn Mower, 31hp Vanguard

Engine Accessories Group Parts Diagram

  • Title

1

Ferris 5022370X6

RADIATOR SCREEN

$

$

Currently unavailable

2A

Ferris 5046515B

MOUNT, Overflow Bracket

Note: (hood support-mounted)

$

$

Currently unavailable

2B

Ferris 5046233B

MOUNT, Overflow Bracket

Note: (radiator-mounted)

$

$

Currently unavailable

3

Ferris 5046478B

AIR BAFFLE-RH

$

$

Currently unavailable

4

Ferris 5046234B

RADIATOR COVER

$

$

Currently unavailable

5

Ferris 5046477B

AIR BAFFLE-LH

$

$

Currently unavailable

6

CAPSCREW, Hex Hd, M6 x 15mm

$

$

Not available

7

Ferris 5025169

WASHER, 1/4 LOCK
(Superseded to 5025169FS)

$3.99

$

In Stock, only 4 left!

0

8

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

9

RADIATOR & OVERFLOW KIT (835004)

$

$

Not available

10

RADIATOR SUPPORT KIT (834003)

$

$

Not available

11

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

12

IGNITION MODULE

$

$

Not available

13

Ferris 5025010X6

BOLT, 1/4-20 x 3/4
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

14

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

15

MUFFLER (835029)

$

$

Not available

15

ADAPTER (835025)

$

$

Not available

16

Ferris 5046389B

SUPPORT, Air Cleaner

$30.99

$

Usually ships in 2-12 days

0

17

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

18

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

19

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, only 4 left!

0

20

Ferris 5022591

PRE-CLEANER

$154.99

$

In Stock, only 2 left!

0

21

Ferris 5022592

ADAPTER INSERT

$40.99

$

Usually ships in 2-12 days

0

22

AIR CLEANER MOUNT BRACKET (835009)

$

$

Not available

23

AIR CLEANER (835008)

$

$

Not available

24

HOSE CLAMP

$

$

Not available

25

INLET HOSE (835038)

$

$

Not available

26

Ferris 5025335

BOLT, M8 x 35MM
(Superseded to 5025335SM)

$3.49

$

Usually ships in 2-12 days

0

27

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

28

Ferris 5046585B

SUPPORT, Muffler

$153.99

$

Usually ships in 2-12 days

0

29

Ferris 5025336

WASHER, 10MM Lock
(Superseded to 5025336YP)

$2.99

$

Usually ships in 2-12 days

0

30

Ferris 5025333

BOLT, M10 x 30MM

$

$

Currently unavailable

31

Ferris 5046587B

MUFFLER CLAMP, Complete

Note: (Includes Ref No. 30 & 31)

$

$

Currently unavailable

32

Ferris 5025169

WASHER, 1/4 LOCK
(Superseded to 5025169FS)

$3.99

$

In Stock, only 4 left!

0

33

Ferris 5025030

NUT, 1/4-20 Hex
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

34

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

35

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0
