IS 3200Z (5901833) - Ferris IS3200Z Series Zero-Turn Mower, 37hp Briggs & Stratton Seat Mount and Floor Group S/N: 4000875836 and Below Parts Diagram

IS3200Z Series Zero-Turn Mower, 37hp Briggs & Stratton

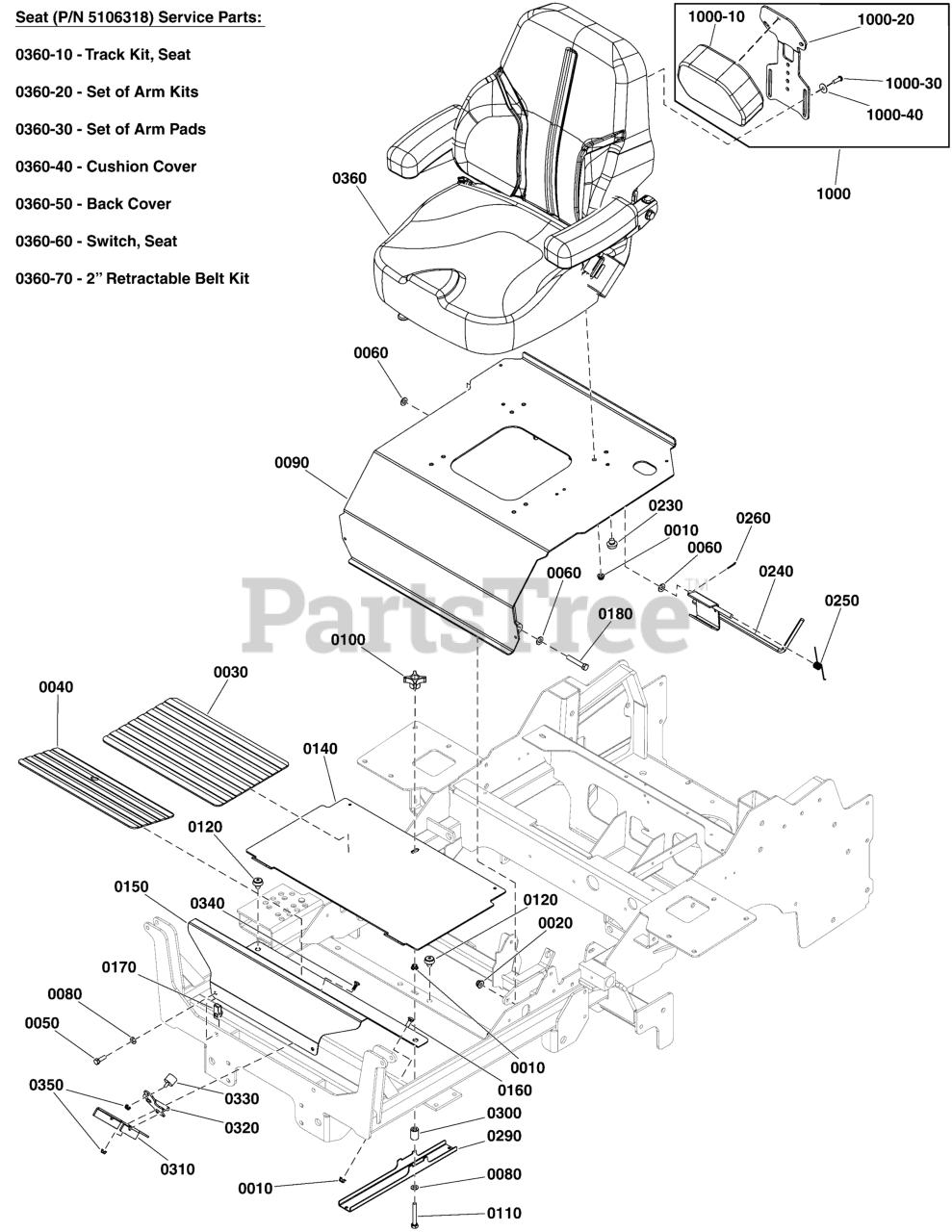

Seat Mount and Floor Group S/N: 4000875836 and Below Parts Diagram

  • Title

0010

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0020

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0030

Ferris 5101333

SAFETY WALK, FLOOR PLATE, S50X, 10X17.13
(Superseded to 5101333YP)

$37.99

$

Usually ships in 2-12 days

0

0040

Ferris 5107580

SAFETY WALK, FLOOR, 6.00 X 16.00 X .75
(Superseded to 5107580FS)

$13.99

$

Usually ships in 2-12 days

0

0050

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

0060

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0080

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0090

Ferris 5601203

ASSM, SEAT PLATE W/ DECALS, IS3200-CEHYD

$398.99

$

Usually ships in 2-12 days

0

0100

Ferris 1670578

KNOB-INT THR .312-18 4-ARM 2.12WD 1.06LG
(Superseded to 1670578SM)

$13.99

$

In Stock, only 1 left!

0

0110

Ferris 5025055X20

BOLT, 5/16-18 X 2-1/2 GD5 TFL, CZ
(Superseded to 5025055X20FS)

$7.49

$

Usually ships in 2-12 days

0

0120

Ferris 197546

MNT, VBRTN, RBBR
(Superseded to 197546GS)

$7.99

$

In Stock, only 2 left!

0

0140

Ferris 5412905B

PLATE, FLOOR, REMOVABLE, IS3100Z - RED
(Superseded to 5412905BFS)

$103.99

$

Usually ships in 2-12 days

0

0150

Ferris 5419103B

PLATE, FRONT FLOOR, IS3200-HYD - RED
(Superseded to 5419103BFS)

$85.99

$

Usually ships in 2-12 days

0

0160

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

0170

Ferris 5025452

BODY CLIP, 5/16-18 -1/4 MATERIAL
(Superseded to 5025452YP)

$5.49

$

Usually ships in 2-12 days

0

0180

Ferris 5025013X18

BOLT, 3/8-16 X 2-1/4" GD5 CZ
(Superseded to 5025013X18SM)

$3.99

$

Usually ships in 2-12 days

0

0230

Ferris 5106763

BUMPER, RUBBER, 5/16-18, 60 DURO
(Superseded to 84003201)

$8.99

$

In Stock, only 3 left!

0

0240

Ferris 5418223A

WELD, SEAT LATCH HOOK - BLACK
(Superseded to 84002142)

$35.99

$

Usually ships in 2-12 days

0

0250

Ferris 5106644

SPRING, TORSION, LH, .0625OD
(Superseded to 84003202)

$2.49

$

Usually ships in 2-12 days

0

0260

Ferris 80002736

PIN, 3/32 X 0.750, COT, ZINC/CLEAR
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

0290

Ferris 5418803B

PLATE, WIRE CHANNEL, 3200 BUMPER

$17.99

$

Usually ships in 2-12 days

0

0300

Ferris 5045404

SPACER .32 X .75 X 1.06
(Superseded to 5045404SM)

$7.49

$

Usually ships in 2-12 days

0

0310

Ferris 5419102B

MOUNT, FLOOR SWITCH, IS3200-HYD - RED
(Superseded to 5419102BFS)

$17.99

$

Usually ships in 2-12 days

0

0320

Ferris 5409963B

WELD, PLUNGER SWITCH BRACKET - RED
(Superseded to 5409963BFS)

$19.99

$

Usually ships in 2-12 days

0

0330

Ferris 5022673

BUMPER, RUBBER, 1/4-20
(Superseded to 5022673SM)

$18.99

$

In Stock, only 1 left!

0

0340

Ferris 80003518

BOLT,1/4-20X0.750,GR5,STD NECK,SQ,ZC/CL
(Superseded to 703575)

$3.99

$

In Stock, only 1 left!

0

0350

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

0360

Ferris 5106318

SEAT, HIGH BACK, W/SWITCH & SEAT BELTS
(Superseded to 84006078)

$1186.99

$

Usually ships in 2-12 days

0

0360-10

Ferris 5106318X1

4" SINGLE LOCKING TRACK KIT

Note: (SV)

$160.99

$

Usually ships in 2-12 days

0

0360-20

Ferris 5106325X2

SET OF ARM KITS

Note: (SV)

$284.99

$

Usually ships in 2-12 days

0

0360-30

Ferris 5106325X3

SET OF ARM PADS

Note: (SV)

$122.99

$

Usually ships in 2-12 days

0

0360-40

Ferris 5106318X4

CUSHION COVER FOR E-DELUXE

Note: (SV)

$281.99

$

Usually ships in 2-12 days

0

0360-50

Ferris 5106318X3

MID BACK COVER - E-DELUXE

Note: (SV)

$278.99

$

Usually ships in 2-12 days

0

0360-60

Ferris 7023354

SWITCH, SEAT
(Superseded to 7023354YP)

Note: (SV)

$12.99

$

In Stock, Qty 20+

0

0360-70

Ferris 5106318X2

2" RETRACTABLE SEAT BELT KIT

Note: (SV)

$142.99

$

Usually ships in 2-12 days

0

1000

Ferris 5601135

KIT, HEAD REST
(Superseded to 84003643)

$161.99

$

Usually ships in 2-12 days

0

1000-10

Ferris 5106645

HEAD REST HIGH BACK SEAT
(Superseded to 5106645FS)

Note: (SV)

$101.99

$

Usually ships in 2-12 days

0

1000-20

Ferris 5418483A

PLATE, MOUNTING BRACKET, HEADREST - BLK

Note: (SV)

$71.99

$

Usually ships in 2-12 days

0

1000-30

Ferris 5025652

SCREW, 5/16-18X1, BUT HD, BLK, W/PATCH
(Superseded to 84003203)

Note: (SV)

$2.99

$

Usually ships in 2-12 days

0

1000-40

Ferris 5107404

WASHER, FENDER, 1.00 OD X .315 ID X .055
(Superseded to 84001871)

Note: (SV)

$2.49

$

Usually ships in 2-12 days

0
