IS 3200Z (5901833) - Ferris IS3200Z Series Zero-Turn Mower, 37hp Briggs & Stratton Parking Brake Group Parts Diagram

IS3200Z Series Zero-Turn Mower, 37hp Briggs & Stratton

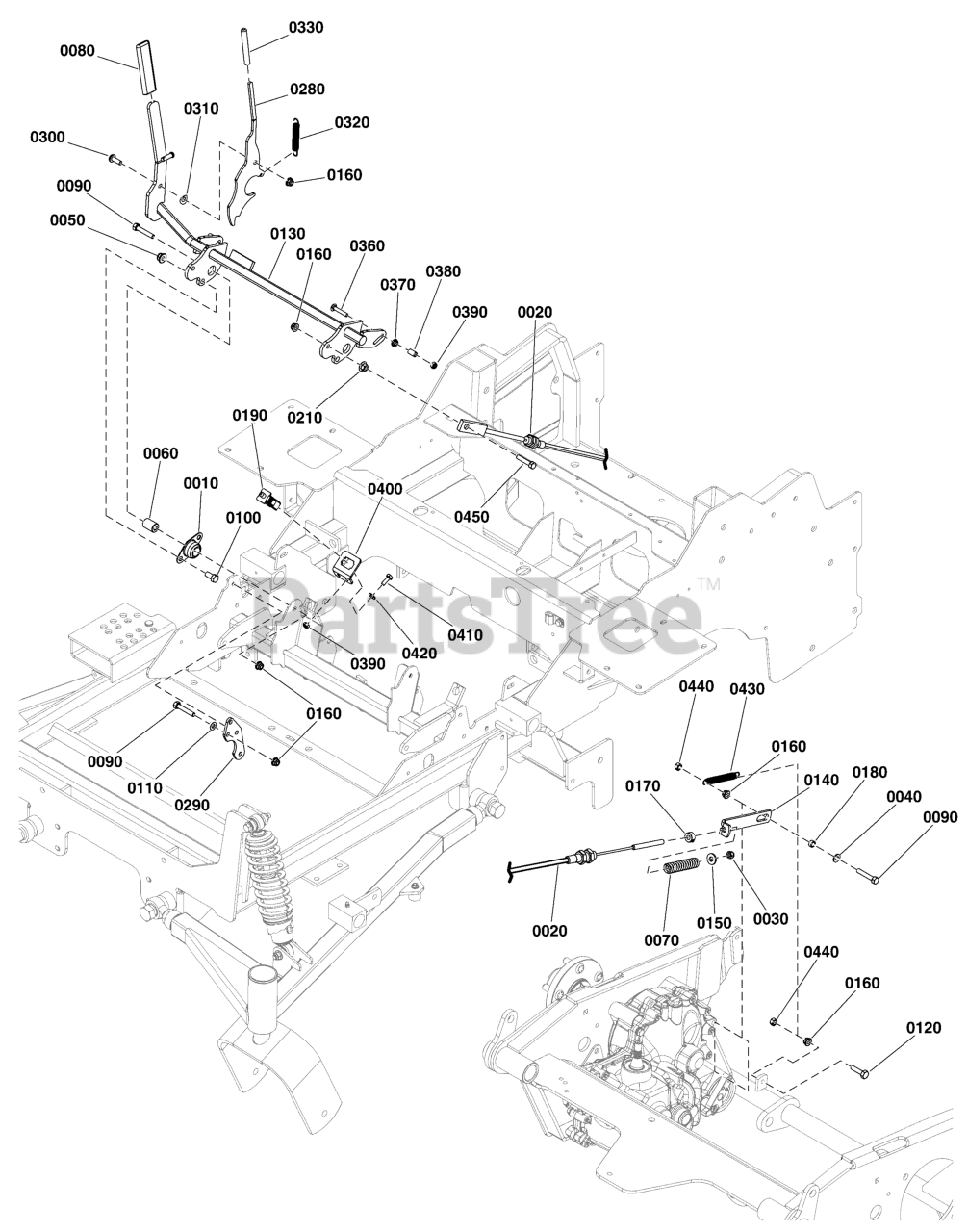

Parking Brake Group Parts Diagram

  • Title
0010

Ferris 5021098

BEARING, BRONZE FLANGE, 3/4"
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 5

0

0020

Ferris 5104235

CABLE, PARKING BRAKE, 32"
(Superseded to 5104235YP)

$101.99

$

Usually ships in 2-12 days

0

0030

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

0040

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0050

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0060

Ferris 5042134

SPACER, .32 X .75 X 1.06, PM
(Superseded to 5042134SM)

$6.49

$

In Stock, only 1 left!

0

0070

Ferris 5100385

SPRING, COMP. 1/2 ID X .140 WIRE X 3.25
(Superseded to 5100385YP)

$9.49

$

Usually ships in 2-12 days

0

0080

Ferris 5025510

GRIP, FOAM, 1/4 X 1 X 4.1
(Superseded to 5025510SM)

$6.49

$

In Stock, Qty 12

0

0090

Ferris 5025011X14

BOLT, 5/16-18 X 1-3/4" GD5 YZ
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 20+

0

0100

Ferris 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

0110

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, only 4 left!

0

0120

Ferris 5025055X10

BOLT, 5/16-18 X 1-1/4 GD5 TFL, CZ
(Superseded to 5025055X10YP)

$3.49

$

Usually ships in 2-12 days

0

0130

Ferris 5416139A

WELD, HANDLE, BRAKE, IS3200 CE - BLK

$

$

Currently unavailable

0140

Ferris 5411363A

LINK, BRAKE LOCK - BLK

$

$

Currently unavailable

0150

Ferris 5025337

WASHER, 5/16" USS
(Superseded to 5025337FS)

$3.99

$

Usually ships in 2-12 days

0

0160

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0170

Ferris 5020047

COLLAR, 5/16" Set
(Superseded to 5020047SM)

$7.49

$

In Stock, only 1 left!

0

0180

Ferris 5102463

SPACER, .33 X .50 X .25, PM, CZ
(Superseded to 5102463YP)

$5.49

$

Usually ships in 2-12 days

0

0190

Ferris 7022886

SWITCH, DP NO/NC SNAP-IN
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

0210

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

0280

Ferris 5416148A

LEVER, BRAKE, IS3200CE - BLK

$

$

Currently unavailable

0290

Ferris 5416146A

PLATE, PIVOT MNT, IS3200 CE - BLK

$

$

Currently unavailable

0300

Ferris 1960086

SCREW, TRUSS HD TORX DR5/16-18X0.875 BLK
(Superseded to 1960086SM)

$4.99

$

In Stock, only 2 left!

0

0310

Ferris 5023202

WASHER,WAVE,M10
(Superseded to 5023202SM)

$5.49

$

Usually ships in 2-12 days

0

0320

Ferris 5020639

SPRING-EXT, .500 OD X 3.50 LG X .058 WR
(Superseded to 5020639SM)

$31.99

$

Usually ships in 2-12 days

0

0330

Ferris 5023198

COVER, VINYL HANDLE
(Superseded to 5023198SM)

$4.49

$

In Stock, only 2 left!

0

0360

Ferris 80003564

BOLT, 1/4-20 X 1.500, GR5, SQ, ZINC/CLEAR
(Superseded to 704214)

$3.99

$

Usually ships in 2-12 days

0

0370

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

0380

Ferris 5041483

SPACER, .52 X .38 X .63, CZ
(Superseded to 5041483YP)

$5.49

$

Usually ships in 2-12 days

0

0390

Ferris 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 5

0

0400

Ferris 5415932A

TAB, SWITCH PLATE, BOLT-ON - BLK

$7.49

$

Usually ships in 2-12 days

0

0410

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

0420

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0430

Ferris 5103969

SPRING, EXTENSION, .521 X 4.12, BLACK
(Superseded to 5103969YP)

$14.99

$

Usually ships in 2-12 days

0

0440

Ferris 80003675

NUT, 5/16-1/8, HEX, CNTR LK, ZINC PHOS/OIL
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

0450

Ferris 5025011X12

BOLT, 5/16-18 X 1-1/2" GD5 YZ
(Superseded to 5025011X12SM)

$3.99

$

In Stock, only 2 left!

0
