IS 3200Z (5901832) - Ferris IS3200Z Midnight Series 61" Zero-Turn Mower, 37hp Briggs & Stratton Wheel and Tire Group Parts Diagram

IS3200Z Midnight Series 61" Zero-Turn Mower, 37hp Briggs & Stratton

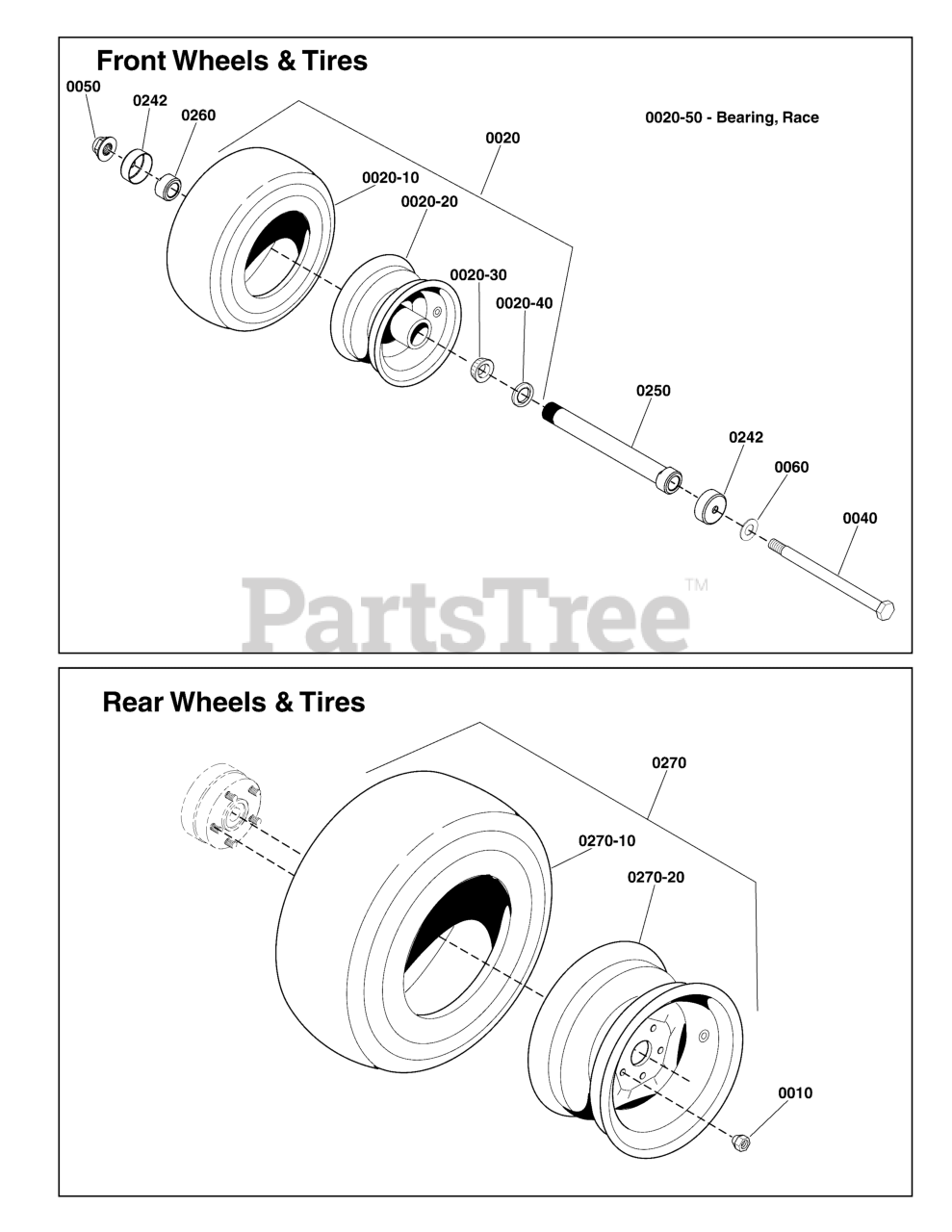

Wheel and Tire Group Parts Diagram

  • Title

0010

Ferris 5106987

LUG NUT, 1/2-20, CHROME
(Superseded to 5106987FS)

$3.49

$

Usually ships in 2-12 days

0

0020

Ferris 5106753

TIRE ASM, 13X6.5-6, CHROME
(Superseded to 5106753FS)

$210.99

$

Usually ships in 2-12 days

0

0020-10

Ferris 5022577

TIRE, RUBBER ONLY

$

$

Currently unavailable

0020-20

WHEEL

Note: (Not available for sale. Refer to Complete Tire Assembly)

$

$

Not available

0020-30

Ferris 5022631SX2

BEARING, Tapered Roller
(Superseded to 5022631SX2SM)

Note: (2 per tire)

$12.99

$

In Stock, Qty 20+

0

0020-40

Ferris 5022631SX3

SEAL, GREASE
(Superseded to 5022631SX3SM)

Note: (2 per tire)

$9.99

$

In Stock, Qty 20+

0

0020-50

Ferris 5022631SX4

BEARING, RACE
(Superseded to 5022631SX4SM)

Note: (Not illustrated)

$10.99

$

In Stock, Qty 20+

0

0040

Ferris 5025017X72

BOLT, 1/2-13 X 9" GD5 YZ
(Superseded to 5025017X72YP)

$11.99

$

In Stock, Qty 19

0

0050

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

0060

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 8

0

0242

Ferris 5103594

DEBRIS, COVER, CASTER WHEELS
(Superseded to 5103594YP)

$4.49

$

In Stock, Qty 13

0

0250

Ferris 5103649

BEARING ADJUSTER, SPACER, 7.062 LG
(Superseded to 5103649YP)

$23.99

$

In Stock, Qty 18

0

0260

Ferris 5103650

NUT, BEARING ADJUSTER, AXLE
(Superseded to 5103650YP)

$16.99

$

In Stock, Qty 13

0

0270

Ferris 5106751

TIRE ASM, 26X12-12, K502, CHROME
(Superseded to 5106751FS)

$586.99

$

Usually ships in 2-12 days

0

0270-10

Ferris 5106751X1

TIRE, K502, 26 X 12-12

$235.99

$

Usually ships in 2-12 days

0

0270-20

Ferris 5106751X2

WHEEL, 12" 8.5, 5 HOLES X 4.5 BC CHROME

$293.99

$

Usually ships in 2-12 days

0
