IS 3200Z (5901832) - Ferris IS3200Z Midnight Series 61" Zero-Turn Mower, 37hp Briggs & Stratton Seat Mount and Floor Group Parts Diagram

IS3200Z Midnight Series 61" Zero-Turn Mower, 37hp Briggs & Stratton

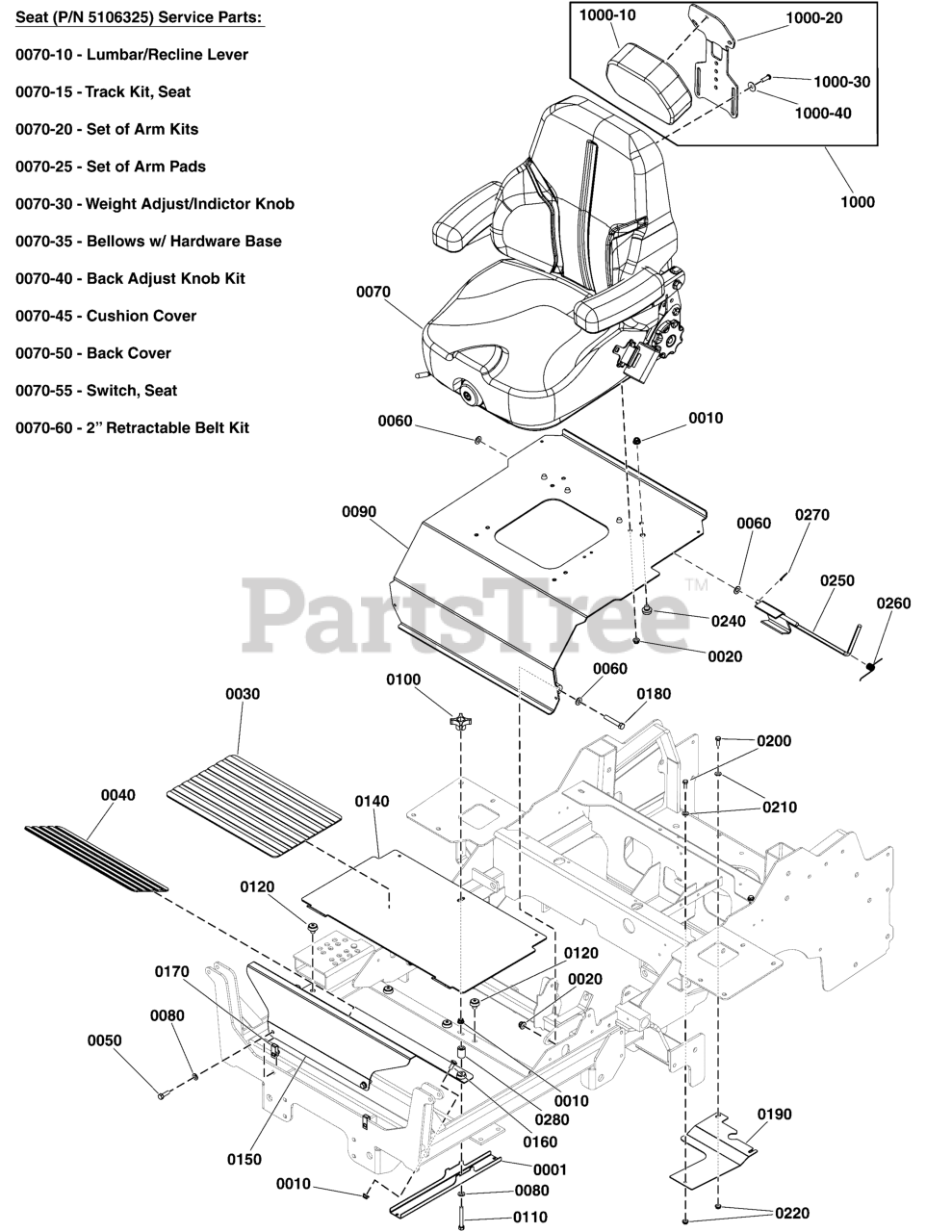

Seat Mount and Floor Group Parts Diagram

  • Title

0001

Ferris 5418803AB

PLATE, WIRE CHANNEL, 3200 BUMPER - BLK

$

$

Currently unavailable

0010

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0020

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0030

Ferris 5101333

SAFETY WALK, FLOOR PLATE, S50X, 10X17.13
(Superseded to 5101333YP)

$37.99

$

Usually ships in 2-12 days

0

0040

Ferris 5101374

SAFETY WALK, FLOOR REST, 16.00 X 6.00
(Superseded to 5101374YP)

$18.99

$

In Stock, only 1 left!

0

0050

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

0060

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0070

Ferris 5106325

SEAT, HIGH BACK, SUSP, SWITCH&SEAT BELTS
(Superseded to 5108194)

$1432.99

$

Usually ships in 2-12 days

0

0070-10

Ferris 5105099X2

LUMBAR/RECLINE/ISO LVR W/ RLL PIN BS

Note: (SV)

$40.99

$

Usually ships in 2-12 days

0

0070-15

Ferris 5104720X1

4" SINGLE LOCKING TRACKS BASE

Note: (SV)

$148.99

$

Usually ships in 2-12 days

0

0070-20

Ferris 5106325X2

SET OF ARM KITS

Note: (SV)

$284.99

$

Usually ships in 2-12 days

0

0070-25

Ferris 5106325X3

SET OF ARM PADS

Note: (SV)

$122.99

$

Usually ships in 2-12 days

0

0070-30

Ferris 5104720X2

WEIGHT ADJUST INDICATOR KNOB ASSY BASE

Note: (SV)

$85.99

$

Usually ships in 2-12 days

0

0070-35

Ferris 5104720X3

BELLOWS W/ HARDWARE BASE

Note: (SV)

$100.99

$

Usually ships in 2-12 days

0

0070-40

Ferris 5106325X4

BACK ADJUSTMENT KNOB KIT

Note: (SV)

$40.99

$

Usually ships in 2-12 days

0

0070-45

Ferris 5106325X6

CUSHION COVER FORM I3M, 314659VN584

Note: (SV)

$272.99

$

Usually ships in 2-12 days

0

0070-50

Ferris 5106325X1

SEAT BACK COVER, 314658VN584
(Superseded to 84003213)

Note: (SV)

$311.99

$

Usually ships in 2-12 days

0

0070-55

Ferris 7023354

SWITCH, SEAT
(Superseded to 7023354YP)

Note: (SV)

$12.99

$

In Stock, Qty 20+

0

0070-60

Ferris 5106325X5

2" RETRACTABLE BELT KIT

Note: (SV)

$142.99

$

Usually ships in 2-12 days

0

0080

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0090

Ferris 5601202

ASSM, SEAT PLATE W/ DECALS, MDNT AUS

$

$

Currently unavailable

0100

Ferris 1670578

KNOB-INT THR .312-18 4-ARM 2.12WD 1.06LG
(Superseded to 1670578SM)

$13.99

$

In Stock, only 1 left!

0

0110

Ferris 5025055X20

BOLT, 5/16-18 X 2-1/2 GD5 TFL, CZ
(Superseded to 5025055X20FS)

$7.49

$

Usually ships in 2-12 days

0

0120

Ferris 197546

MNT, VBRTN, RBBR
(Superseded to 197546GS)

$7.99

$

In Stock, only 2 left!

0

0140

Ferris 5412905AB

PLATE, FLOOR, REMOVABLE, IS3200Z - BLK
(Superseded to 5412905ABFS)

$160.99

$

Usually ships in 2-12 days

0

0150

Ferris 5412908AB

PLATE, FRONT FLOOR, IS3200Z - BLK
(Superseded to 5412908ABFS)

$142.99

$

Usually ships in 2-12 days

0

0160

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

0170

Ferris 5025452

BODY CLIP, 5/16-18 -1/4 MATERIAL
(Superseded to 5025452YP)

$5.49

$

Usually ships in 2-12 days

0

0180

Ferris 5025013X18

BOLT, 3/8-16 X 2-1/4" GD5 CZ
(Superseded to 5025013X18SM)

$3.99

$

Usually ships in 2-12 days

0

0190

Ferris 5417762A

GUARD, DEBRIS, IS3200Z - BLK
(Superseded to 84003200)

$25.99

$

Usually ships in 2-12 days

0

0200

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

0210

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0220

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

0240

Ferris 5106763

BUMPER, RUBBER, 5/16-18, 60 DURO
(Superseded to 84003201)

$8.99

$

In Stock, only 3 left!

0

0250

Ferris 5418223A

WELD, SEAT LATCH HOOK - BLACK
(Superseded to 84002142)

$35.99

$

Usually ships in 2-12 days

0

0260

Ferris 5106644

SPRING, TORSION, LH, .0625OD
(Superseded to 84003202)

$2.49

$

Usually ships in 2-12 days

0

0270

Ferris 80002736

PIN, 3/32 X 0.750, COT, ZINC/CLEAR
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

0280

Ferris 5045404

SPACER .32 X .75 X 1.06
(Superseded to 5045404SM)

$7.49

$

Usually ships in 2-12 days

0

1000

Ferris 5601135

KIT, HEAD REST
(Superseded to 84003643)

$161.99

$

Usually ships in 2-12 days

0

1000-10

Ferris 5106645

HEAD REST HIGH BACK SEAT
(Superseded to 5106645FS)

$101.99

$

Usually ships in 2-12 days

0

1000-20

Ferris 5418483A

PLATE, MOUNTING BRACKET, HEADREST - BLK

$71.99

$

Usually ships in 2-12 days

0

1000-30

Ferris 5025652

SCREW, 5/16-18X1, BUT HD, BLK, W/PATCH
(Superseded to 84003203)

$2.99

$

Usually ships in 2-12 days

0

1000-40

Ferris 5107404

WASHER, FENDER, 1.00 OD X .315 ID X .055
(Superseded to 84001871)

$2.49

$

Usually ships in 2-12 days

0
