IS 3200Z (5901832) - Ferris IS3200Z Midnight Series 61" Zero-Turn Mower, 37hp Briggs & Stratton Rear Bumper and ROPS Group Parts Diagram

IS3200Z Midnight Series 61" Zero-Turn Mower, 37hp Briggs & Stratton

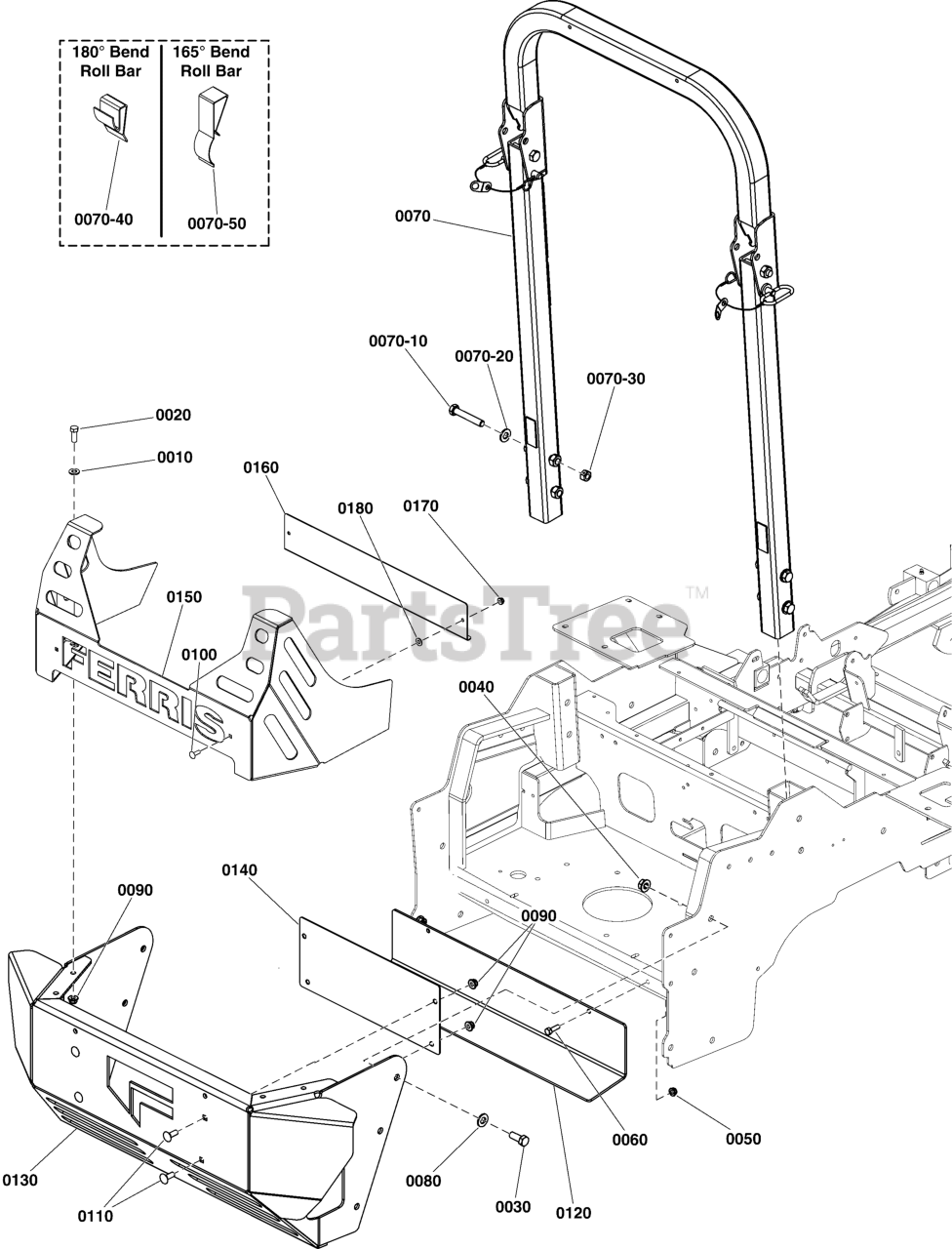

Rear Bumper and ROPS Group Parts Diagram

  • Title

0010

Ferris 5025293

WASHER, 3/8" GR. 9 FLAT
(Superseded to 5025293SM)

$3.99

$

In Stock, Qty 5

0

0020

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 5

0

0030

Ferris 5025017X10

BOLT, 1/2-13 X 1-1/4 GD5 CZ
(Superseded to 5025017X10YP)

$3.99

$

Usually ships in 2-12 days

0

0040

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

0050

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0060

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

0070

ROPS, IS3200

Note: (Call 1-800-933-6175 ex.707 for ROPS service)

$

$

Not available

0070-10

Ferris 5025017X24

BOLT, 1/2-13 X 3" GD5 CZ
(Superseded to 5025017X24SM)

$5.99

$

In Stock, only 1 left!

0

0070-20

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 14

0

0070-30

Ferris 5025332

NUT, 1/2-13 Hex Side Lock
(Superseded to 5025332SM)

$3.49

$

In Stock, Qty 12

0

0070-40

Ferris 5103403X1

ANTI-RATTLE SPRING, FEMCO #230328972 (SV)

Note: (180 Degree Bend Roll Bar)

$4.49

$

Usually ships in 2-12 days

0

0070-50

Ferris 5105140X1

ANTI-RATTLE SPRING, ROPS, 165 DEGREE (SV)

Note: (165 Degree Bend Roll Bar)

$5.99

$

Usually ships in 2-12 days

0

0080

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 14

0

0090

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0100

Ferris 5025654

BOLT CARRIAGE 1/4-20X3/4 GR 5 ZNCOAT BLK
(Superseded to 5025654FS)

$2.49

$

Usually ships in 2-12 days

0

0110

Ferris 5025657

BOLT CARRIAGE 3/8-16X1 GR 5 ZNCOAT BLK

$

$

Currently unavailable

0120

Ferris 5418827A

PLATE, HEAT SHIELD, IS3200 - BLK

$

$

Currently unavailable

0130

Ferris 5418766A

WELD, REAR BUMPER BASE, 3200 - BLK
(Superseded to 5418766AFS)

$901.99

$

Usually ships in 2-12 days

0

0140

Ferris 5418840B

PLATE, HIGHTLIGHT, REAR F LOGO - RED
(Superseded to 5418840BFS)

$20.99

$

Usually ships in 2-12 days

0

0150

Ferris 5418765A

WELD, BUMPER, ENG GUARD, 3200 - BLK
(Superseded to 5418765AFS)

$509.99

$

Usually ships in 2-12 days

0

0160

Ferris 5418777B

PLATE, HIGHTLIGHT,REAR BUMPER,3200 - RED

$

$

Currently unavailable

0170

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

0180

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0
