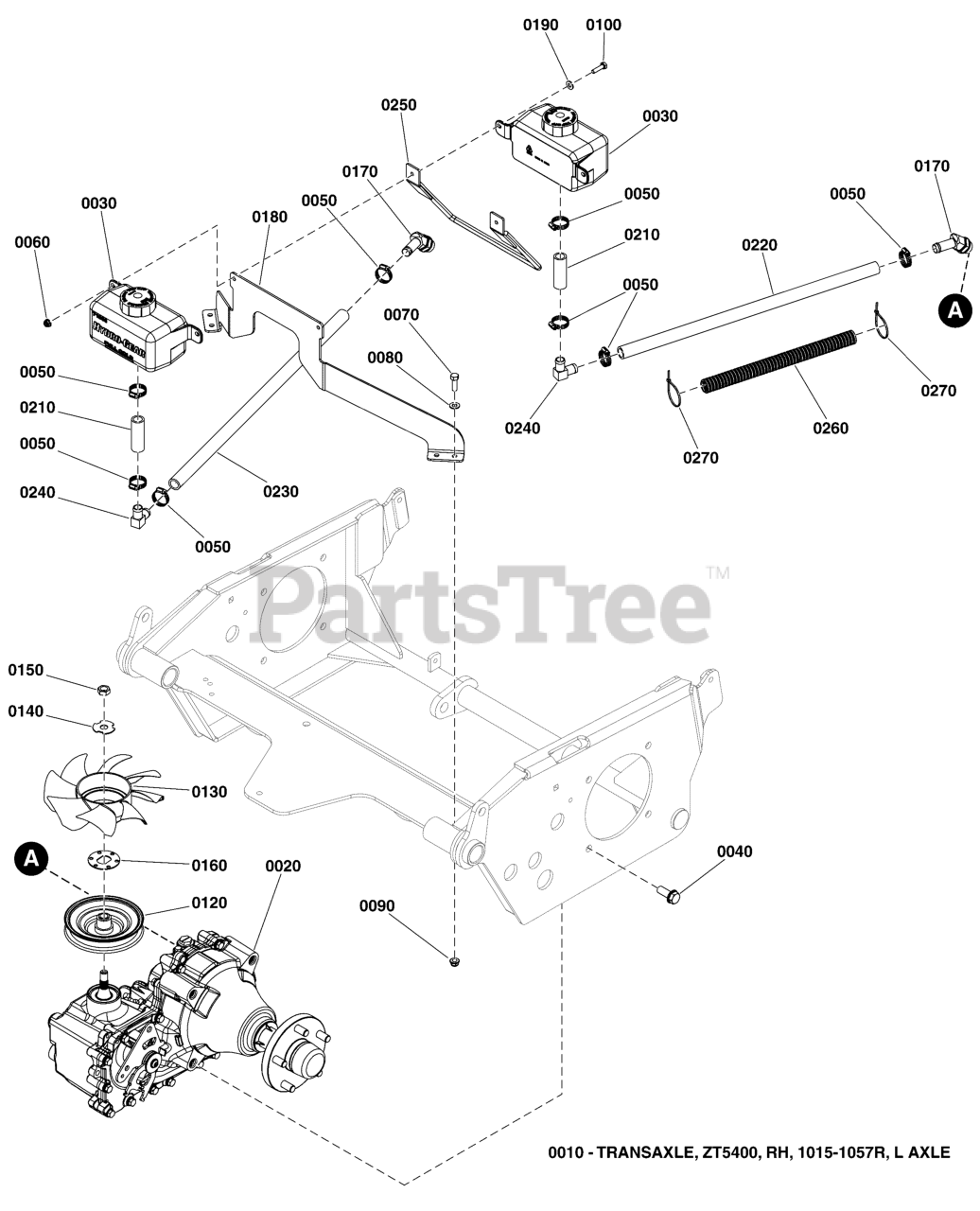

IS 3200Z (5901576) - Ferris IS3200Z Series 72" Zero-Turn Mower, 37hp Briggs & Stratton Hydraulic Group S/N: 4002026249 and Below Parts Diagram

IS3200Z Series 72" Zero-Turn Mower, 37hp Briggs & Stratton

Hydraulic Group S/N: 4002026249 and Below Parts Diagram

  • Title

0010

Ferris 84008008

TRANSAXLE

Note: (Right side)(Not illustrated)

$2336.99

$

Usually ships in 2-12 days

0

0020

Ferris 84008001

TRANSAXLE

Note: (Left side)

$2222.99

$

Usually ships in 2-12 days

0

0030

Ferris 5101998

HYDRO TANK, HYDRO-GEAR 71938, 1 LITER
(Superseded to 5101998YP)

Note: (Includes item #0030-10)

$68.99

$

In Stock, only 2 left!

0

0030-10

Ferris 5100778X1

RESERVIOR CAP

Note: (Not illustrated)

$20.99

$

Usually ships in 2-12 days

0

0040

Ferris 5025535

BOLT,HEX FLG,SER,GD8 1/2-13X1-1/4W/PATCH
(Superseded to 5025535YP)

Note: (Torque transmission mounting bolts to 95-115 ft-lbs (129-156 Nm))

$7.99

$

Usually ships in 2-12 days

0

0050

Ferris 5021164

CLAMP, #10 HOSE, STAINLESS
(Superseded to 5021164SM)

$3.99

$

In Stock, only 1 left!

0

0060

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

0070

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

0080

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0090

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0100

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

0120

Ferris 5102873

PULLEY, ZT5400 (53179)
(Superseded to 5102873YP)

$88.99

$

Usually ships in 2-12 days

0

0130

Ferris 5102874

FAN, ZT5400
(Superseded to 5102874YP)

$27.99

$

In Stock, only 2 left!

0

0140

Ferris 5102914

WASHER, ZT5400, SLOTTED
(Superseded to 5102914YP)

$3.99

$

In Stock, only 1 left!

0

0150

Ferris 5102916

NUT, ZT5400
(Superseded to 5102916YP)

$3.49

$

In Stock, only 1 left!

0

0160

Ferris 5102917

SPACER, ANTI-ROTATE, ZT5400
(Superseded to 5102917YP)

$5.99

$

In Stock, only 1 left!

0

0170

Ferris 5103923

FITTING, 45, 5/8 TUBE TO 7/8-14 O-RING
(Superseded to 5103923YP)

$22.99

$

Usually ships in 2-12 days

0

0180

Ferris 5416042A

PLATE, RESERVOIR MOUNT - BLK

$

$

Not available

0190

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0210

Ferris 5050933X2P5

HOSE, 5/8, PUSH-LOCK, 2.50

$6.49

$

Usually ships in 2-12 days

0

0220

Ferris 5050933X20P5

HOSE, 5/8, PUSH-LOCK, 20.50

$17.99

$

Usually ships in 2-12 days

0

0230

Ferris 5050933X23P5

HOSE, 5/8" PUSH-LOCK, 23.50"
(Superseded to 5050933X23P5YP)

$40.99

$

Usually ships in 2-12 days

0

0240

Ferris 5023119

FITTING, ELBOW, 5/8" (SV)

$

$

Currently unavailable

0250

Ferris 5419495AA

WELD, HOSE SUPPORT - BLK
(Superseded to 84003481)

Note: (S/N: 4000464004 & Above)

$41.99

$

Usually ships in 2-12 days

0

0260

Ferris 5050862X12

WIRE LOOM, 3/4 ID X 12 IN
(Superseded to 5050862X12SM)

Note: (S/N: 4000464004 & Above)

$4.49

$

Usually ships in 2-12 days

0

0270

Ferris 5021030

TIE, SELF-LOCKING, 6"
(Superseded to 5021030SM)

Note: (S/N: 4000464004 & Above)

$2.99

$

In Stock, only 3 left!

0
